KVV22 Type Steel Tap Armoured Control Cable , Copper Core Power Control Cable

Categories Flexible Control Cable
Brand Name: Chengtiantai cable
Model Number: KVV22
Certification: CCC, ISO
Place of Origin: Shenzhen, China (mainland)
MOQ: 1000 m
Price: On request
Payment Terms: L/C, T/T
Delivery Time: 7/ 15 Working days
Packaging Details: Steel wooden drum
Category: Control cable
Rated Voltage: 450/750 Volts
Armored type: Double steel tape
Insulation: PVC compound
sheath: PVC compound
Package: Steel wooden Drum
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

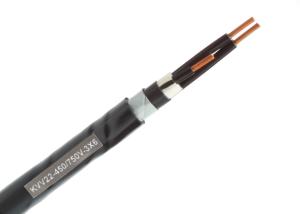

    KVV22 Type Steel Tap Armoured Control Cable , Copper Core Power Control Cable

    Copper Core PVC Insulated and Sheathed steel tap armored Control Cable


    Application


    In dry and moist rooms for medium mechanical stresses. Outdoors only when protected. Not in water. As supply and interconnecting cable for control and electronic instruments. For control equipments on machine tools assembly lines, conveyors and production lines for controlling, regulating and monotoring work processes, industrial plants and production lines when temporarily freely moved and no periodic recurrence without forced guidance. Cross sections above 10 mm² are energy supply cable for fixed installations on machine tools in production lines.


    STANDARDS/REFERENCES:

    • International: IEC 60227-5
    • National: GB/T 9330-2008

    APPLICATION RANGE:

    • Plant construction
    • Machine building
    • Heating and air-conditioning systems
    • Power plant engineering
    • Dry or damp rooms that are subject to medium mechanical loads

    CONSTRUCTION CHARACTERISTICS
    CONDUCTOR:

    • bear copper class 1 according to IEC 60228 (solid conductors)
    • bear copper class 2 according to IEC 60228 (stranded conductors)

    INSULATION:

    • PVC (Polyvinyl Chloride)
    • Core Identification : black cores with continuous white numbering

    INNER SHEATH:

    • PVC-Inner sheath

    ARMOR TYPE:

    • Amouring of galvanized steel tape

    OUTER SHEATH:

    • PVC-Outer sheath
    • Sheath colour : black

    DIMENSIONAL CHARACTERISTICS
    [Number of cores ]: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
    [Conductor size] : 1.0, 1.5, 2.5, 4, 6, 10 mm2
    TECHNICAL DATA

    [Rated voltage (Uo/U) ]: 450/750V
    [Test voltage ]:3000 V
    USAGE CHARACTERISTICS

    [Maximum operating temperature] : 70 ℃
    [Short-circuit max conductor temperature ( duration up to 5s ) ]:160 ℃
    [Temperature range]: -5 to +70 ℃
    INSTALLATION CONDITION
    [Installation temperature ]: 5 ℃
    [Minimum bending radius ]: 12 X cable diameter
    [Recommended maximum tensile stress]: 50 N/mm2



    Cable Dimensions


    Number of cores x Cross-sec.

    Outer

    diameter

    Weight

    approx.

    Base

    Unit

    Price
    (base price)
    No. x mm2mmkg/ km--
    3x2.515.2328.0mPrice on request
    3x417.3437.0mPrice on request
    3x619.0578.0mPrice on request
    4x2.514.4413.0mPrice on request
    4x415.4496.0mPrice on request
    4x616.8619.5mPrice on request
    4x1021.1955.4mPrice on request
    5x1.514.7346.0mPrice on request
    5x2.515.4463.0mPrice on request
    5x416.5566.6mPrice on request
    5x618.5740.6mPrice on request
    5x1022.81118.2mPrice on request
    7x113.1346.6mPrice on request
    7x1.514.1426.4mPrice on request
    7x2.516.8551.1mPrice on request
    7x417.6686.5mPrice on request
    7x619.8908.8mPrice on request
    7x1024.61399.0mPrice on request
    8x113.8378.4mPrice on request
    8x1.515.4471.6mPrice on request
    8x2.516.4608.2mPrice on request
    8x419.1788.4mPrice on request
    8x621.11013.4mPrice on request
    8x1026.41570.7mPrice on request
    10x117.4449.0mPrice on request
    10x1.518.5558.0mPrice on request
    10x2.520.2760.2mPrice on request
    10x421.8956.6mPrice on request
    10x623.81230.2mPrice on request
    10x1032.41976.1mPrice on request
    12x115.8482.7mPrice on request
    12x1.517.8607.8mPrice on request
    12x2.521.0843.4mPrice on request
    12x422.41064.3mPrice on request
    12x624.91388.6mPrice on request
    14x116.4525.8mPrice on request
    14x1.519.0692.7mPrice on request
    14x2.521.6922.9mPrice on request
    14x423.41182.3mPrice on request
    14x6568.91542.3mPrice on request
    16x117.0568.9mPrice on request
    16x1.519.8754.5mPrice on request
    16x2.522.61013.4mPrice on request
    19x11.1652.4mPrice on request
    19x1.520.6836.4mPrice on request
    19x2.523.61136.2mPrice on request
    24x120.4783.5mPrice on request
    24x1.523.41014.3mPrice on request
    24x2.527.01388.4mPrice on request
    27x120.8835.7mPrice on request
    27x1.523.81085.1mPrice on request
    27x2.527.51797.2mPrice on request
    30x121.4894.3mPrice on request
    30x1.524.61166.7mPrice on request
    30x2.528.41617.7mPrice on request
    37x122.71027.5mPrice on request
    37x1.526.21352.8mPrice on request
    37x2.533.42372.1mPrice on request
    44x125.012188.4mPrice on request
    44x1.529.61612.8mPrice on request
    44x2.537.22749.2mPrice on request
    48x125.41255.4mPrice on request
    48x1.532.42125.2mPrice on request
    45x2.537.72928.8mPrice on request
    52x126.01329.6mPrice on request
    52x1.533.22242.3mPrice on request
    52x2.538.63099.6mPrice on request
    61x134.82497.1mPrice on request
    62 x1.540.63480.1mPrice on request

    * [Standard delivery length]: cut to length


    Payment terms

    T/T, 30% deposit before production, 70% balance before delivery

    Packaging & Delivery


    Packaging detailsDelivery
    Steel Wooden DrumsCable Drum In containershipped in 15 days after payment

    Cable Drum Data


    CABLE DRUMSD1=Flange Diameter(mm)W=Useful Width (mm)D2=Barrel Diameter(mm)
    1000700500
    1100700550
    1200700600
    1400750710
    1600900900
    180011201000
    240011501300

    Delivery Port:


    Port of ShenzhenPort of HongkongPort of Guangzhou
