3D Carving Wood Sculpture CNC Router Machine 8 Heads / CNC Wood Router

Categories CNC Router Machine
Brand Name: Perfect Laser
Model Number: PEM-1325-8
Certification: CE / ISO / FDA/SGS / TUV
Place of Origin: China
MOQ: 1 Unit
Price: Negotiable
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 5000 Unit per year
Delivery Time: 7-15 Working Days
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Product Name: Multi-spindle CNC Router
Application: Engraving Wood, Acrylic, Metal
Working Type: CNC Control
Working Area: 1300mm*2500mm*200mm
Software: Type3/Artcam/RD
Working Table: Thicken Iron Casting Bed, Aluminum Alloy Work Table
Spindle Power: 2.2kw / 3kw /4.5kw
Control System: NC Studio/DSP
After-Sales Service Provided: Engineers Service Overseas
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
  • Submit Buying Request
    • Product Details
    • Company Profile

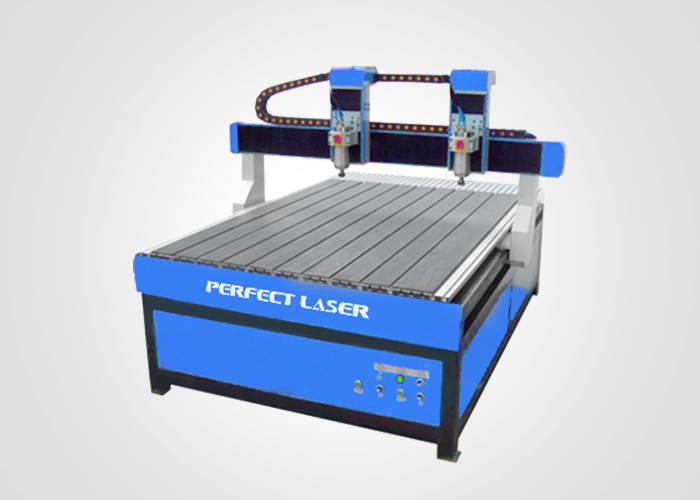

    3D Carving Wood Sculpture CNC Router Machine 8 Heads / CNC Wood Router

    China Supply 8 Heads 3D Carving Wood Sculpture CNC Router PEM-1325-8

    (Model: PEM-1325-8)



    Description


    The spindle heads of our Multi-spindle CNC Router can work together, save time and approve the work efficiency. The multifunctional engraving machine body used a thick pipe which is of good strength and is hard to distort. With the turbine worm gear box, the machine can operate stably and you can put two rotators on the platform. The rotators can be removed so the machine can realize both three dimensional engraving and flat surface engraving.


    Product Features


    1. Large cutting power not only elaborately carved a jagged, smooth, clear bottom.
    2. Firm structure, no distortion, which make it more precise.
    3. All of the spindles can work together, save time and approve the work efficiency, while any of them can work alone too.

    4. Adopted German made double-nut ball crews and imported linear guide rail. The storage of the break point function enables the machine can work continuously in case of power off.
    5. Adopt integral iron casting machine body. Non-deformation configured with international advanced high precision linear rail(AMT or HIWIN),more stable movement ,long lifetime using.
    6. Water cooling, high power spindle, low noise, and big cutting force to assure the long time working.
    7. Connection with the computer via USB interface enables data to be transmitted in a second, supports hot plug and play, no driver installation required(Window98/NT/2000/XP).
    8. Gantry moving, the lathe bed is cast wholly, firmly and will not become cut of shape.
    9. Adopt more advance X-Y-Z Auto-oil-feeding System.
    10. More compatible: It is compatible with such CAD/CAM software like Type3/ Artcam/ Castmate/ Proe/ UG/ Artcut,etc.
    11. Support semi-automatic oil lubrication system, can maintain easily optional device of Panasonic servo system from Japan.


    Application


    Applicable Field : Multi-spindle CNC Router is used in many fields such as woodworking industry and other industry such as Carving Series, relieve series and handcraft industry. Which is widely applied in aluminum engraving,aluminum cutting, 3D hollow cutting, LED, Groove word cutting and neon light, plastic Light boxes cutting, Acrylic Engraving, Acrylic Cutting ,copper boards engraving, copper boards engraving ,PVC boards engraving, PVC boards cutting, artificial stone engraving, artificial stone cutting , MDF board engraving, MDF board cutting and other metal processing.


    Specifications


    Machine Model

    PEM-1325-2

    PEM-1325-4

    PEM-1325-6

    PEM-1325-8

    Working Area

    1300*2500*200mm

    XYZ Guide Rail

    Square Rail

    X,Y Transmission

    Rack Gears

    Spindle Motor

    3KW (Optional :4.5kw,6kw, 8kw)

    Software

    ARTCUT(English) / TYPE3 Software

    Driver

    Stepper Motor (Optional :Servo Motor)

    Spindle Speed

    0-24000 RPM

    Max Engraving Speed

    20000mm/min

    Working Voltage

    AC220V 50HZ/60HZ

    Blade Diameter.

    3.175mm,4mm,6mm(or8mm,12mm,12.7mm)

    X,Y,Z Repositioning

    Positioning Accuracy

    ±0.02mm

    X,Y Resolution

    0.01mm

    Engraving tools dia

    Φ3.175, Φ4, Φ6, Φ12.7

    Interface

    PCI Port or USB Port

    Memory buffer (Flash)

    128MB

    Engraving Command

    G code, u00, mmg, PLT, HPGL

    Command language system

    English Version, Windows 98/2000/XP Operation System

    Operational Software

    Original Type3 Software, ArtCam software or Wentai Software

    Software Compatibility

    Support CAD/CAM software, PLT format, Corel Draw, Auto CAD

    Working temperature

    0-45℃

    Relative humidity

    30% - 75%


    Optional Items

    1. Stainless Steel Water Slot for cutting metal (with Cooling System)
    2. Dust Collecting System for wood working
    3. Rotary Fixture
    4. DSP Remote Controller (for offline working)
    5. Vacuum Absorbing Table for wood working
    6. Servo Motor & Control System
    7. Acrylic Polishing Machine


    Sample Show




    Packaging & Delivery

    1. Prompt deliver at the very day.
    2. Well-trained and disciplined packing team.
    3. Sophisticated and professional logistic agent.
    4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



    Competitive Advantages


    1. We offer high quality products at competitive price in quick delivery.
    2. 100% custom pass guaranteed.
    3. Good after-sale service.
    4. Flexible and Untraceable payment terms.
    5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
