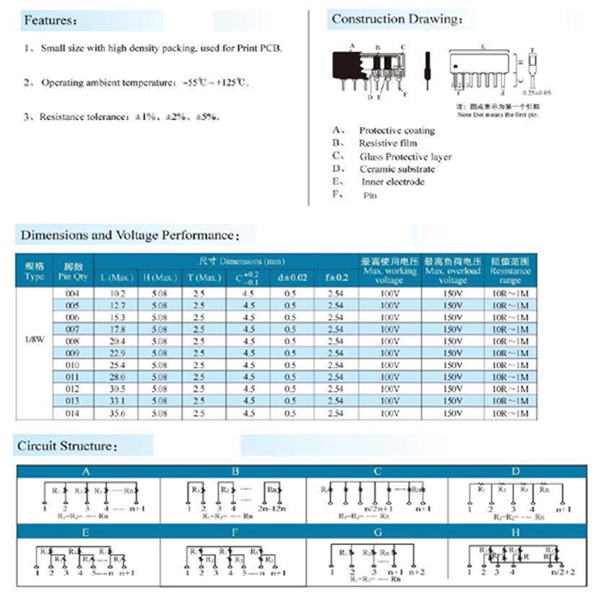

RoHS Compliant Resistive Film 1 / 8W DIP Array Resistor - GRA With
4Pin - 14Pin
We can make un-common product per customers requirements.
Features:
Product Model:1/8W,4Pin-14Pin
Resistance Range: 10R-1M
Resistance Tolerance:±1%,±2%,±5%
Small size with high density packing used for print PCB
Operational Temperature: -55C ~ +125 C
High stability array resistor
RoHS & ISO9001
Performance Test:
| Test Item | Test Condition | Performance |
| Temperature coefficient | Test the resistance value at normal temperature and normal temperature added 100℃,calculate per℃ resistance value change rate . | ±100ppm/℃ |
| Short time overload | 2.5 × rated voltage or Max.overload voltage (get the lower) for 5 seconds. | ΔR≤±(0.5%R0+0.05Ω) |
| Pulse overload | At 4 × rated voltage or Max. pulse overload voltage (get the lower) cycle 10000±200 times(1 second on, 25 seconds off ). | ΔR≤±(1%R0+0.05Ω) |
| Resistance to soldering heat | Immerge into 350±10℃ tin stove for 2~3 seconds. | ΔR≤±(0.5%R0+0.05Ω) |
| Solderability | Immerge into 245±3℃ tin stove for 2~3 seconds. | The area of soldering is over 95% |
| Temperature cycling | At -55℃ for 30 min, then at +25℃ for 10~15 min, then at +125℃ for 30 min, then at +25℃ for 10~15 min, total 5 cycles. | ΔR≤±(0.5%R0+0.05Ω) |
| Load life in humidity | Overload rated voltage or Max.working voltage (get the lower) for 1000 hours (1.5 hours on and half-hour off ) at the 40±2℃ and 90~95% relative humidity. | ΔR≤±(2%R0+0.05Ω) |
| Load life in heat | Overload rated voltage or Max.working voltage (get the lower ) for 1000 hours (1.5 hours on and hal |
