Middle Flow High Pressure Fire Pumps Four Stroke With Double Cylinder

Categories Special Vehicles
Brand Name: Jindun
Model Number: JBQ10/11-BS
Certification: ISO
Place of Origin: China
MOQ: 1
Price: USD
Payment Terms: T/T
Supply Ability: 300/year
Delivery Time: 3months
Dimension: 780*590*780
Net weight: 92KG
Highest lift: 145m
Rated pressure: 1.0Mpa
Water pump: Two-stage
Fuel type: 92#
Fuel consumption: 9L/H
output power: 33.8kW (46PS)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

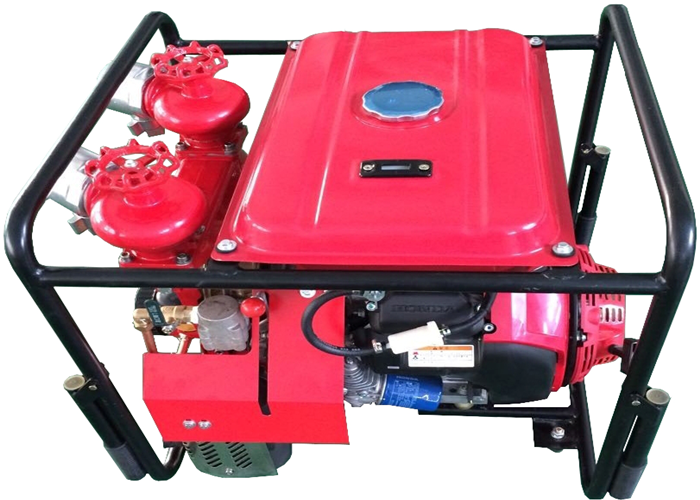

Middle Flow High Pressure Fire Pumps Four Stroke With Double Cylinder

Four stroke Double cylinder High pressure middle flow Portable fire pump Highest lift 145m


EngineTypeFour stroke 6134 (United States original power)
Number of cylindersDouble cylinder
Cylinder diameter * stroke (mm)88*86.5mm(993cc)
output power33.8kW (46PS)
Fuel type92# or more unleaded gasoline
Fuel tank capacity15L
Fuel consumption9L/H
Fuel SystemSolenoid valve type - carburetor - manual choke
Lubrication systemForced lubrication
cooling systemForced air cooling + water cooling (dual cooling system to ensure stable operation of equipment)
Oil injection volume1.8L
Ignition modeTransistor electronic ignition
Startup modeElectric start (optional remote start)
water uptakeWater diversion modeRotary vane vacuum pump (automatic water diversion, no need to handle handle)
Maximum suction depth9M
Water diversion time≤20S
PumpingPump typeOne-way two-stage centrifugal pump
Suction port diameter3 inch(80mm)
Outlet diameter2.5inch(65mm)
Number of outlets1(Optional dual outlet)
Type of outlet valveBall valve
performanceHighest lift145m
Rated flow rate950L/min
Rated pressure1.0Mpa
overallweight92KG
Size (mm)780*590*780
