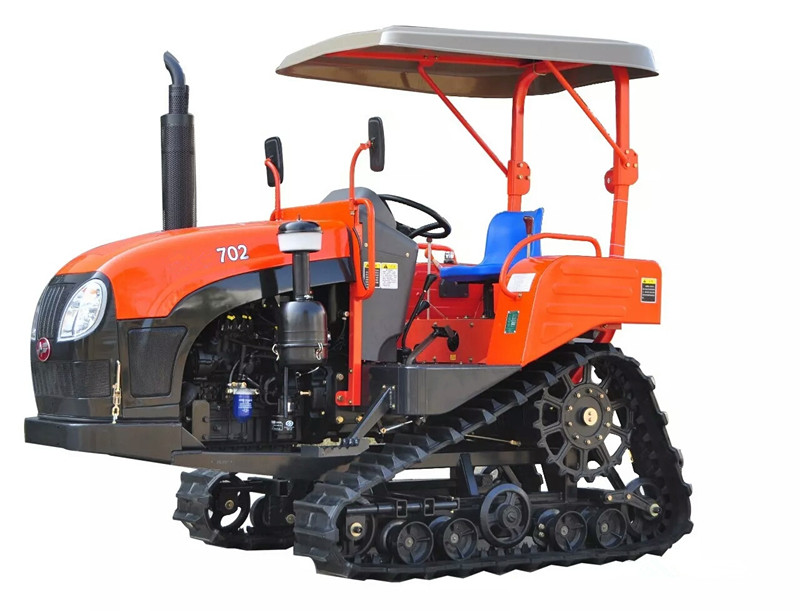

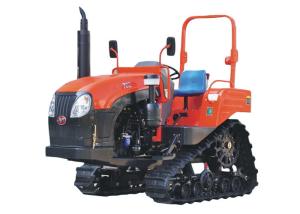

New 70HP Farm Crawler Track Tractor with Steering Wheel for Rice Paddy and Dry Field

Categories	Farm Crawler Tractor
Brand Name:	Johnbull
Model Number:	702
Certification:	ISO
Place of Origin:	CHINA
MOQ:	1 unit
Payment Terms:	T/T,, Western Union
Supply Ability:	150 units/month
Delivery Time:	within 25 days after receipt of downpayment
Packaging Details:	complete or in iron crate
Type:	Crawler tractor
Track:	Triangular track
Steering:	with Steering Wheel
Angle of Turn:	90 degrees
Rated Power:	51.5 KW
Dimensions of Tractor:	3690X1500X2400 mm
Machine Weight:	2255 KG
Engine:	Direct injection,Vertical,Water-cooled,Four-stroke Diesel Engine
Transmission Type:	Eight forward gear + eight reverse gear
PTO:	Type I, non-independent

Contact Now

Add to Cart

Company Info.

Anhui Liteduro Technology Co.,Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

New 70HP Farm Crawler Track Tractor with Steering Wheel for Rice Paddy and Dry Field

Rubber Crawler tractor with differential steering mechanism controlled by Steering Wheel has

the following advantages.

1. strong controllability,

2. flexible maneuverability,

3. less effort in turning,

4. greatly improves the speed of operation,

5. improves the adaptability of road transfer.

Features:

Comparison with wheeled Tractor

ITEM	Crawler Tractor	Wheeled Tractor
Traction Force	1.4~1.8	1
Traction Effective	70~80%	55~65%
Ground Pressure	47.7KPa (with 95.6 KW engine)	104KPa (with 95.6 KW engine)
Maintenance	More Easily as Regid Frame Structure	disassembly
Fuel Consumption	0.75	1

Technical Data:

Model		JB702
Size	Length x Width x Height (mm)	3690 x 1500 x2400
Weight	(kg)	2255
Minimum ground clearance	(mm)	395
Engine	Model	YD4CZ70C1
	Form	Direct injection,vertical,water-cooled, four-stroke
	Rated power (KW)	51.5
	Fuel	Diesel fuel
	Rated speed (r/min.)	2400
	Starting method	Electric start
Steering Brake System	Steering system type	Planetary differential steering
Steering Brake System	Brake system type	Wet friction type
Drive Train	Clutch type	Single-chip single fuction clutch
	Transmission type	8 forward gear + 8 reverse gear
	Transmission shift mode	Gear shift
Walking System	Rack form	Rigid frame type
	Track pitch section x number x width	90 x51 x350
	The theoretical speed of each file(km/h)	Forward:1.22;1.80;2.92;3.84;5.50;8.08;13.13;17.25
	The theoretical speed of each file(km/h)	Reverse:0.97;1.43;2.32;3.04;4.36;6.41;10.42;13.68
Working Device	Lifter type	Semi-Split
	Tillage depth control	Force adjustment
	PTO form	Type I, non-independent
	Power output shaft speed (r/min)	720/1000
	PTO shaft spline and the outer diameter (mm)	8 x 38
