27 Inch IP65 Panel PC Industrial Touch Screen PC 4GB RAM With Steel Chassis

Categories IP65 Panel PC
Brand Name: ITD/OEM
Model Number: ITD27PPCT1HBJ1
Certification: CE, FCC, RoHS
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, PayPal(173515844@qq.com)
Supply Ability: 5000PCS/Month
Delivery Time: 15-20 Business Days
Packaging Details: 1-5pcs/CTN, Safe, Firm
Housing Material: Steel Chassis
Color: Black or Silver
Operating Temperature: -10~60℃(-20~70℃ optional)
Operating Humidity: 10%-90% (Non Condensing)
CPU: J1900,i3,i5,i7
Resolution: 1920*1080
NAME: IP65 Panel PC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

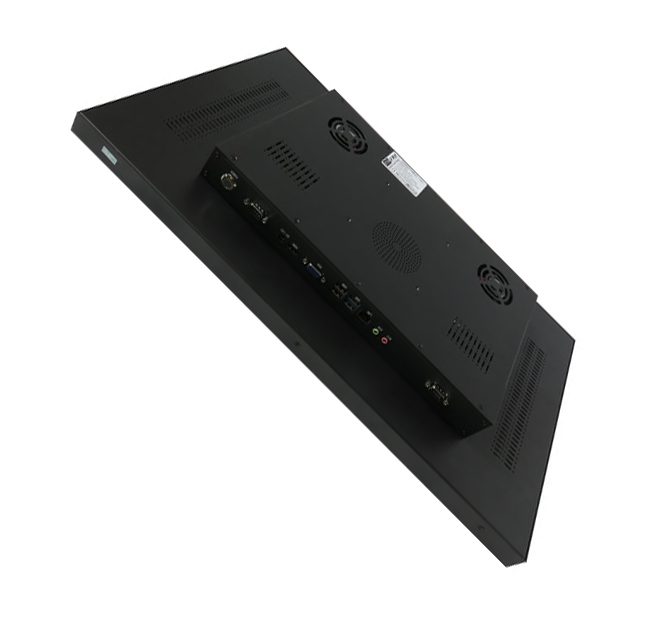

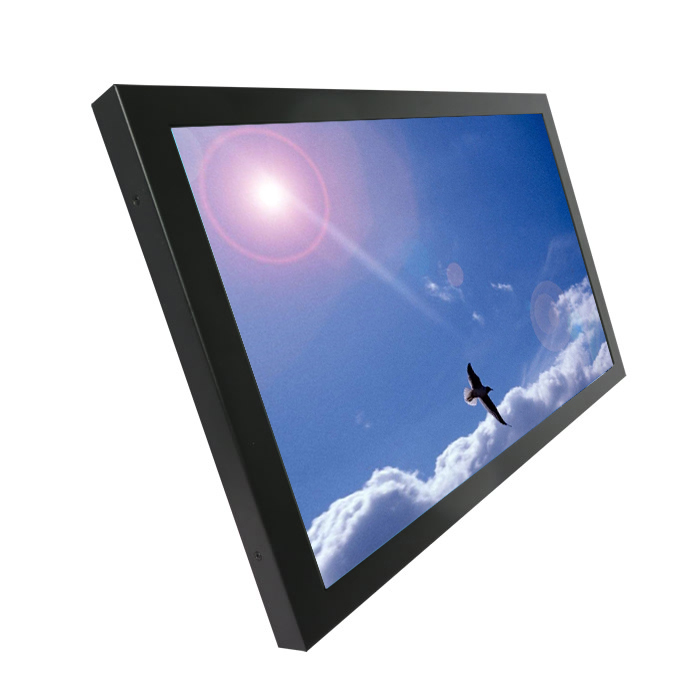

27 Inch IP65 Panel PC Industrial Touch Screen PC 4GB RAM With Steel Chassis

27 Inch IP65 Panel PC Industrial Touch Screen PC 4GB RAM With Steel Chassis



ITD IP65 Panel PC rugged marine grade high brightness LCDs are designed for use in marine environments. These devices are ready to be panel-mounted into a console. Its front bezel provides maximum protection from water and other elements as it meets various NEMA and IP rating standards. It delivers high performance computing power with its Intel processors.


BENEFITES OF IP65 Panel PC

- 27" Very Bright Active Matrix Sunlight Readable TFT Display; 1000 nits (cd/m2)


- Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional


- 4GB, Max.8G System Memory


- NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel


- High Environmental Performance and Reliability


- Wide Operational Temperature Range, -10°C to +60°C


Chassis High Brightness Panel PC
Model NameITD27PPCG1HBL**
IP RatingIP65 Front Panel Optional
PC Systems Options
ARM Android Based RK3288(RK3368 optional)X86 Windows BasedX86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHzCPU: Intel® Celeron J1900CPU: Intel Core i3/i5/i7
Chipset: N/AChipset: Intel® NM10 ExpressChipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2GMemory: 2GB(Max. 8GB)Memory: 2GB(Max. 8GB)
HDD/SSD: 8GHDD/SSD:500G/64GHDD/SSD:500G/64G
1×HDMI1×VGA, 1×HDMI1×VGA, 1×HDMI
1×USB 2.02×USB 2.0, 2×USB3.02×USB 2.0, 2×USB3.0
1×mini-SD slot1×COM(RS232/422/485)1×COM(RS232/422/485)
1×LAN1×LAN1×LAN
1×Audio Out1×Audio Out, 1×MIC In1×Audio Out, 1×MIC In
Expansion: SSDExpansion: USB, COM, Mini-PCIeExpansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)27”
Display Active Screen Size (cm)597.888(H)×336.312(V)
Aspect Ratio16:9
Physical Resolution1920×1080
Maximum Resolution Supported1920×1080
Colors16.7M
Brightness (cd/m²)1000(1500 Optional)
Contrast Ratio1000:1
View Angels89/89/89/89
Backlight/Backlight LifetimeLED Backlight with 50000 Hours’ Lifetime
Touch Panel
Touch OptionsResistive, IR, PCAP, SAW, Touch Foil
Touch DriversWindows, Linux, Android, Mac, Raspberry Pi

Operation


Operating Temperature Range-10~60°C (-20~70°C Optional)
Humidity Range (RH)10-90%
24/7/365 UseSupported
Power
Power IndicatorGreen LED
Power InputInternal Power Supply, AC100V~240V
Power Consumption53W
Order Information
27”1500nits Chassis Panel PC with Resistive Touch, J1900ITD27PPCT1HBLJ1
27”1500nits Chassis Panel PC with PCAP Touch, J1900ITD27PPCT5HBLJ1
27”1500nits Chassis Panel PC with IR Touch, J1900ITD27PPCT2HBLJ1
27”1500nits Chassis Panel PC with Tempered Glass, J1900ITD27PPCG1HBLJ1
27”1500nits Chassis Panel PC with Resistive Touch, i5ITD27PPCT1HBLI5
27”1500nits Chassis Panel PC with PCAP Touch, i5ITD27PPCT5HBLI5
27”1500nits Chassis Panel PC with IR Touch, i5ITD27PPCT2HBLJ1
27”1500nits Chassis Panel PC with Tempered Glass, i5ITD27PPCG1HBLI5

APPLICATION

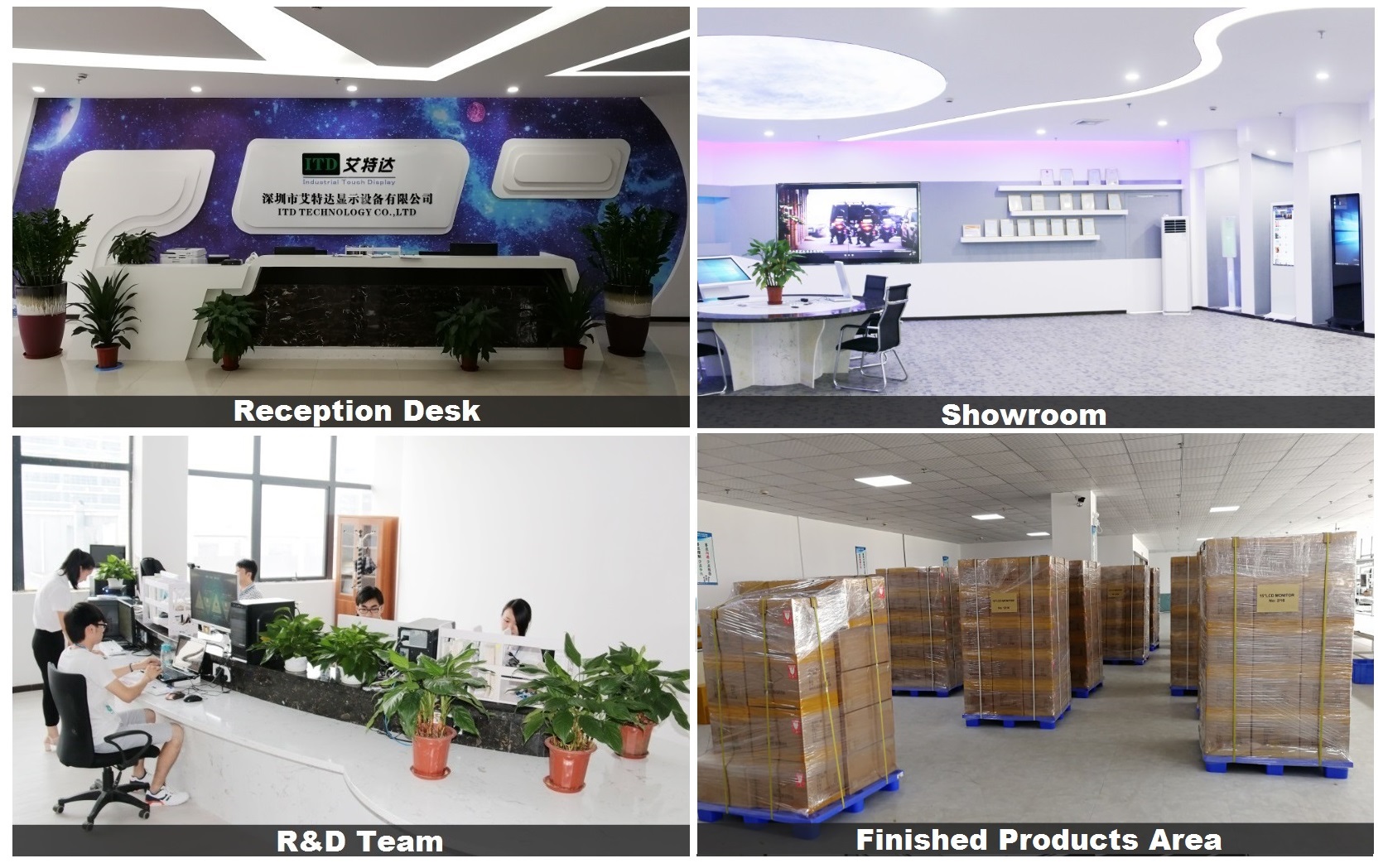

OUR FACTORY
