Reaction Bonded Silicon Carbide Tube , High Hardness Ceramic Beams For Kiln

Categories Silicon Carbide Beams
Brand Name: KAMTAI
Model Number: KTSICB3
Certification: SGS
Place of Origin: CHINA
MOQ: 50pcs
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000pcs/Month
Delivery Time: 25 days after payment
Packaging Details: Plywood box
SiO2 Content (%):: 0.5
Bulk density: 3.02g/cm3
Bending strength: 281Mpa
Advantage: High strength
Al2O3: 0.1
Color: Black
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

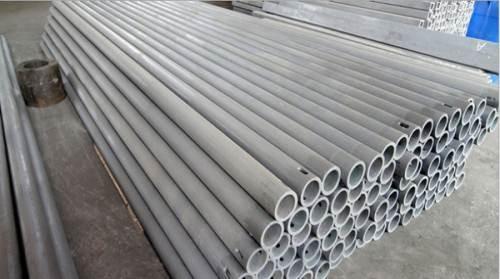

Reaction Bonded Silicon Carbide Tube , High Hardness Ceramic Beams For Kiln


Reaction bonded high temperature bearing Silicon carbide beam


1. Product Description

Reaction bonded SiC beam is made from α_SiC powder, graphite powder, mixing additives and organic adhesive agent.The mixture body is extruded and then filled into crucible with silicon powder. Sinter in a vacuum heating furnace at 1600 ~1800° C, the melt silicon powder reacts to the silicon in the body, finally from β-Sic due to the heat of reaction.
2. Specifications
ItemsUnitData
Max. Service temp1380
Densityg/cm33.02
Apparent Strength%<0.1
Bending StrengthM pa250(20℃)
M pa280(1200℃)
Modulus of elasticityG pa330(20℃)
G pa300(1200℃)
Thermal conductivityW/m.k45(1200℃)
Thermal explanation

K-1x10-6


4.5
Vickers-hardnessG pa20
Acid-proof alkaline

EXCELLENT

3. Features
a. High refractoriness
b. High thermal shock resistance
c. Good bending strength
d. Good thermal shock stability
e. High hardness
f. Good corrosion resistance
4. Applications
Silicon carbide beam is mainly used as the load carrying members of tunnel kiln, shuttle kiln and double channels kiln. It can also be used as the kiln furniture in ceramic and refractory industry.

We use plywood box and pallet, no need to do fumigation.Some countries has very strict law about pacakge, if we use solid wood, we must do fumigation, otherwise it will bring trouble when customer import.So we use plywood, it is also high strength and quality, we export to many countries.

1. We are a manufacturer, which can control the cost easilier than trade company also can give you anwer more quickly.

2. As a manufacturer, we know much in technique and can give you more support in technique problem.

3. We establish the company and began to produce refractory materials since 1988. We have longtime and mature experience for entire production.

4. Our products are complete in specifications with various of sizes.

5. We enjoy a good reputation in the customers in domestic and overseas markets.
