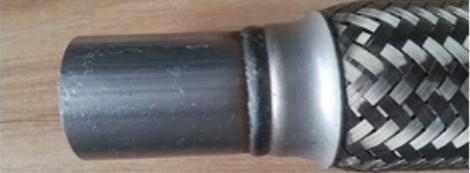

SS321 Material 4 Inch Exhaust Flex Pipe , 76 X 250mm Exhaust Mesh Flex Pipe

76X250mm Auto exhaust flexible pipe with nipple extension(without inner liner) for auto exhaust systems

STRUCTURE
Interlock flex pipe:bellows +outer braid +nipples

Quick detail:
Material of Bellows: Stainless steel 309S

Material of Inner braid:Stainless steel 304 321 309S
Material of Outer Braid:Stainless steel 304 321 309S
Material ofNipples: Aluminized steel or stainless steel 409L

Length:120mm

Diameter:45mm

Application: for all exhaust pipe with Diamter 45mm

OTHER ROUTINE SIZE AVAIABLE

Iner Diameter(inch): 1-3/4",2",2-1/4",2/1/2",3"

Inner Diameter(mm):45mm 48mm 50.8mm 54mm 57.2mm 63.5mm 76.20mm

Flexible Length(inch):4",6",8",10"

Flexible Length(mm):102mm 152mm 203mm 254mm

Overall Length(inch):8",10",12",14"

Overall Length(mm):203mm,254mm,305mm,356mm

Quality assurance:

1. Assurance of raw materials.

All the raw materials we purchased are from local major mill, such as POSCO, BAOSTEEL AND TISCO etc. Compared with our competitors who sourced raw materials from small mill, our products have better appearance and more stable mechanical properties ,moreover the lifetime would last 3-5 years more long than the usual ones.

2. Welding procedure

• welding process has strict production process and operation guide book
• welding consistent, smooth, neat
• welding products without sand holes, porosity ,ensure that no leakage.

About Us

JUYE metal was established in 2017 and is located in Ningbo City，which is one of the China’s largest international port cities, with convenient transportation facilities and mature commercial service network for steel products.

We are a fast-growing company, nearly all the staffs have over 10 years of professional experience in stainless steel industry. We specialize in the manufacturing, processing, distributing, warehousing and logistics of stainless steel products. We cover all aspects of the services, from the source of the stainless steel industry chain to the final products recycling and reuse.

We are the main partner of big mills in China and abroad, such as Tsingshan, Baosteel, Tisco, Jisco, Yongjin, Hongwang, Yusco, etc...With our years of rich experience and knowledge accumulation in the field of stainless steel, as well as professional processing capabilities and a strong distribution platform, our products are exported to all over the world, and we have cultivated a good user base, which in turn has grown our team.

Our own warehouse in Ningbo bonded area stores 5,000~8,000 tons of coils per month, mainly serving overseas customers for processing. We carry out a series of further processing such as cutting, slitting, trimming, polishing, and punching in our own factory.

We are implementing a strict quality control system to ensure that all products meet quality requirements of customers. We have attained many certificates such as ISO 9001,CE,PED,SGS ,etc.. All the products will be strictly inspected before shipment.

Thanks to the support and trust of our partners, our sales volume continues to increase and our business territory continues to expand.
