Aluminum Profile Bending Machine Sheet Metal channel letter equipment

Categories More
Brand Name: Perfect Laser
Model Number: PEL-900
Certification: CE/ISO/FDA
Place of Origin: China
MOQ: 1 Unit
Price: Negotiable
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 600 Set/Sets per Month CNC Gear Cutting Machine
Delivery Time: Shipped in 7 days after payment
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Product Name: CNC Bending Machine for Stainless Steel
Width: 60mm-180mm
Aluminum coil thickness: 0.4mm-1.2mm
Gear cutting angle: 30℃ and 105℃
Gear cutting edges: unilateral
Gear cutting depth: 4mm-16mm
Voltage: AC 110V/220V
Frequency: 50/60HZ
Compressed air pressure: 0.8MPa
Compressed air: 0.1m³/min
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

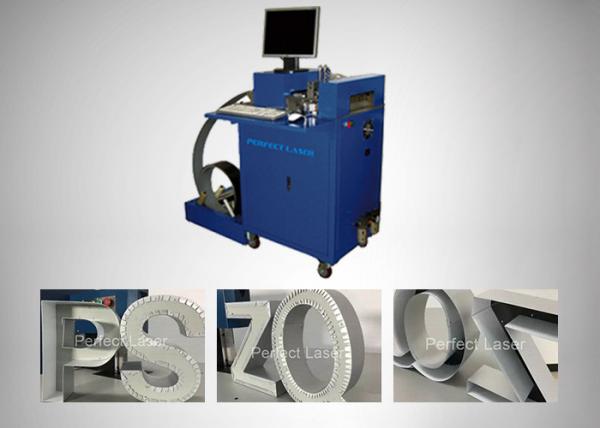

Aluminum Profile Bending Machine Sheet Metal channel letter equipment

Sheet Metal Bending Machine Suppliers/ DXF Graphical Input Aluminum Profile Bending Machine


Description

Perfect Laser is high performance manufacturer for steel bending machine.

Perfect Laser has twenty years of rich experience in R & D to specialized in laser marking and laser equipment R & D and sales of high-tech enterprises . Steel bending machine PEL-900 is a fully automatic multifunctional high-end equipment with set shear tooth, cutting, management and other functions in one, it is ideal for all kinds of metal materials processing letters.


Product Features

1. Automatic cutting teeth: according to the graphics automatically cut different angles of teeth;

2. Automatic cutting: CNC cutting teeth advertising, luminous word bending machine can be automatically cut off in each stroke;

3. Automatic RBI: RBI can point out the position and direction of the bending;

4. Automatic recognition: inside and outside frame, length automatic calculation, any point interrupt, change the form of overlap;

5. Software support: DXF graphics input, support CORELDRAW, Wentai, ARTCAM and other software, compatible with a variety of DXF version;

6. A wide range of applied materials: CNC shear advertising, luminous word bending machine can be processed galvanized sheet, stainless steel plate, aluminum plate and other types of materials;


Application

Applicable materials: galvanized sheet, stainless steel plate, aluminum plate, etc.;

Scope of application: high grade square landscape words, stainless steel words, punching words, resin words, giant luminous characters and so on.


Specifications

PEL-900 Applicable Material Type
Width60mm-180mm
Aluminum coil thickness0.4mm-1.2mm
Output Specifications
Gear cutting angle30℃ and 105℃
Gear cutting edgesunilateral
Gear cutting depth4mm-16mm
Power Requirements
VoltageAC 110V/220V
Frequency50/60HZ
Compressed air pressure0.8MPa
Compressed air0.1m³/min
Mounting dimensions
Automatic Folding MachineCNC Gear and Edge Tooth Cutting Machine
Height310mm1600mm
Width440mm800mm
Length1200mm2200mm
Weight52kg200kg
Packaging Size
Automatic Folding MachineCNC Gear Cutting MachineBending Machine/Rounder
Height470mm1480mm350mm
Width580mm830mm400mm
Length1340mm1030mm500mm
Weight95kg287kg30kg
Sample Show
Packaging & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

Cheap Aluminum Profile Bending Machine Sheet Metal channel letter equipment for sale
