Customized Color Vacuum Tube Solar Water Heater 5 / 8 / 15L Feeding Tank

100L Stainless Steel Customized Color Steel Rooftop Non Pressurized Vacuum Tube Solar Water Boiler

1. High efficiency
2. CE,ISO9001,EN12975,SRCC
3. Delivery time:10days
4. 6 years guarantee,15years lifetime

Working principle:

Non-pressure solar water heater of all glass evacuated tube collector integrated with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required.
They are simple, economic and practical.
As the specific gravity of hot water and cold water are different, cold water goes downward and hot water goes upward.
When cold water in evacuated tubes is heated, it becomes lighter and goes to the water tank.

While cold water in the tank goes down to the evacuated tubes
Through this circulation, the cold water in the water tank will be gradually heated.

Specifications:

solar energy , environmentally friendly
1, high quality;
2, perfect craft;
3, easy installation

Low pressure Vacuum Tubes Solar Water Heater

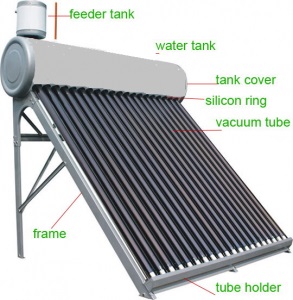

Brief Introduction of Vacuum Tubes Solar Water Heater

High borosilicate glass 3.3 with graduate AL/N-SS-Cu selective complex absorptive coating, makes vacuum tubes have high performance in sunshine absorbing and low reflection ratio.

Feature:

1) Highest efficiency
2) Simple configuration
3) Reliable and economic
4) Silicon rings to connect and seal
5) Automatic controllers( optional)
6) Electrical heating element(optional)

Specification

1) Outer tank diameter: 420/460/470mm
2) Inner tank diameter: 310/360mm
3) Vacuum tube counts: 15, 16, 18, 20, 22, 24, 26, 28, 30
4) Tube size: 47x 1, 500mm, 58 x 1, 800mm
5) Aperture area: 2.80-5.14 m2
6) Volume: 90L-400L
7) Angle: 38 /45

Material:

1) Outer tank: PVDF/colorful plate
2) Inner tank: SUS304-2B stainless steel
3) Frame: Aluminum alloy/ Galvanized steel/ Stainless steel
4) Insulation: 50/55mm polyurethane

Packaging & Delivery:

Packaging Details: CARTOON ;for samples ,the vacuum tubes will be packaged by wooden box.

Delivery Detail: 15working days for 20GP ;20days for 40Hq container.

Optional Devices:

1.Electrical heater:as an auxiliary heating element in case of raining or cloudy days so as to ensure a continuous hot water supply

2.Intelligent controller:automatically controls water refill and startup of auxiliary heating device, more intelligent system operation .

3.Warranty:15 years for evacuated tube. 6 years for water tank

Technical Data:

JIAXING PASSION NEW ENERGY TECHNOLOGY CO., LTD. is a manufacturer of Solar Water Heater since 1996.

As an experienced company, we can provide the perfect solution for Solar Thermal System.

Our products include solar water heater, solar collector and accessories.
We have advanced technology and equipment, specialized in producing the following solar thermal products:
A. Thermal Solar Water Heater

B. Flat Plate Solar Water Heater

C. Heat Pipe Solar Water Heater

D. Vaccum Tube Solar Water Heater

E. Split Solar Water Heater

F. Pre Heated Solar Water Heater

G. Flat Plate Solar Collector

H. Heat Pipe Solar Collector

I. U Pipe Solar Collector

J. Vacuum Tube Solar Collector

The solar water heater applies to family, underfloor heating, factory, hotel, swimming pool etc.
