| Categories | multi heads cnc router |
|---|---|
| Place of Origin: | Jinan |
| Brand Name: | TianJiao |
| Model Number: | TJ1325MT-2D |
| Certification: | CE |
| Price: | $11475 |
| Packaging Details: | water-proof film inside,woodencase outside |
| Delivery Time: | 7-10 days after advanced payment |
| Payment Terms: | T/T 50% in advance, balanced before shipping |
| Supply Ability: | 500 sets per month |
| MOQ: | 1 set |

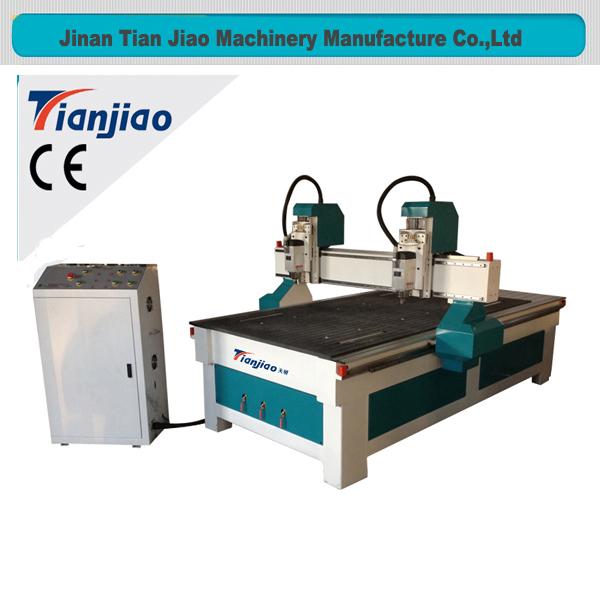

Wooden Gunstock making machine
2.Features:
1.Two heads can simultaneously process, and can also be used alone,
more efficiency than one head.
2. Screw drive, economical, cost-effective.
3.Germany imported high precision pre-loaded eliminating gap ball
screw to reduce the movement gap to the minimum and make the
location more accurate.
4.Imported four-row ball linear guides, self-lubricating block
making equal force in all directions to ensure the accuracy and
mechanical strength.
5.The breakpoint memory function can guarantee the machine
continues processing when cutters broken by accident or to do the
work the next day. Gantry Moving, machine body is wholly casted,
durable, long-term use without deformation.
3.Wooden Gunstock making machine
Applicable industry:
1. The furniture industry: mahogany and other hardwood antique furniture carve patterns such as embossment, piercing .
Woodworking industry: classic mahogany furniture products
processing.
3. The advertising industry: advertising signs, sign making,
acrylic cutting, plastic molding, decorative products for a variety
of materials, production of advertising.
4. Other Industry: a variety of shadow carving, embossment, widely
used in craft gifts industry.
5. It can also be applied to: aluminum incision industry, aluminum
plate, aluminum-plastic panels, aluminium honey comb plate,
aluminium section, 3D ornamental engraving process, wave board
production, various types of man-made plate opening and shaping,
LED, neon shaped groove literal cutting, Light box molding.
Acrylic, copper board, PVC board, artificial stone, MDF board and
other material plates processing.
4. Wooden Gunstock making machine
Parameters
Model | TJ1325 |
Working Area | 1300*2500*200 mm |
Spindle | 4.5 kw, 24000 rpm, water cooling |
Table | vacuum/T slot aluminum profile |
Transmission | ballscrew for x.y.z |
Guideway | precision guideway |
Resolution | 0.01 mm |
Speed | 25 m/min |
Driver | Microstepping drivers and stepping motors |
Code | G Code, HPGL Code |
Power Supply | AC380V/50Hz |
Controlling System | DSP/Ncstudio |
Software | Artcam or Type3 |
Software Environment | Windows XP |
Packing | Wooden Box |
Net Weight | 1500 kg |
Gross Weight | 1600 kg |
Applicable Materials | wood, pvc, acrylic, mdf, plexiglass, and aluminum, copper, aluminum composite panel, etc |
5. Wooden Gunstock making machine
production line:
Select the good wood as material
with special table to clamp the wood cylinder, engrave and drilling
half products
done product
6.Note:
with 2 heads or 3 heads, can make 2/3 pieces at one work
with special table to clamp the material
