| Categories | Trina Solar Panel |
|---|---|

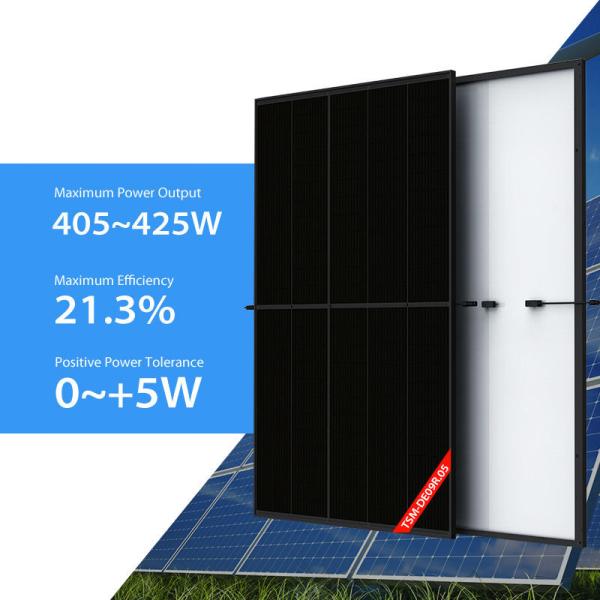

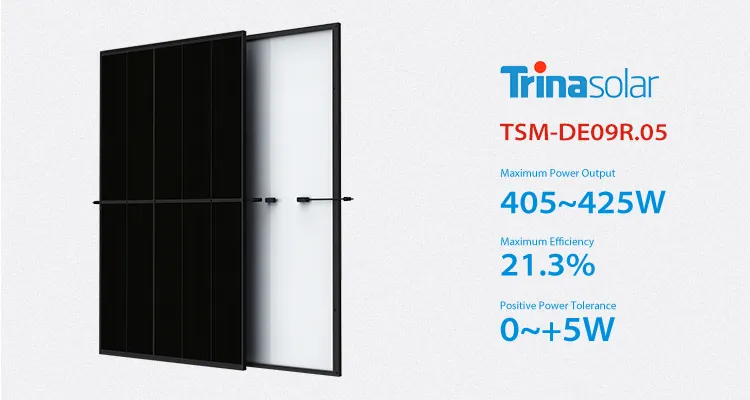

| Model Number: | TSM-DE09R.05 |
| Place of Origin: | Jiangsu, China |
| MOQ: | 30 |
| Price: | $0.17~0.20/Watts |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200000 Watt/Watts per Week |
| Delivery Time: | To be negotiated |
| Packaging Details: | pallet |
| Brand Name: | TSM-DE09R.05 |
| Certification: | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| Max. Power: | 425W |
| Material: | Monocrystalline Silicon |
| Power Range: | 405W-425W |
| Number of Cells: | 144 cells |
| Customization: | Customized logo(Min. order 100000 watts) Customized packaging(Min. order 100000 watts) Graphic customization(Min. order 100000 watts) |
| Type: | PERC, Half Cell, All Black |
| Panel Efficiency: | 21.3% |
| Certificate: | TUV/CE |
| Panel Dimensions: | 1762*1134*30mm |
| Cell size: | 210mmx182mm |
| Company Info. |
| X New Energy Technology (Changzhou) Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Trina Solar offers a range of high-quality solar modules with power outputs of 405W, 410W, 415W, 420W, and 425W. These solar modules are designed to efficiently convert sunlight into electricity, making them an excellent choice for residential, commercial, and industrial solar installations.
With their impressive power outputs, these solar modules provide substantial electricity generation capacity. The higher wattage allows for increased energy production, enabling users to meet their energy needs and potentially offset a significant portion of their electricity consumption.
Trina Solar modules are built using advanced technology and high-quality materials to ensure durability and long-term performance. The company is known for its rigorous quality control processes, ensuring that each module meets the highest industry standards.
| Model No. | 405 | 410 | 415 | 420 | 425 |
| Warranty | |||||
| Product Warranty | 15 Years | ||||
| Power Warranty | 25 Years of 84.8% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 405 Wp | 410 Wp | 415 Wp | 420 Wp | 425 Wp |
| Voltage at Maximum Power (Vmpp) | 41.3 V | 41.5 V | 41.7 V | 42 V | 42.2 V |
| Current at Maximum Power (Impp) | 9.82 A | 9.87 A | 9.94 A | 10.01 A | 10.08 A |
| Open Circuit Voltage (Voc) | 49.7 V | 49.8 V | 50 V | 50.1 V | 50.2 V |
| Short Circuit Current (Isc) | 10.5 A | 10.53 A | 10.55 A | 10.58 A | 10.61 A |
| Panel Efficiency | 20.30% | 20.50% | 20.80% | 21% | 21.30% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 306 Wp | 309 Wp | 312 Wp | 317 Wp | 321 Wp |
| Voltage at Maximum Power (Vmpp) | 38.3 V | 38.5 V | 38.7 V | 39.2 V | 39.5 V |
| Current at Maximum Power (Impp) | 7.99 A | 8.03 A | 8.07 A | 8.1 A | 8.13 A |
| Open Circuit Voltage (Voc) | 46.8 V | 46.9 V | 47.1 V | 47.1 V | 47.2 V |
| Short Circuit Current (Isc) | 8.46 A | 8.49 A | 8.5 A | 8.53 A | 8.55 A |
| Temperature | 43±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | 40~85 °C | ||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||
| Temperature Coefficient of Voc | 0.25 %/°C | ||||
| Temperature Coefficient of Isc | 0.04 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 20 A | ||||
| Material Data | |||||

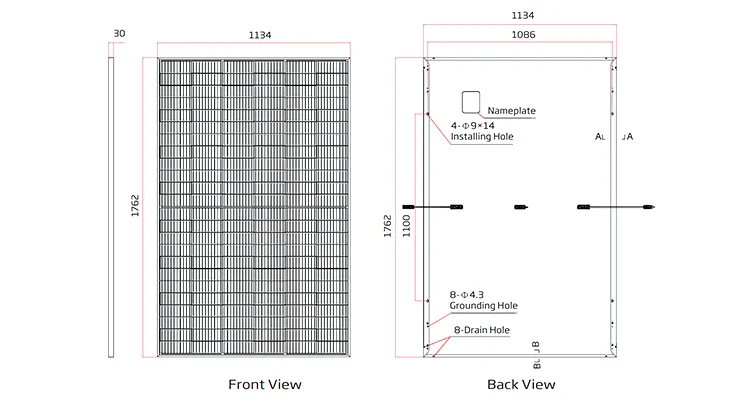

| Panel Dimension (H/W/D) | 1762x1134x30 mm | ||||
| Weight | 21.8 kg | ||||
| Cell Type | Monocrystalline | ||||
| Cell Number | 144 | ||||
| Glass Type | Anti-reflection Coating | ||||
| Glass Thickness | 3.2 mm | ||||
| Encapsulant Type | EVA | ||||
| Frame Type | Anodized Aluminium Alloy | ||||
| Junction Box Protection Class | IP 68 | ||||
| Connector Type | MC4 | ||||
| Cable Crossection | 4 mm2 | ||||
➤ Small form factor. Generate a huge amount of energy even in
limited space.
➤ Up to 425W, 21.3% module eciency with high density interconnect
technology
➤ Multi-busbar technology for better light trapping eect, lower
series resistance and improved current collection
➤ Reduce installation cost with higher power bin and ecieny
➤ Boost performance in warm weather lower temperature
coecient(-0.34%) and operating temperature
Universal solution for residential and C&I rooftops
• Designed for compatibility with existing mainstream optimizers,
inverters
and mounting systems
• Perfect size and low weight. Easy for handling. Economy for
transporting
• Diverse installation solutions. Flexible for system deployment
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting
technology
➤Ensured PID resistance through cell process and module material
control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa
negative load
|
