Professional Waste Tire Recycling Plant / Used Tire Rubber Powder Production Line

Professional Waste Tire Recycling Plant/ Used Tire Rubber Powder Production Line

The Whole Process

Product Description

Main Equipments

1. Single Hook Debeader LSJ-1200
Use:Pulling out the wire loops from the mouth of waste tires.

2. Tire Cutter QDJ-1200
Use:Cut the whole waste tires into small parts

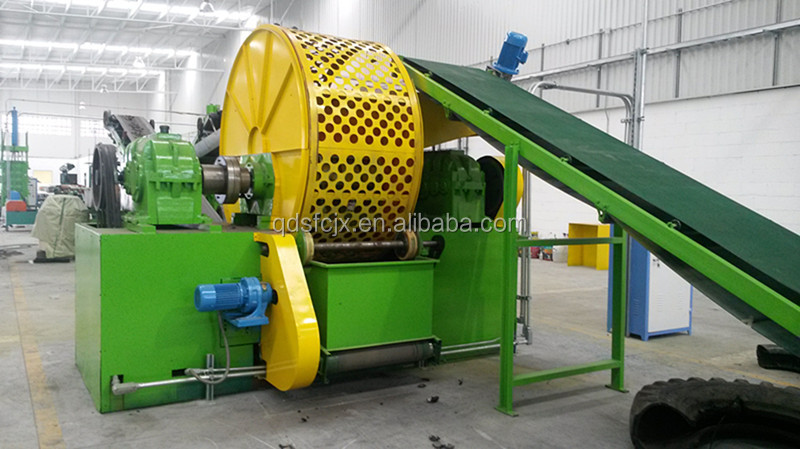

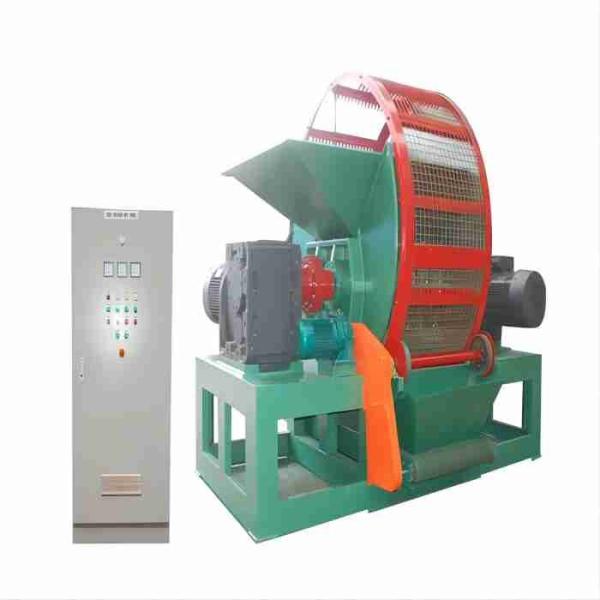

3. Whole tire shredding machine ZPS- 900,1200
Use:This machine can directly crush tires smaller than 1200mm tires. At the general temperature, can be put directly crushed into 50 * 50 mm block, so the next rotating can grind into 10-30 meshes or wire and fiber separation equipment.

4. Double Rolls Rubber Crusher XKP-400/450/560/610

Use:Mainly used for crack large rubber blocks into 2-26 mesh small rubber granules.

Structure

Item		Quantity	Usage
Hook debeader		1 set	Pull out the wires directly from the tire bead
Whole tire cutter		1 set	Cut the whole waste tires into small parts
Whole tyre shredder (with conveyor)		1 set	Shredding the waste tires or rubber blocks into 50X50mm
Double Rolls Rubber Crusher		1 set	Crush the above 50X50mm block into the 2-26 mesh rubber granules
Auxiliary machinery	Big conveyor equipment	1 set	Conveying the rubber granule, Separate steel wire, and screen the granules
	Small conveyor equipment
	Big Magnet separator
	Small Magnet separator
	Big Shaking screen
	Small Shaking screen
Fiber separator (with feeding systems)		1 set	Separate the fine fabric from the rubber granule
Rubber Powder Grinding Machine (with auxiliary equipments)		1 set	Grinding the above rubber granules into 30-120 mesh rubber powder

Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

FAQ

1. What does your factory do regarding quality control?

We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?

Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?

Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?

We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.

If you come to our factory, we can show the user around us.

5. How can we go to your side?

We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.

Before leaving factory, this plate vulcanizing press needs to pass 24 hours' pressure test, pressure maintaining to test the bearing of the hydro-cylinder and piston stroke and guarantee no oil leakage and seeping to avoid unnecessary quality problems.

We can design and manufacture all kinds of non-standard plate vulcanizing press according to the customers' definite requirements.

Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is located in Qingdao west coast new economic district, which is a high-tech enterprise specializing in the production of rubber machinery in China. Honorary titles of Qingdao "Specialized and New" Enterprise, National "High-tech" Enterprise, etc. has been achieved, trademark "顺富昌" registered, and has passed ISO9001:2015 quality system certification, Swiss SGS certification and CE export certification. All the machines are designed with 3D software and are not only sold all over the country, but also exported to the United States, Britain, Russia, the Netherlands, Thailand, Malaysia, Indonesia, Chile, Mexico, Ukraine, Uzbekistan, France and many other countries and regions.

The company has a registered capital of 5 million yuan, an independent R&D team and technical engineers with 5-20 years of experience in the same industry, and more than 20 product patents. So far, our company has mastered a number of advantages in rubber machinery, and has taken the lead in the industry.

The main products of our company including new banbury mixer, rubber mixing mill, vulcanizing press, rubber calender, batch of cooler, rubber kneader, forced feeding straining extruder, new waste tire recycling line, reclaimed rubber equipment etc. , and can design and manufacture various special rubber machinery according to customer requirements.

Since 2019, our company’s newly developed EPDM runway granules production line, rubber band production line, automotive butyl sheet production line, sound insulation and shock cushion production line and rubber dredging pipe production line, turnkey projects ranging from production equipment to product manufacturing technology have been used on-site by different customers at home and abroad, and have received good reviews.

All employees of Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd are willing to provide high-efficiency rubber processing equipment for all customers with first-class technology, quality and efficient service.

Sincerely welcome you to visit our company for further more discussions.
