| Categories | Ethernet Lan Cable |
|---|---|
| Brand Name: | BLG / OEM / ODM |
| Model Number: | CAT6 UTP |
| Certification: | CE / ROHS / ISO |
| Place of Origin: | CHINA |
| MOQ: | 100 Rolls |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 3000 Rolls per Week |
| Delivery Time: | 10 - 15 Work Days |
| Packaging Details: | 305M / Roll / Easy Pull Box, 2 Boxes / Carton |
| Conductor Material: | Bare Copper / Copper Clad Aluminum |
| Conductor Diameter: | 23AWG / 24AWG Solid or Stranded |
| Insulation: | HDPE |
| Filler: | Cross Separator |
| Ripcord: | Nylon or Optional |
| Jacket: | PE or PVC + PE Dual Layer |

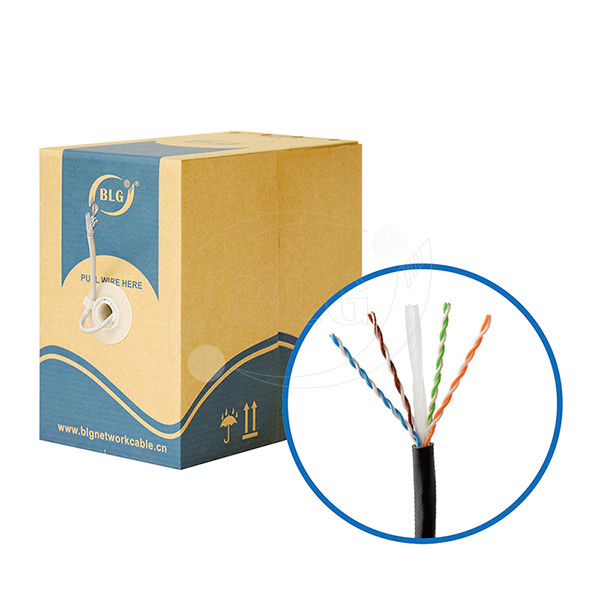

UTP Outdoor Ethernet Cable Cat6 1000FT New Full Copper Black PE UV Resistant Waterproof
Applications:
Description:
Rated Temperature: 60°C, 75°C, 90°C
Solid or Stranded Bare Copper Conductor
PVC or PE or LSZH Jacket, RoHS Compliant
Comply to IEC61156-5, EN50173 & ISO11801
Operating Temperature: - 30°C ~ + 50°C
Minimum Bending Radius: 4D
Electrical Characteristics:
| Frequency (MHz) | Impedance (Ohm) | Return Loss (≥dB) | Attenuation (≤dB/100m) | NEXT (≥dB/100m) | ELFEXT (≥dB/100m) | PS-NEXT (≥dB/100m) | PS-ELFEXT (≥dB/100m) | Delay Skew (ns/100m) | NVP |
| 1 | 100±15 | 20.0 | 1.9 | 74.3 | 67.8 | 72.3 | 64.8 | ≤45 | 68% |
| 4 | 23.0 | 3.7 | 65.3 | 55.8 | 63.3 | 57.7 | |||
| 10 | 25.0 | 5.9 | 59.3 | 47.8 | 57.3 | 44.8 | |||
| 16 | 25.0 | 7.5 | 56.3 | 43.7 | 54.3 | 40.7 | |||
| 20 | 25.0 | 8.4 | 54.8 | 41.8 | 52.8 | 38.7 | |||
| 31.25 | 23.6 | 10.6 | 51.9 | 37.9 | 49.9 | 34.9 | |||
| 62.5 | 21.5 | 15.4 | 47.4 | 31.9 | 45.4 | 28.8 | |||
| 100 | 20.0 | 19.8 | 44.3 | 27.8 | 42.3 | 24.8 | |||
| 150 | 18.8 | 25.1 | 41.4 | 23.9 | 39.4 | 20.9 | |||
| 200 | 18.0 | 29.0 | 39.8 | 21.8 | 37.8 | 18.7 | |||
| 250 | 17.3 | 32.8 | 38.3 | 19.8 | 36.3 | 16.8 | |||
| * 350 | 100 ± 20 | 16.3 | 39.8 | 36.1 | 16.9 | 34.1 | 13.9 | ||
| * 400 | 15.9 | 43.0 | 35.3 | 15.7 | 33.7 | 12.7 | |||
| * 450 | 100 ± 22 | 15.5 | 46.3 | 34.3 | 14.7 | 32.5 | 11.7 | ||
| * 500 | 15.2 | 48.9 | 33.8 | 13.8 | 31.8 | 10.8 | |||
| * 550 | 14.9 | 51.8 | 33.2 | 12.9 | 31.2 | 9.9 |
Remarks: * are the reference values
Cable Construction ( Outdoor Ethernet Cable )
Packaging Details:
1. 305M / Roll / Color Pull Box, 2 Boxes / Carton
2. 200M / 270M per Roll or 500M / Wooden Drum are Available
3. Customized Package are Available
Delivery time:
As for one 40'HQ container, we can finish them 10-15 days after receiving the deposit and we usually complete the order within 7-15days. It also depends on the items and the order quantities.
Payment terms:
1) L / C at Sight
2) T / T: 30% Deposit by T / T, 70% Balance by T / T Before Shipment
3) Western Union: 30% Deposit, 70% Balance Before Shipment
|
