Mineral Water Plant Ultrafiltration Filtration Uf Water System 300-1000psi

Categories Ultrafiltration Membrane System
Brand Name: CHUNKE
Model Number: CK-RO
Certification: CE ISO
Place of Origin: CHINA
Name: Factory supply mineral water plant ultrafiltration filtration dispenser uf water system
Material: SUS304
working temperature: 0-49℃
Membrane aperture: 0.01micron
pipe: PVC
working pressure: 300-1000psi
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Mineral Water Plant Ultrafiltration Filtration Uf Water System 300-1000psi

Factory supply mineral water plant ultrafiltration filtration dispenser uf water system


What is Ultrafiltration system?

Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces a liquid against a semipermeable membrane. A semipermeable membrane is a thin layer of material capable of separating substances when a driving force is applied across the membrane. Once considered a viable technology only for desalination, membrane processes are increasingly employed for removal of bacteria and other microorganisms, particulate material, and natural organic material, which can impart color, tastes, and odors to the water and react with disinfectants to form disinfection byproducts (DBP). As advancements are made in membrane production and module design, capital and operating costs continue to decline.

What's the working principle of Ultrafiltration membrane?

Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic,bacterium,virus,colloid and non-ion suspended solid.

Working process of UF Purification System:

Raw water→ Raw water tanks →Raw water pumps →Mechanical filter→ Activated carbon filter → 5 μ m security filter → Ultrafiltration device →(RO component→) Pure water tank →Water tank.

STEP<1>.Sand Filter: to use sand media down to 0.5-1mm. which filter size can be down to 200micron. some big suspended solids like coolloids, rust, mud, imparity etc can be trapped by media bed. and be removed from water.
STEP<2>.Carbon Filter: can absorb some organism, dissolved air, odor & color matter etc.
STEP<3>.
Softener: use cation exchange resin to remove Calcium, Magnesium etc to make soft water.
STEP<4>.
Micron Filter: use 5 -20 micron sediment cartridge filter / bag filter, to remove the passed suspended solid from pre-treatment. so that more safty for entrance of RO.
STEP<5>.Ultra-filtration system (UF membrane to trapped most of ions. to de-mineralize/desaltination etc. it will be PURE WATER from output.

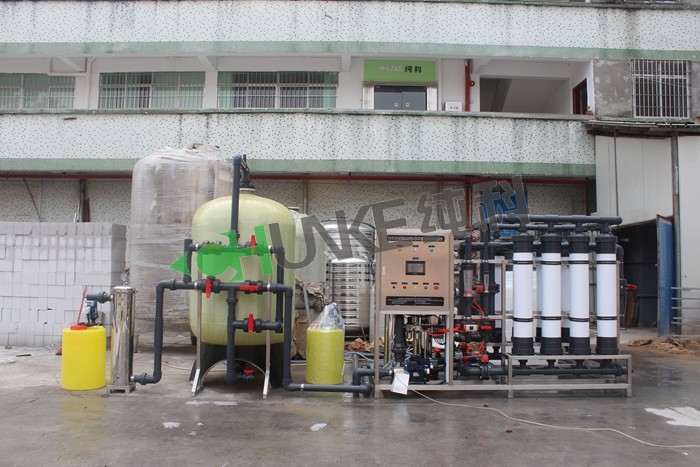

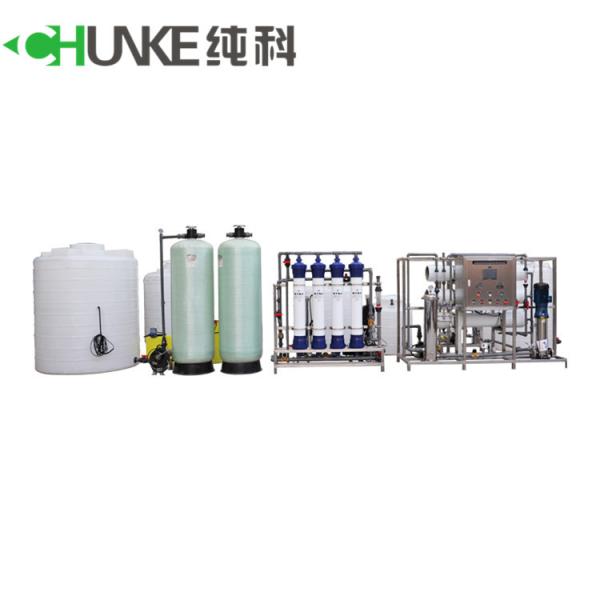

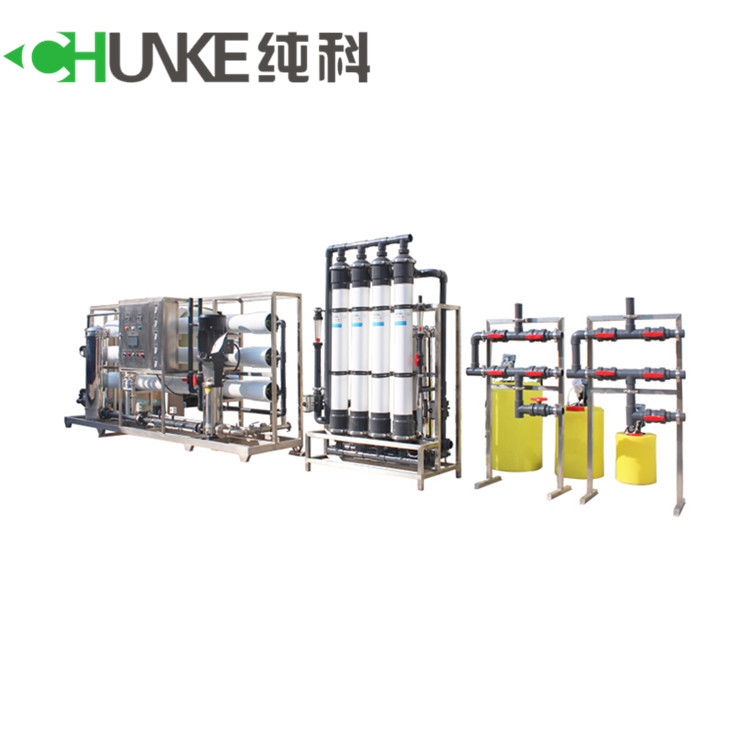

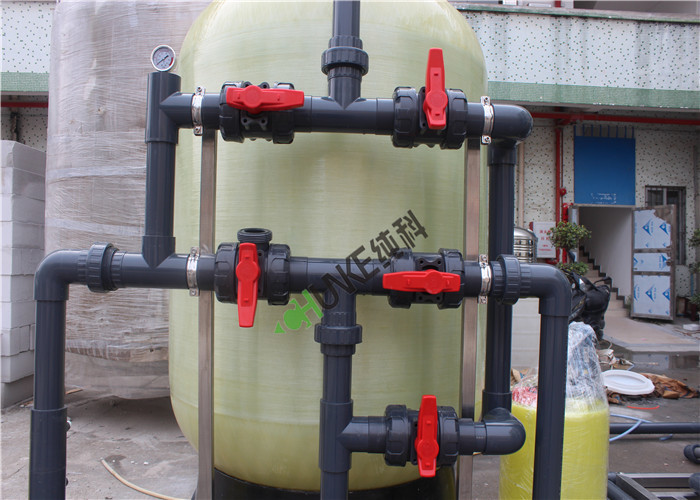

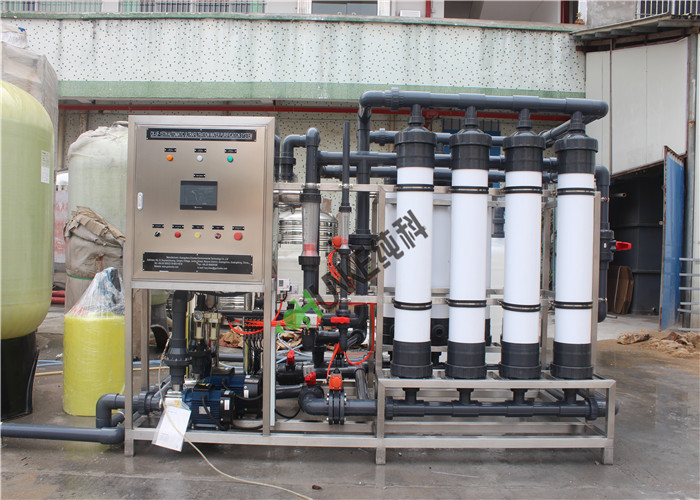

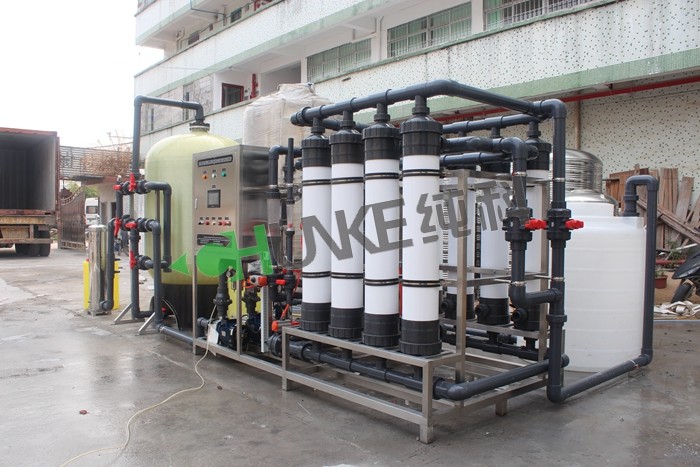

Ultrafiltration system picture:










Cheap Mineral Water Plant Ultrafiltration Filtration Uf Water System 300-1000psi for sale
