Hydraulic Pipe Pressing Machine DX69 Hydraulic Hose Crimping Machine Rubber Hose Assembly Making

Categories Hydraulic Hose Crimping Machine
Brand Name: MENSION
Model Number: MS - DX69
Certification: CE RoHS
Place of Origin: CN
MOQ: 1 Set
Price: Contact Us
Payment Terms: PayPal,T/T,WU,MG
Supply Ability: 1000 Sets Per Month
Delivery Time: 2 - 7 Working Days
Packaging Details: One Plywood For One Set
Crimping Range: 14 - 87mm
Hose Size: 2inch 4SH
Die Sets: 10
Color: Blue
Max. Opening: 25mm
Crimping Force: 640T
Product Name: MS - DX69 Crimping Machine
Application: Workshop
System Pressure: 31.5Mpa
Power: 3KW / 4KW
Size: 630*450*560mm
Weight: 190Kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Hydraulic Pipe Pressing Machine DX69 Hydraulic Hose Crimping Machine Rubber Hose Assembly Making

Hydraulic Pipe Pressing Machine DX69 Hydraulic Hose Crimping Machine
HYDRAULIC HOSE CRIMPING PRESS MACHINE MS - DX69
DESCRIPTION
The MS-DX69 is renowned for its high speed and precision crimping capabilities. This machine is designed for crimping hydraulic hoses and fittings ranging from 1/4" to 2" with four to six steel wire braided construction. Available in both single phase and three phase configurations to meet your specific requirements.
FEATURES
  • Precise crimping with substantial force
  • High stability with quality components
  • Operator-friendly design
  • Easy to operate with enhanced safety
  • Hydraulic back positioning system
TECHNICAL DATA
ModelDX-69 Crimping Machine
Crimping Range14 - 87 (mm)
Crimping Force640 (T)
Hose Size1/4 - 2 (inch) 4 Layers
Max. Opening25 (mm)
Die Sets10
Die Set Type69
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220 (V) / 380 (V)
Motor Power3 (KW) / 4 (KW)
Length630 (mm)
Width450 (mm)
Height560 (mm)
Weight190 (KG)

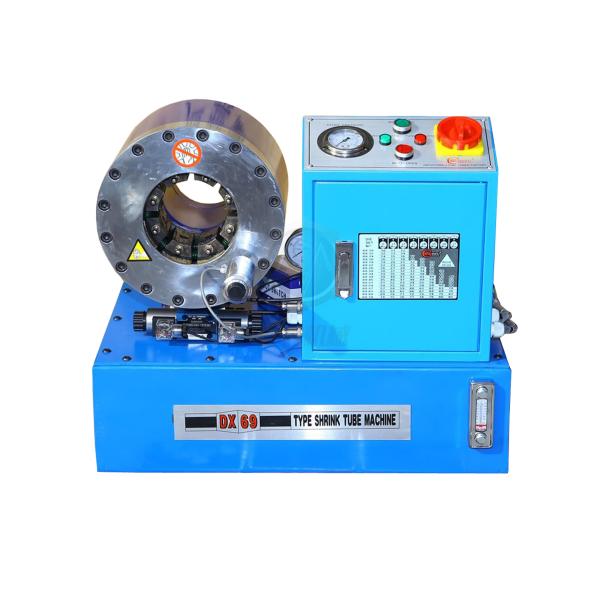

DX69 Hydraulic Hose Crimping Machine
69 CRIMPER DIE SETS
Die No.Crimping RangeLength
6*6 - 8 mm35
8*8 - 10 mm35
10*10 - 12 mm35
12*12 - 14 mm35
1414 - 16 mm60
1616 - 20 mm60
2020 - 22 mm60
2222 - 26 mm60
2626 - 30 mm70
3030 - 38 mm70
3838 - 46 mm70
4646 - 54 mm80
5454 - 64 mm80
6464 - 69 mm80
69*69 - 76 mm100
NOTE
  • Customized die sets are available
  • Special voltage options: 110V, 208V, 240V, 415V
  • * indicates non-standard die sets
DELIVERY STANDARD
  • Hose Crimping Machine
  • Foot Pedal
  • 10 Die Sets
  • Operation Manual
  • Consumable Accessories
OPTIONS
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control
