| Categories | Open Mill Rubber Mixing |
|---|---|
| Brand Name: | HHS |
| Model Number: | XK450 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 SET |
| Price: | USD8000-15000/SET |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SETS/MONTH |
| Delivery Time: | 30 working days |
| Packaging Details: | wood package /20/40GP/HC |
| After-sales service provided: | Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support |
| Type: | Open Mixing Mill |
| Roller hardness: | 50~60HRC |
| Bush: | nylon bush,bearing bush,ball bearing b |
| Voltage: | 220V/380V/450V |
| Power(w): | 50KW |
| Weight: | 11400KG |
| Dimension(l*w*h): | 5405*1740*1790mm |
| Warranty: | 1 Year |
| Condition: | New |
Used to mix Rubber, Silicone, Abrasives, and PVC compounds. Especially in rubber-processing, mills are built for different mixing processes.
1. As a open type two roller mixing mill, it consists of seat,
frame, roller, driving gear, lubricating device, cooling and
heating device, adjusting device of roller nip, safety brake, motor
and reducer, etc.
2. The roller, with smooth surface after polished,is made of
chilled cast iron. Steam and cooling water can be inputted in the
empty roller to adjust temperature of roller. Two rollers rotate
reversely with different speed, so that rubber materials are drawn
into the gap of the two rollers for processing.
Features
1. Roller: Made of chilled casting alloy and uniform thickness with good cooling effect.
2. Frame and cover: Made of steel casting or welded by steel plate, which have safety strength and high precision machinery.
3. Roller gap adjustment device: Options: manual or electric adjustment and gap display.
4. Reducer: fully-closed, hardened gear, forced lubrication, high safety factor, and less noise.
Technical parameters:
| Model | X(S)K-160 | X(S)K -250 | X(S)K -360 | X(S)K -400 | X(S)K -450 | X(S)K -550 | X(S)K-660 | |
| Diameter of rolls | 160 | 250 | 360 | 400 | 450 | 550 | 660 | |
| Working length of roll | 320 | 620 | 900 | 1000 | 1200 | 1500 | 2130 | |
| Working speed of front roll | 8.95 | 14.9 | 17.4 | 19.3 | 23.1 | 28.6 | 30 | |
| Fraction ratio of rolls | 1:1.35 | 1:1.1 | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.29 | 1:1.05 | |
| Max.gap(mm) | 5 | 8 | 10 | 10 | 10 | 15 | 15 | |
| Nip regulating mode | Manual | Manual | Manual | Manual or Electric | Manual or Electric | Manual or Electric | Electric | |
| Batch capacity(Kg) | 1-2 | 10-15 | 20-15 | 25-35 | 30-50 | 50-60 | 120-140 | |
| Motor | Power | 5.5 | 15 | 30 | 45 | 55 | 90/110 | 180 |
| Motor speed(r/m) | 1440 | 730 | 980 | 740 | 980 | 740 | 740 | |
| Reducer | Full closed type hardened gear speed reducer | |||||||
| Reduction ratio | 43 | 35 | 49.7 | 38 | 47.2 | 35.6 | 126.2 | |
| Overall dimension (mm) | 1120x920 X1295 | 3400x1270 X1620 | 4140x1770 X1700 | 4490x1700 X1750 | 5570x1900 X1750 | 6290x2330 X1780 | 7500x 2630x2060 | |
| Weight (kg) | 1100 | 4200 | 7600 | 9000 | 11500 | 20000 | 26500 | |

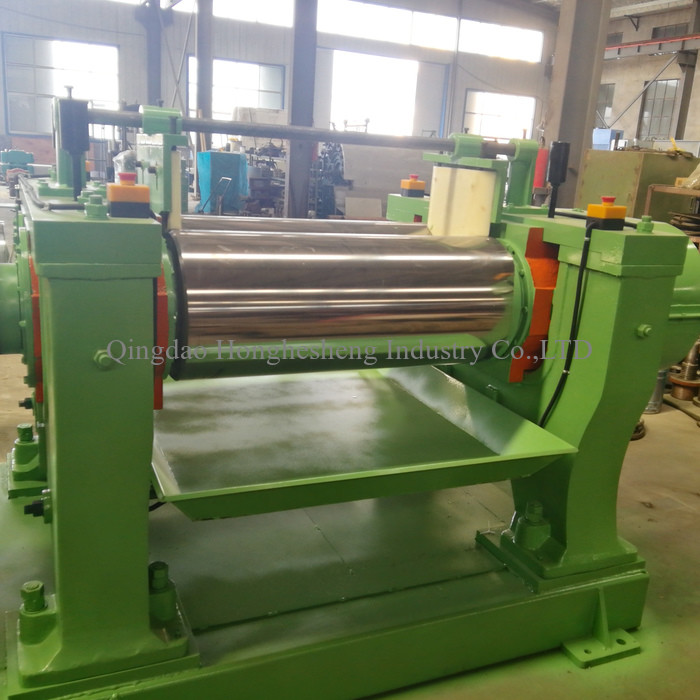

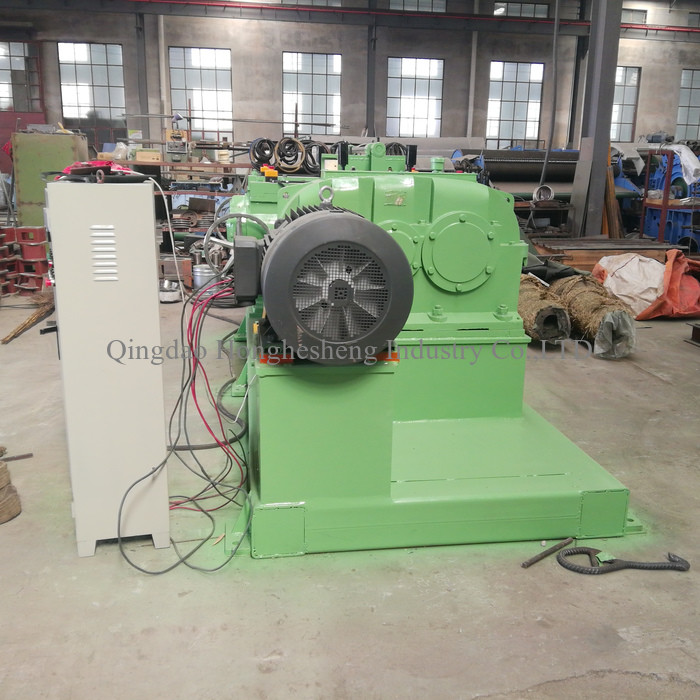

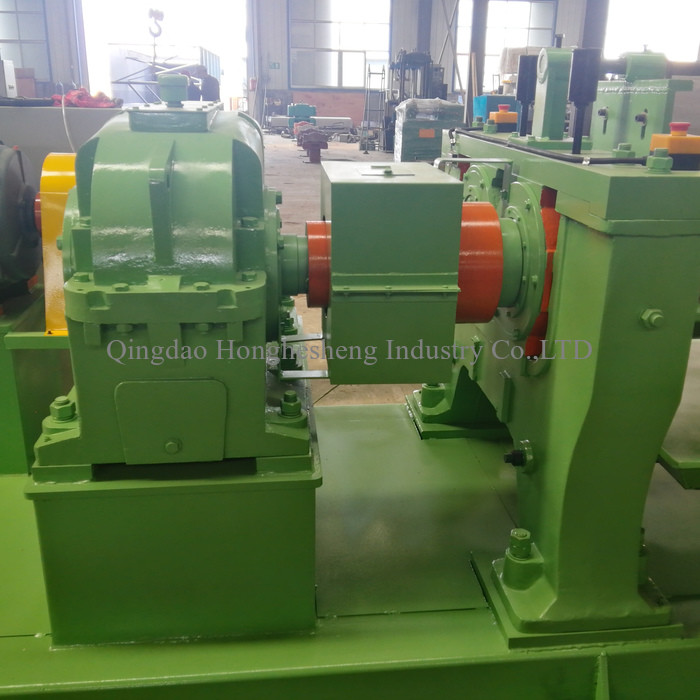

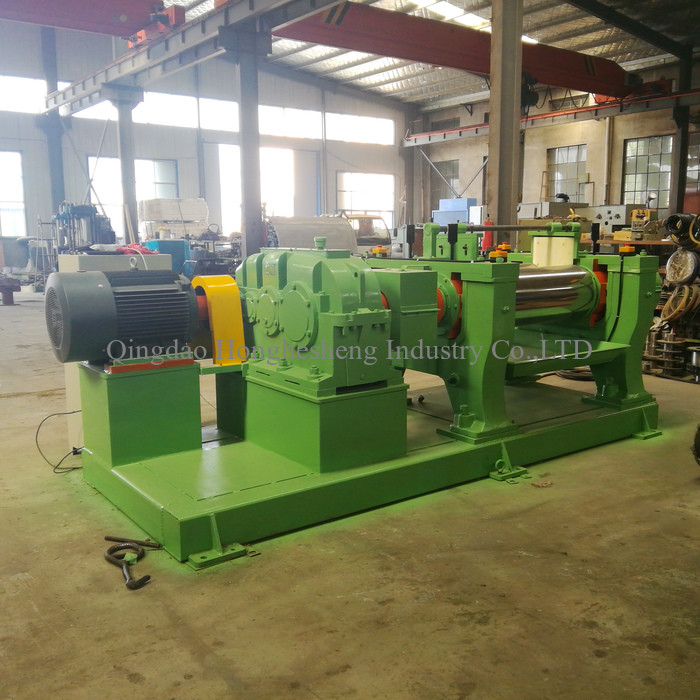

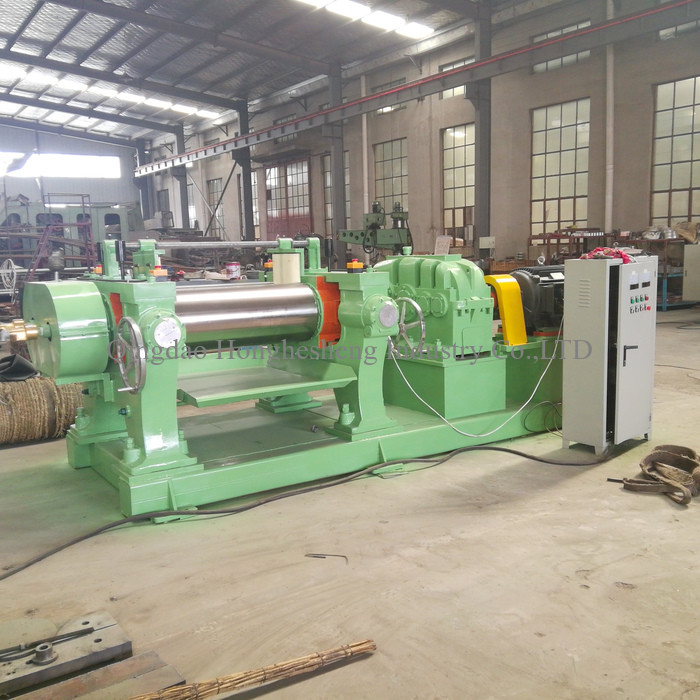

Detailed pictures
|
