| Categories | Perforated Metal Sheet |
|---|---|
| Brand Name: | BAODI |
| Model Number: | BD-PM5 |
| Place of Origin: | CHINA |
| MOQ: | 100 sheets |
| Price: | Negotiated |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sheets/month |
| Delivery Time: | 10-30 days |
| Packaging Details: | Plastic film inside, pallet outside. |
| Name: | Perforated Mesh |
| Material: | Carbon Steel / Aluminum / Stainless Steel |
| Hole Pattern: | Round Hole |
| Arrangement: | 45/60 staggered / straight line |
| Application: | Mining, Architectural, Security, Construction |
| Technique: | Perforated |
| Process: | Bending / Cutting / Punching |
| Hole Diameter: | 0.8-25mm |
| Sheet Thickness: | 0.5-3.5mm |
| Width & Length: | 1m x 2m |

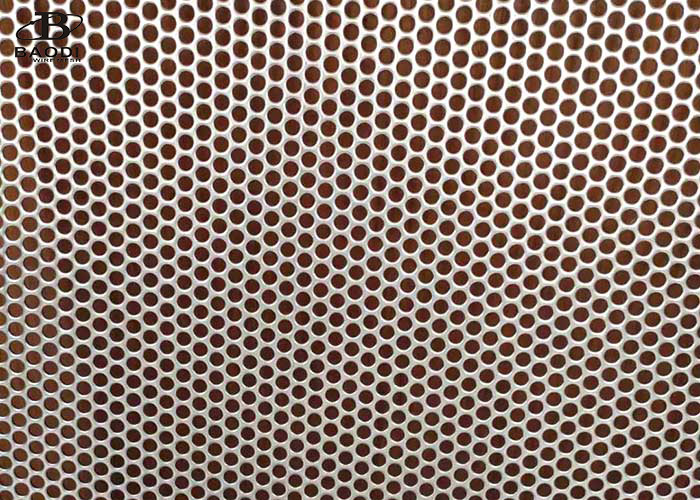

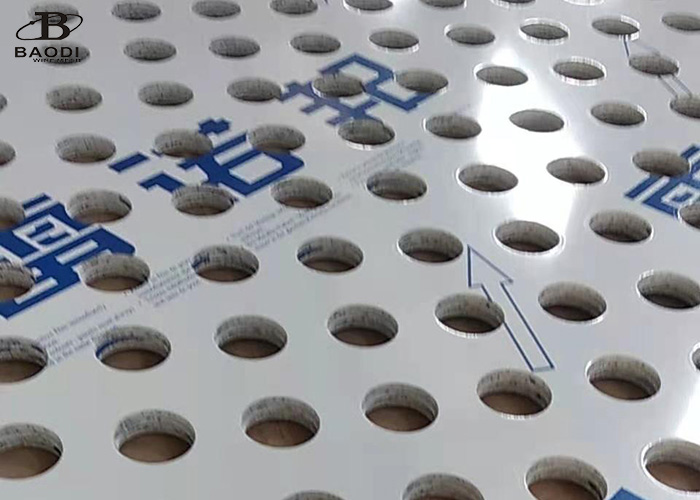

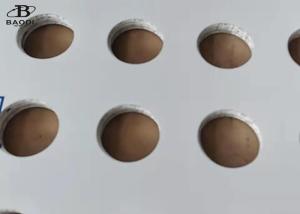

Round Pattern 1m x 2m Filter Screen Punching Plate Perforated Mesh
Product Description
Round hole Perforated Mesh is mainly used for screening grain, feed and medicine, as well as grinding sieve, ore sieve and I-shaped sieve for mining, water seepage filter net for football field lawn, light concave convex round hole net, platform, pedal, filter and various filter valves, etc.
Material: stainless steel, aluminum plate, stainless steel plate, hot and cold steel plate, copper plate, PVC plate film, etc

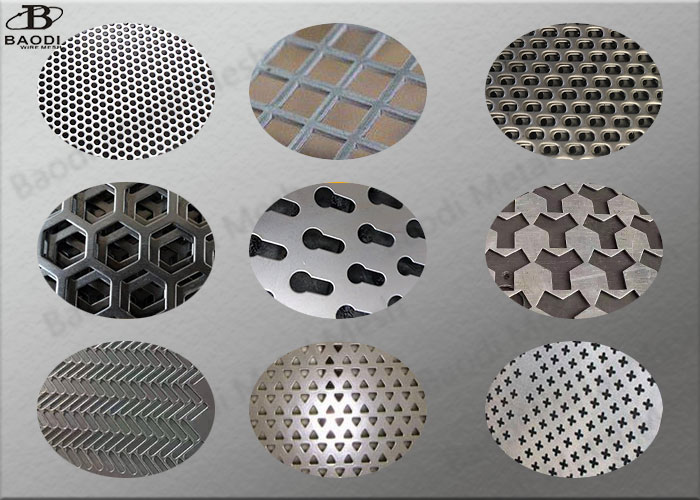

Hole types: long hole, round hole, square hole, triangle hole, fish scale hole, bridge hole, diamond hole, five angle hole, six angle hole, eight character hole, cross hole, nail hole, plum blossom hole, herringbone hole, I-shape hole and other special-shaped holes.
Features: light weight, antiskid, beautiful, good filtration performance.
| Perforated Mesh | |||
| Material: low carbon steel,stainless steel,aluminum,copper, PVC | |||
| Hole Pattern | Round hole,square hole, slotted hole | Hole size | 0.8-25mm |
| Plate Width | Maximum 1.5m | Plate Length | Maximum 3m |
| Thickness | 0.5mm-3.5mm | Packing | Plastic film inside,pallet outside |
| Plate material | Thickness of sheet(mm ) | Hole Dia.(mm) | Hole Distance(mm) | Width (m) | Length (m) | Porosity (%) | Weight (kg/m2) |
| Flat | 0.5 | 1 | 1 | 1 | 1 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 1 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 1 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 1 | 19.6 | 5 | |
| 0.8 | 2 | 3.4 | 1 | 1 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 1 | 19.6 | 9.4 | |
| 1.5 | 5 | 8.0 | 1 | 1 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 1 | 19.6 | 18.8 | |
| Stainless steel | 0.5 | 1 | 1 | 1 | 1 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 1 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 1 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 1 | 19.6 | 6.28 | |
| Aluminum | 0.5 | 1 | 1 | 1 | 1 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 1 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 1 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 1 | 19.6 | 4.23 |
Variety Patterns can be customized

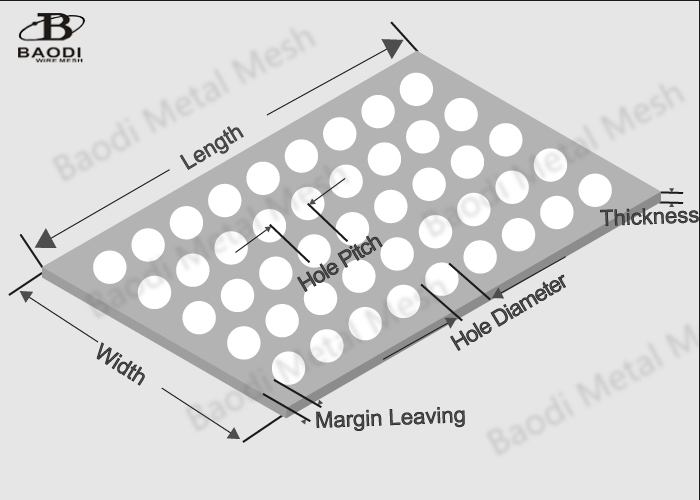

Factors for quotation
| material | hole shape |
| hole arrangement | open area |
| margin leaving | dimension(width x length x thickness) |
|
