| Categories | Vacuum Freeze Dryer Machine |
|---|---|
| Brand Name: | Nicole |
| Model Number: | NT - Vacuum Freeze Dryer |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD16390-62960 / set |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 30 Sets Per Month |
| Delivery Time: | 20 - 35 working days according to exact model and quantity. |
| Packaging Details: | Standard Export Package or According to customers' requirement. |
| Product name: | Industrial 380V Fruit Vegetables Food Vacuum Freeze Drying Machine |
| Application: | Dehydration |
| Voltage: | 380V or customized |
| Warranty: | 1 Year |
| Loading Capacity: | 50kg,100kg, 200kg, 300kg, 500kg, 1000kg, 2000kg |
| Working Vacuum: | ≤130Pa |
| Power Consumption: | >18kw |
| Vacuum Pump: | Rotary vane pump or Combined pump |

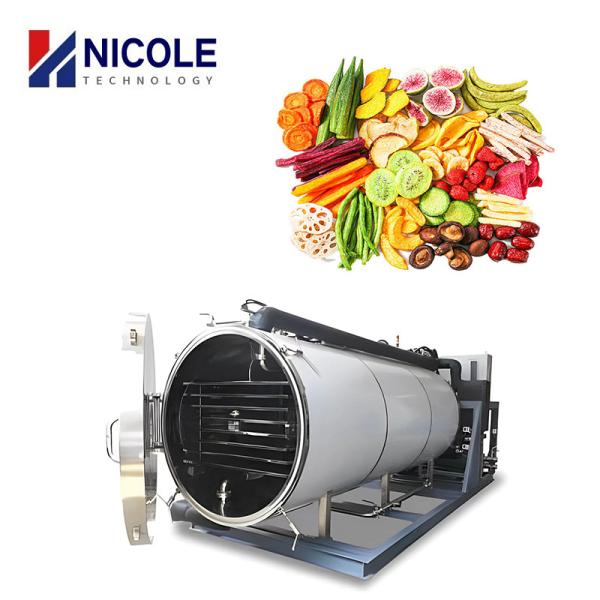

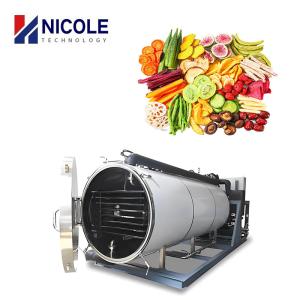

Industrial 380V Fruit Vegetables Food Vacuum Freeze Drying Machine
Product Description
The vacuum freeze drying machine system by the refrigeration system, vacuum system, heating system, electrical instrumentation control system. The main components of the freeze dryer are drying oven, condenser, refrigeration units, vacuum pump, heating/cooling devices, etc.
Work Principle
Vacuum freeze drying is a method of preserving substances by first freezing water-containing substances into solids and then causing the water in the solids to sublimate into a gas, removing the water. In the compressed air drying process, freeze drying is done by lowering the temperature of the compressed air so that the water in the compressed air is analysed out. The working principle of freeze dryer is the same as that of refrigerator, compressed air is frozen through compressed air pipeline and then the temperature of compressed air drops to the required temperature to meet the requirements of drying.
Product Features
♦ This machine use freeze-drying method to freeze-drying materials.
♦ Freeze-drying method is to quickly freeze the liquid in the
material into solid ice, vaporize the ice directly and remove the
gas continuously, so as to achieve the purpose of drying the
material.
♦ Freeze-drying is an excellent drying method. Freeze-dried
products can be stored at room temperature for a long time without
additives under sealed conditions.
♦ Freeze-dried products are porous and crisp. When using, add water
to restore its own shape, and its color, aroma, shape and activity
are basically unchanged.
Product Applications
Vacuum freeze drying technology in biological engineering, pharmaceutical industry, food industry, materials science and agricultural and sideline products deep processing and other fields has been widely used.
Technical Specifications:
| Model | NT-F5M | NT-F10M | NT-F20M | NT-F30M |
| Control Type | PLC+ human-computer interface | PLC+ human-computer interface | PLC+ human-computer interface | PLC+ human-computer interface |
| Working | Quick freezing | Quick freezing | Quick freezing | Quick freezing |
| Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Drying area (m²) | 5 | 10 | 20 | 30 |
| Loading capacity(kg) | 50 | 100 | 200 | 300 |
| External dimensions(m) | 3.8x1.2x1.9 | 5.8x1.7x2 | 7x1.7x2 | 9x1.7x2 |
| Tray quantity | 16 | 24 | 48 | 72 |
| Shelf temperature(℃) | -55~120 | -55~120 | -55~120 | -55~120 |
| Shelf medium | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil |
| Prefreeze temperature(℃) | -30~-60 | -30~-60 | -30~-60 | -30~-60 |
| Cold trap temperature(℃) | -50~-80 | -50~-80 | -50~-80 | -50~-80 |
| Vacuum pump | Rotary vane pump | Rotary vane pump | Combined pump set | Combined pump set |
| Working vacuum | ≤130Pa | ≤130Pa | ≤130Pa | ≤130Pa |
| Defrosting mode | Hot water spray | Hot water spray | Hot water spray | Hot water spray |
| Cooling Power(kw) | 9 | 18 | 25 | 34 |
| Heating Power(kw) | 6 | 12 | 24 | 36 |
| Total Power(kw) | 18 | 34 | 56 | 83 |
| Working Temperature | ≤40℃ | ≤40℃ | ≤40℃ | ≤40℃ |
About Us
Packing and Shipping:
1. Plastic film as inner packing, standard export wooden case as
outer packing.
2. By train, by ship or depends on customer's request.
FAQ
Q: How can we guarantee the quality?
A: Always final inspection before shipment and with one year
warranty.
Q: What can you buy from us?
A: A lot of food machinery. Industrial drying equipment, including
microwave dryers, hot air dryers, freeze dryers, etc. Extruder
production line, including puffed food production line, artificial
rice production line, pet food/fish feed production line, etc.
Q: How to install?
A: We can provide experienced engineers online guidance service. If
you need door-to-door installation, we can carry out overseas
installation and calculate all costs to customers.
Q: Will you help us if we meet any problem in the future
production?
A: Of course! You can contact me by mobile phone, WhatsApp, etc.,
we are always at your service. We will help solve your problem as
soon as possible!
|
