| Categories | Brush DC Worm Gear Motor |
|---|---|
| Brand Name: | SMART AUTOMATION |
| Model Number: | OEM |
| Certification: | CE |
| Place of Origin: | Changzhou CHINA |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Packaging Details: | To be negotiated |
| MOQ: | 50 |
| Price: | To be negotiated |
| Delivery Time: | To be negotiated |
| Payment Terms: | D/A, T/T, L/C,D/P |
| Warranty: | 3years |
| Port: | Shanghai |
| Speed(RPM): | customed |
| Continuous Current(A): | customed |
| Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, machine, automatic door |
| Type: | GEAR MOTOR |
| Torque: | customed |
| Construction: | Permanent Magnet |
| Commutation: | Brushless |
| Protect Feature: | Drip-proof |
| Efficiency: | IE 1 |
| Company Info. |
| CHANGZHOU SMART AUTOMATION MOTOR MANUFACTURING CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
NMRV030.80ZYT SERIES PM DC WORM GEAR MOTOR
80ZYT Motor General Specifications:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 (Option for IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
80ZYT Motor Main Technical Specifications:
| Model | Unit | 80ZYT01L | 80ZYT02L | 80ZYT03L | 80ZYT04L |
| Rated Voltage | VDC | 24v (option for 12v up to 220vdc) | |||
| Rated Speed | Rpm | 1500 | 1500 | 1500 | 1500 |
| Rated Torque | N.m | 0.5 | 0.8 | 1.1 | 1.3 |
| Rated Current | A | 4.5 | 7.5 | 10.5 | 12.5 |
| Output Power | W | 78.5 | 125.6 | 172.7 | 204.1 |
| No Load Speed | Rpm | 2000 | 2000 | 2000 | 2000 |
| Weight | Kg | 2.5 | 3 | 3.5 | 4 |
| Motor Length | Mm | 120 | 140 | 160 | 175 |
NMRV030.80ZYT01L Worm Gear Motor Specification:
| Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |
| Transmission Efficiency | 80% | 78% | 75% | 72% | 70% | 65% | 60% | 55% | 50% | 45% | 40% | |
| No Load Speed | Rpm | 400 | 266 | 200 | 133 | 100 | 80 | 66 | 50 | 40 | 33 | 25 |
| Rated Speed | Rpm | 300 | 200 | 150 | 100 | 75 | 60 | 50 | 37.5 | 30 | 25 | 18.75 |
| Rated Torque | N.m | 2 | 2.9 | 3.7 | 5.4 | 7 | 8.1 | 9 | 11 | 12.5 | 13.5 | 16 |
NMRV030.80ZYT02L Worm Gear Motor Specification:
| Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |
| Transmission Efficiency | 80% | 78% | 75% | 72﹪ | 70﹪ | 65﹪ | 60﹪ | 55﹪ | 50﹪ | 45﹪ | 40﹪ | |
| No Load Speed | Rpm | 300 | 200 | 150 | 100 | 75 | 60 | 50 | 37.5 | 30 | 25 | 18.75 |
| Rated Speed | Rpm | 2 | 2.9 | 3.7 | 5.4 | 7 | 8.1 | 9 | 11 | 12.5 | 13.5 | 16 |
| Rated Torque | N.m | 3.2 | 4.6 | 6 | 8.6 | 11.2 | 13 | 14.4 | 17.6 | 20 | 21.6 | 25.6 |
NMRV030.80ZYT03L Worm Gear Motor Specification:
| Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |
| Transmission Efficiency | 80﹪ | 78﹪ | 75﹪ | 72﹪ | 70﹪ | 65﹪ | 60﹪ | 55﹪ | 50﹪ | 45﹪ | 40﹪ | |
| No Load Speed | Rpm | 300 | 200 | 150 | 100 | 75 | 60 | 50 | 37.5 | 30 | 25 | 18.75 |
| Rated Speed | Rpm | 2 | 2.9 | 3.7 | 5.4 | 7 | 8.1 | 9 | 11 | 12.5 | 13.5 | 16 |
| Rated Torque | N.m | 4.4 | 6.4 | 8.2 | 11.8 | 15.4 | 17.8 | 19.8 | 24.2 | 27.5 | 29.7 | 35.2 |
NMRV030.80ZYT04L Worm Gear Motor Specification:
| Reduction ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | |
| Transmission Efficiency | 80﹪ | 78﹪ | 75﹪ | 72﹪ | 70﹪ | 65﹪ | 60﹪ | 55﹪ | 50﹪ | 45﹪ | 40﹪ | |
| No Load Speed | Rpm | 300 | 200 | 150 | 100 | 75 | 60 | 50 | 37.5 | 30 | 25 | 18.75 |
| Rated Speed | Rpm | 2 | 2.9 | 3.7 | 5.4 | 7 | 8.1 | 9 | 11 | 12.5 | 13.5 | 16 |
| Rated Torque | N.m | 5.2 | 7.6 | 9.7 | 14.4 | 18.2 | 21.1 | 23.4 | 28.6 | 32.5 | 35.1 | 41.6 |

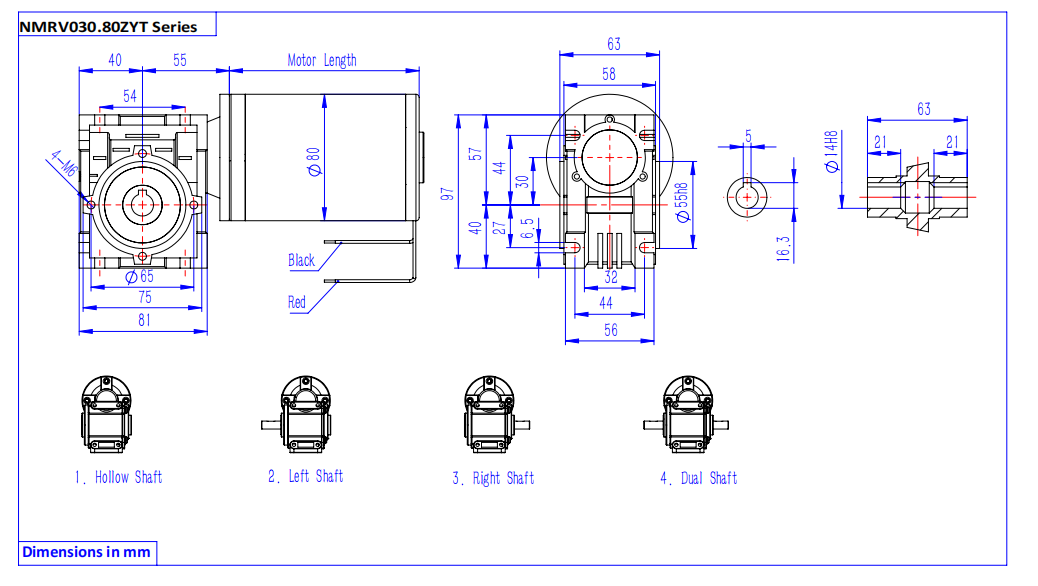

Drawing:
|
