Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation

Name: Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation
Brand: Zhufeng
Price: 0.29 USD

Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation

Categories	Electrical Wire Cable
Place of Origin:	Hebei, China
Brand Name:	Zhufeng
Model Number:	RVSP
Insulation Material:	PVC
Type:	LOW VOLTAGE
Application:	Fire alarm system, household appliances, small power tools
Conductor Material:	Copper
Jacket:	PVC
Rated voltage:	450/750V
Specification:	0.5/0.75/1/1.5/2.5mm²
Number of Cores:	Multi Core
Standard:	GB9330-1998
Certification:	ISO, CCC, CE, RoHS
Transport Package:	Wooden Drum
Packaging Details:	Packed in wooden case on pallet or according to your requirements for power cable
Supply Ability:	30000 Kilometer/Kilometers per Month
MOQ:	1000 meters
Price:	$0.29 - $1.35/meters

Contact Now

Add to Cart

Company Info.

Zhufeng Cable Daming Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Multi Core PVC Insulation Sheath Flexible Signal Cables for Electrical Instrumentation

Product Description

RVSP cable wire characteristics

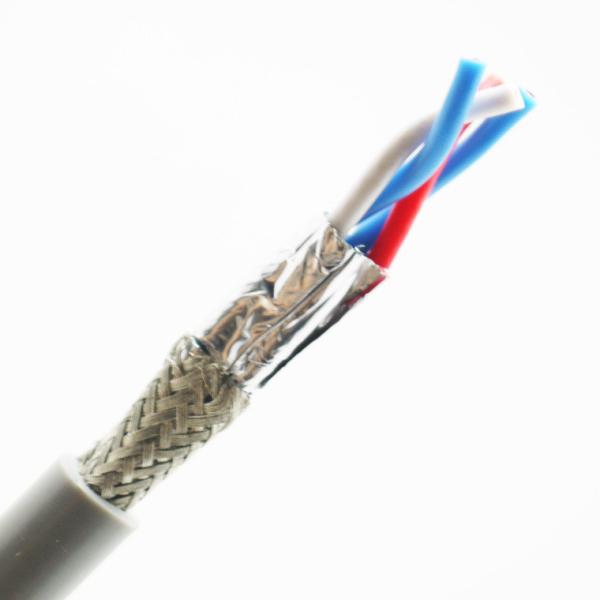

RVSP series adds a layer of copper wire shielding network on the basis of RVS, so it has a better effect in reducing signal transmission loss and shielding external interference than RVS series. However, due to the addition of copper wire shielding network, its cost is much higher than RVS series.

It is often used where the transmission of signals is very demanding.

The long-term permissible working temperature of PVC insulated cables shall not exceed 70℃, and the laying temperature of cables shall not be lower than 0℃.

The allowable bending radius of the cable whose outer diameter (D) is less than 25mm should not be less than 4 times of the outer diameter of the cable; The allowable bending radius of the cable with an outer diameter (D) of 25mm and above shall not be less than 6 times of the outer diameter of the cable.

The product is suitable for the fixed laying of power, daily electric appliance, instrument, instrument, telecommunication equipment, lighting circuit and automatic device, flexible cord for connection, flexible cord for installation and shielded wire for the occasion with strong interference.

Specification

Product name	Twisted-pair shielded cable	Insulation	PVC
Model	RVSP	Temperature	70°C
Rated voltage	450/750V	Standard	GB9330-1998
Specification	0.75/1/1.5/2.5mm²	Sheath	PVC
Core number	2/3/4 /5 twisted pair core	Shielding	oxygen-free cooper braided shield
Application	Connecting line of control, monitoring loop and protection line	Conductor	high quality Oxygen-free copper

Pure Oxygen-Free Copper Conductor to Ensure Conductivity.

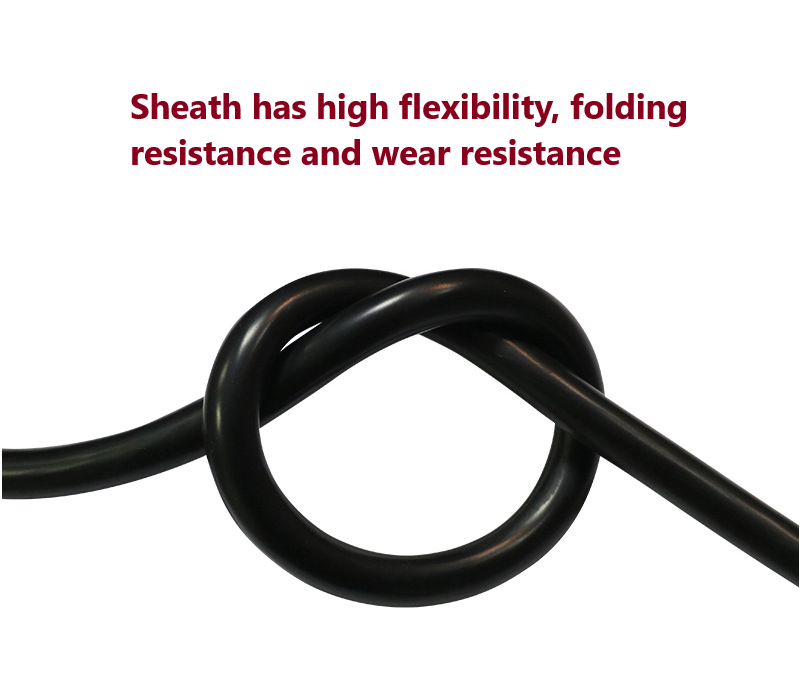

Environmentally-Friendly PVC Material with Excellent Insulation Performance, Scratch Resistance, Abrasion Resistance, Great Toughness.
