Name: Rvvp Shielded Flexible Cable Wire 300300V 300500V 450750V for PVC Insulated Wiring
Brand: Zhufeng
Price: 0.29 USD

Home > Electrical Wires >

Rvvp Shielded Flexible Cable Wire 300/300V 300/500V 450/750V for PVC Insulated Wiring

Categories	Rvv Rvvp Cable
Place of Origin:	Hebei, China
Brand Name:	Zhufeng
Model Number:	RVVP
Insulation Material:	PVC
Type:	LOW VOLTAGE
Application:	Construction, Industrial, Telecommunication, Computer, Car
Conductor Material:	Copper
Jacket:	PVC
Rated voltage:	300/300V 300/500V 450/750V
Specification:	0.3mm²/0.5mm²/0.75mm²/1mm²/1.5mm²/2.5mm²/4mm²/6mm²
Number of Cores:	Multi cores
Standard:	JB/T8734.5-2012
Certification:	ISO, CCC, CE, RoHS, VDE
Transport Package:	Wooden Drum
Packaging Details:	Packed in wooden case on pallet or according to your requirements for power cable
Port:	Tianjin port, Qingdao port, Shanghai port, Guangzhou port
Supply Ability:	20000 Kilometer/Kilometers per Month
MOQ:	1000 meters
Price:	$0.29 - $9.99/meters

Contact Now

Add to Cart

Company Info.

Zhufeng Cable Daming Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Rvvp Shielded Flexible Cable Wire 300/300V 300/500V 450/750V for PVC Insulated Wiring

Product Description

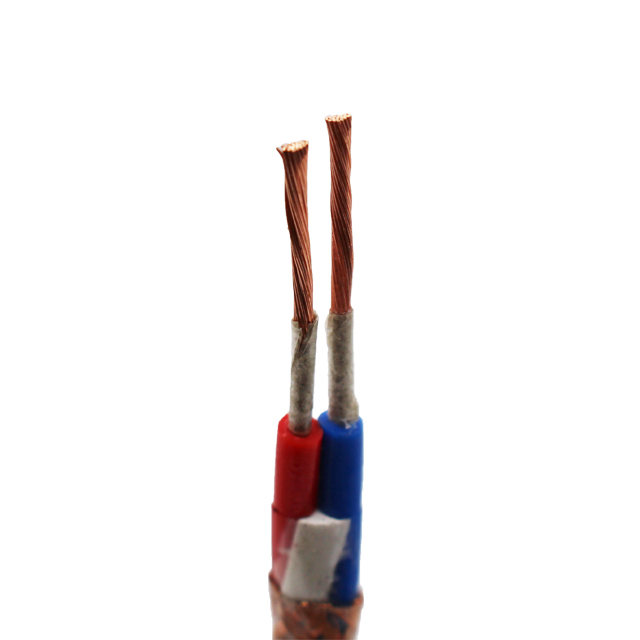

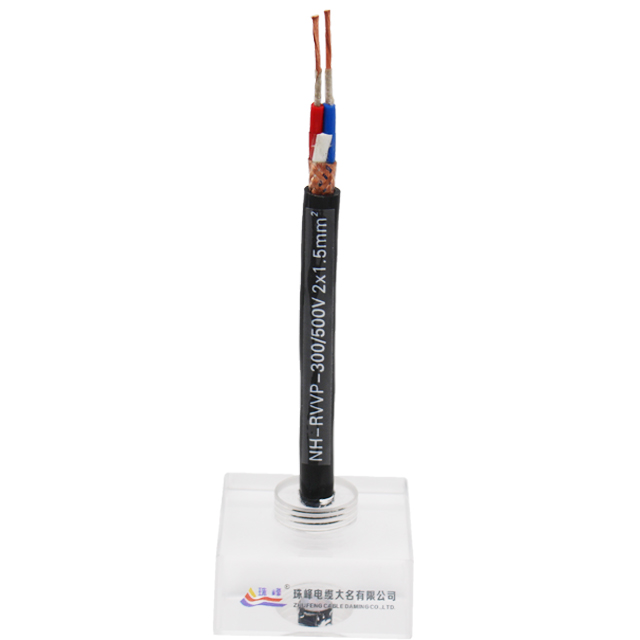

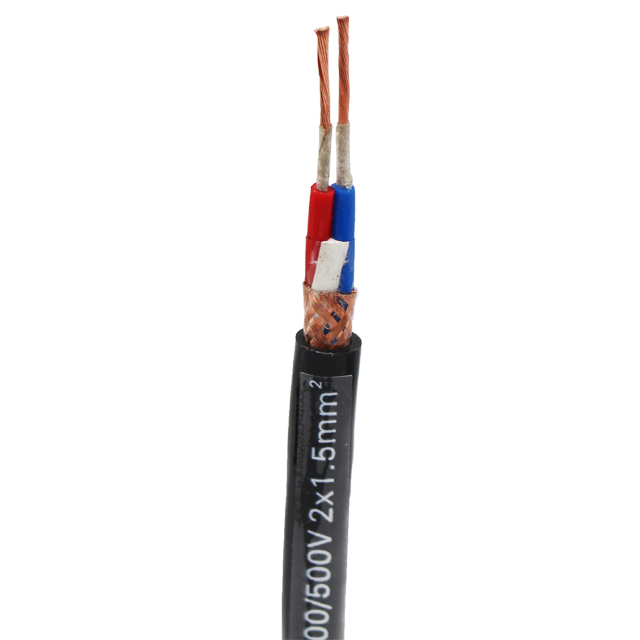

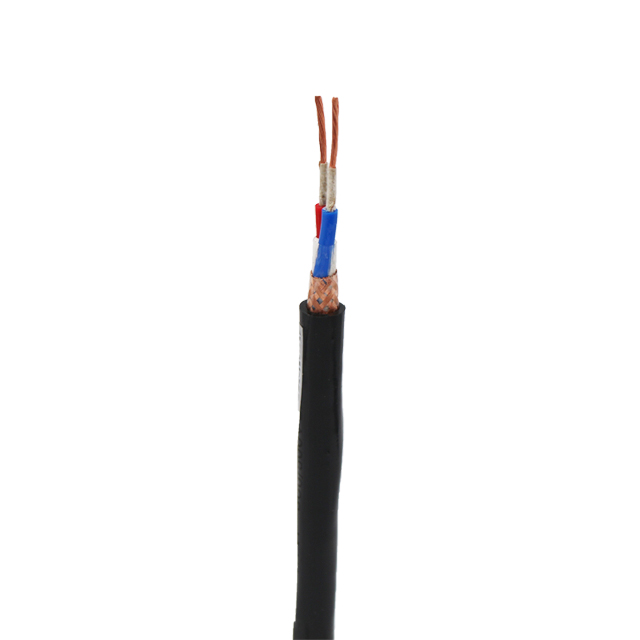

RVVP cable wire characteristics

RVVP cable is also called electrical connection anti-interference soft cable, is a kind of soft conductor PVC insulated line plus a shielding layer and PVC sheath cable, rated voltage is 300/300V generally.

Its texture is very soft, can be bent at will, but not easy to break, in daily life is relatively common, a wide range of applications.Good compatibility and can be used in harsh environments.

It is suitable for communication, audio, broadcasting, sound system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire protection system, etc., which need anti-interference line connection, efficient and safe data transmission cable.

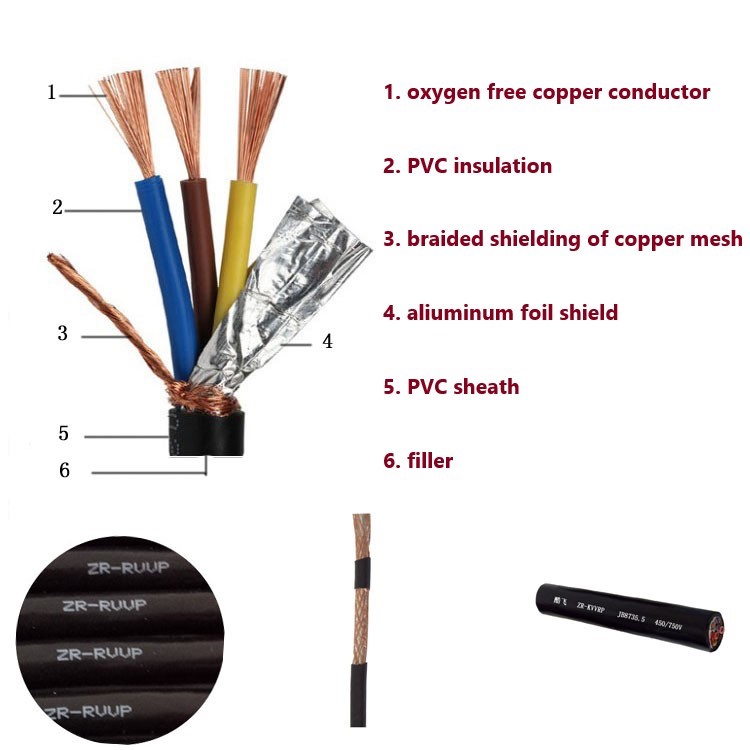

RVVP CABLE Technical Parameters

1. RVVP implementation standard JB/T8734.5-2012
2. PVC insulation
3. PVC sheath
4. The conductor is multi-core annealed bare copper stranded
5. Stranded composite cable with more than two cores
6. It can be shielded by aluminum foil after cable formation
7. Bare copper wire or tinned copper wire braided shielding net
8. The rated voltage is 300/300V
9. Normal working temperature does not exceed 70 ºC
10. Product CCC CE certification

Specification

Product name	Electrical connection anti-interference soft cable	Insulation	PVC
Model	RVVP	Temperature	70°C
Rated voltage	300/300V	Standard	JB/T 8734.3-2016
Specification	0.3/0.5/0.75/1/1.5/2.5/4/6/10/16mm²	Sheath	PVC
Application	Fire automatic fire alarm system detector lines, household appliances, small power tools, instruments and instruments and power lighting lines, connecting power amplifier and sound equipment, broadcast system transmission amplifier amplification processingof audio signals，etc.	Conductor	high quality Oxygen-free copper

Other productions

Company Profile

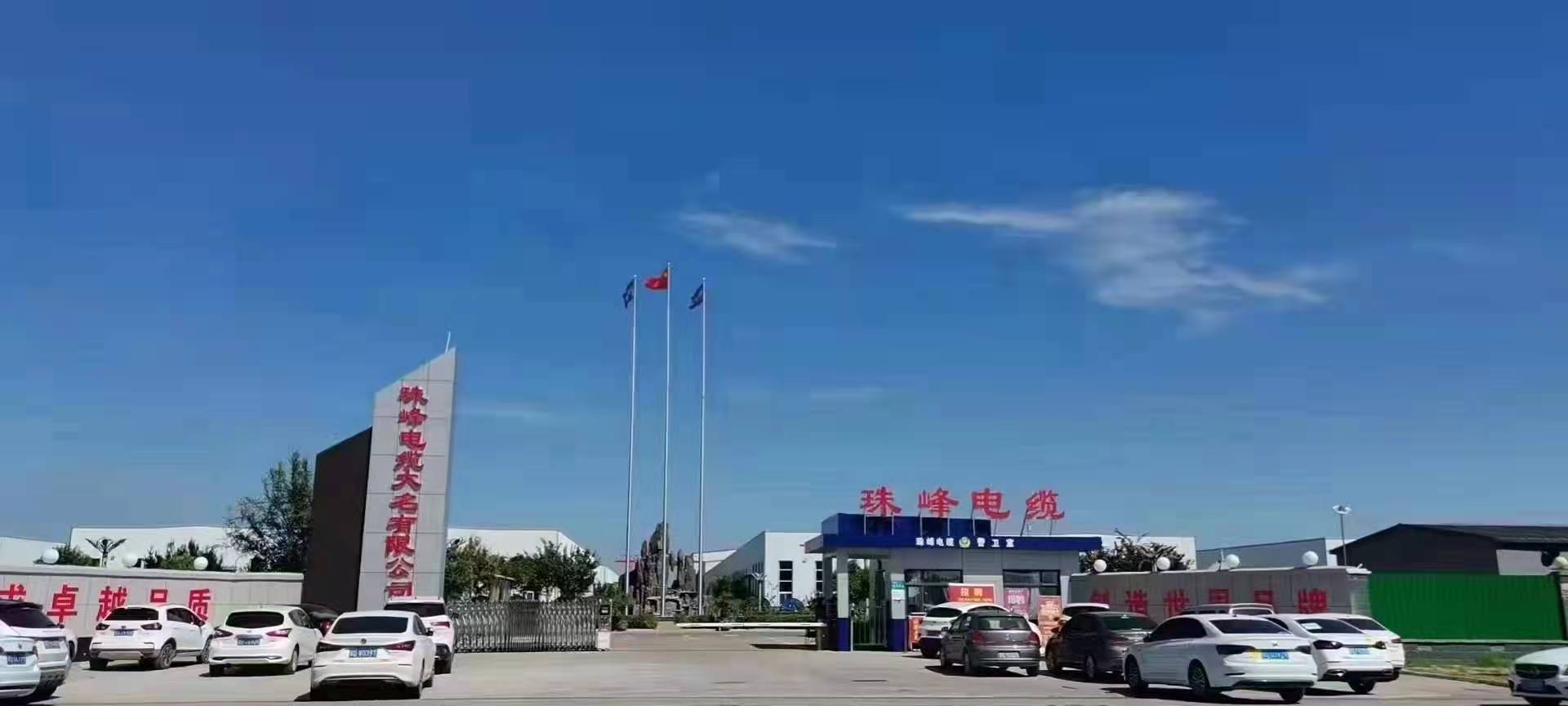

ZhuFeng Cable Daming Co.,Ltd. is a professional wire and cable manufacturer established in accordance with the modern enterprise system. It is located in Daming County Industrial Park,Handan City,Hebei Province. The company has more than 80 employees covering an area of 40,000 square meters, a building area of 25,000 square meters, fixed assets of 15 million yuan, dozens of existing production equipment, more than 30 sets of testing equipment and instruments, annual production capacity of hundreds of millions of yuan.

The company has passed the IS09001 international quality management system certification, and has obtained the industrial production license certificate and the national compulsory product CCC certification certificate.The products have passed the national testing center over the years,and the quality inspection departments of provinces and municipalities have passed the sampling inspection.

The main products produced by the company are: sheath wire,plastic copper wire, fire-fighting cable, fire-proof cable, power cable, control cable and other types of wire and cable.

With abundant manufacturing experience,strong technical force and complete testing equipment, we have provided high-quality products and services for many national key projects, and enjoyed high popularity and reputation among users. Products are widely used in power, construction, petrochemical, military, mechanical manufacturing, electronics, scientific research,communications and other fields. Best-selling in more than 30 provinces and municipalities throughout the country.

We sincerely welcome friends at home and abroad to cooperate with us and work together for a better future based on the principle of mutual benefit.

Customer Photos

FAQ

Q: Can you send samples?
A: Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.

Q: What are the certifications for your products?
A: We have ISO 9001, SGS, EWC and other certifications.

Q: How long does your delivery time take?
A: In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special
circumstances occur.

Q: Can I go to your factory to visit?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next
working day.
