| Categories | Euchner Safety Switch |
|---|---|
| Brand Name: | Euchner |
| Model Number: | NZ1VZ-2131E-M |
| Place of Origin: | Germany |
| MOQ: | 1 |
| Price: | variable |
| Payment Terms: | T/T |
| Supply Ability: | 30PCS/WEEKS |
| Delivery Time: | Negotiate |
| Packaging Details: | Carton |
| Description: | Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 Housing |
| Ordernumber: | 082123 |
| Actuating force: | 35 N |
| Actuation frequency: | max. 1200 1/h |
| Ambient temperature: | -25 ... +80 °C |
| Approach speed: | max. 20 m/min |
| nsertion depth: | 52 mm |
| Retention force: | 8 N |
| Gross weight: | 0,349kg |
| Company Info. |
| Xiamen ZhiCheng Automation Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

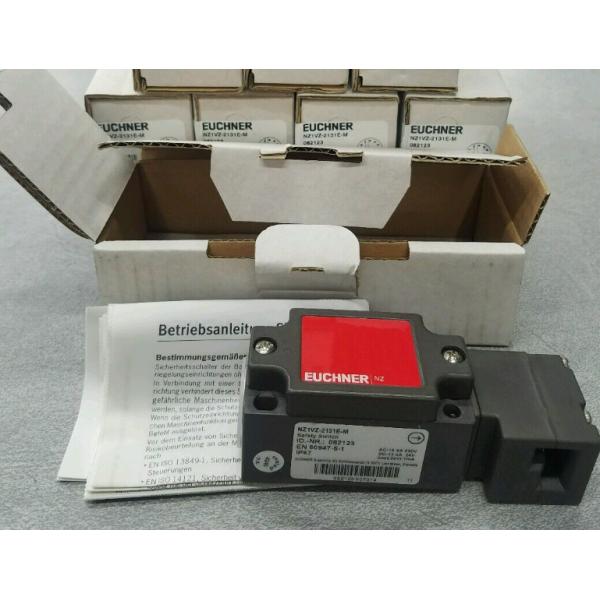

Euchner NZ1VZ-2131E-M Cable Entry M20 X 1.5 082123
Housing according to EN 50041
Cable entry M20 x 1.5
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 4 A 230 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach direction | A |
| Connection type | |
| 1 x | M20 x 1.5 |
| Number of door position NO contacts | 1 |
| Number of door position positively driven contacts | 3 |
| Extraction force | 35 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 2 x 10⁶ |
| Retention force | 8 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +80 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
