Cooling Water Pressure 0.2-0.3MPa Hot Feed Rubber Extruder for Inner Tube Manufacturing

Name: Cooling Water Pressure 0203MPa Hot Feed Rubber Extruder for Inner Tube Manufacturing
Brand: huicai
Price: 8 USD

Cooling Water Pressure 0.2-0.3MPa Hot Feed Rubber Extruder for Inner Tube Manufacturing

Categories	Rubber Extruder Machine
Condition:	New
Plastic Processed:	PE, PVC, Rubber
Application:	rudder extruder
Screw Design:	Single-screw
Screw Material:	38CrMoAlA High quality nitriding steel
Screw diameter (mm):	150
Screw L/D Ratio:	4.4
Screw Speed (rpm):	81 rpm
Showroom Location:	India, Russia, Thailand, Sri Lanka, Ukraine
Place of Origin:	Shandong, China
Brand Name:	huicai
Voltage:	220/380V
Dimension(LWH):	700x2000x1200mm
Power (kW):	55
Weight:	4500 KG
Warranty:	1 Year
Key Selling Points:	High-accuracy
Applicable Industries:	Manufacturing Plant, Rubber Product Plant
Video outgoing-inspection:	Provided
Warranty of core components:	1 Year
Core Components:	Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox, Screw
Machinery Test Report:	Provided
After-sales Service Provided:	Engineers available to service machinery overseas
Screw diameter:	115mm
L/D:	4.8:1
Max. screw rotational speed:	60r/min
Motor power:	22kW
Motor speed:	1000r/min
Steam pressure:	0.3-0.4MPa
Cooling water pressure:	0.2-0.3MPa
Max. production:	420kg/h
Packaging Details:	wood pakcing,fumigation-free wooden cases
Port:	qingdao
Supply Ability:	50 Set/Sets per Year Rubber Extruder Machine Manufacturers
Price:	$8,800.00/sets 1-1 sets
MOQ:	1

Contact Now

Add to Cart

Company Info.

Qingdao Huicai Machine Manufacture Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Cooling Water Pressure 0.2-0.3MPa Hot Feed Rubber Extruder for Inner Tube Manufacturing

♥ Qingdao HUICAI Cooperate Sincerely With You ♥

♦Application:

The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.to ensure the safety of the roller of the rolling mill. In the process of rolling,the threshing of the screw rod promotes the uniform plasticization of the rubber,and cool perservation by water can be adopted for stablizing the process.

♦Features:

♦Screw made of special steel is with nitrogen treatment,durable.

♦Jacketed type barrel can be cooled for cooling the rubbers effectively.

♦Double head strainer to be quickly and easily exchanged.

♦Smoothly running and high output.

♦Equipped with die-head auto opening system when electric power is cut off.

♦The main technical parameters:

Type	HBXJ-65	HBXJ-85	HBXJ-115	HBXJ-150	HBXJ-200	HBXJ-250
Form of screw&screw thread	Double-head equaldpth convergent type	Double-head equidistant unequaldepth tpype	Double-head convergent type	Double -head unequaldepth convergent type	Double-head convergent type	Double-head convergent type
Screw diameter(mm)	65	85	115	150	200	250
Length-diameter ratio of screw	4	4.3	4.8	4.43	4.35	4.5
Compression ratio		1.3	1.3	1.34
Screw rational speed(r/min)	20/2735/47	28/40/56/80	33/46/60	27-81	22.4-67.2	19.7-59.1
Motor power(KW)	7.5	10/14	22	Frequency control 18.3-55 Moter	Frequency control 25-75 Moter	Frequency control 33.3-100 Moter
Production capacity(kg/h)	50-80	62-270	100-420	700-1200	2200	3500
Stream pressure(Mpa)	0.3-0.4	0.4-0.6	0.4-0.6	0.6-0.8	0.6-0.8	0.6-0.8
Cold water pressure(Mpa)	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.3	0.2-0.4	0.2-0.4
Compressed air pressure					0.6	0.6
Size(LXWXH)(mm)	1630x604x1050	2050x700x1200	1630x604x1050	3411x814x1470	4564x1800x1750	4950x1150x1483
Weight(kg)	1200	2500	3000	5000	7300	11400

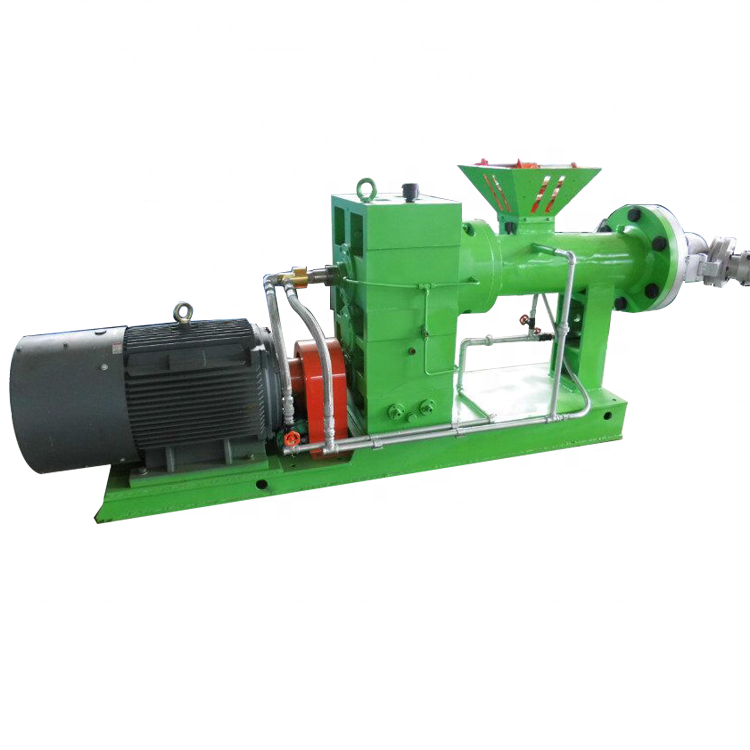

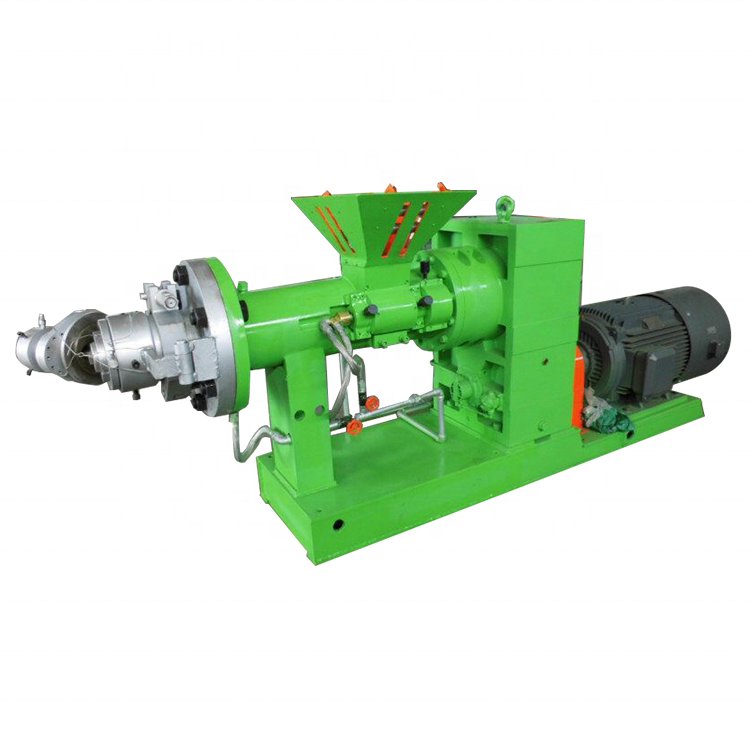

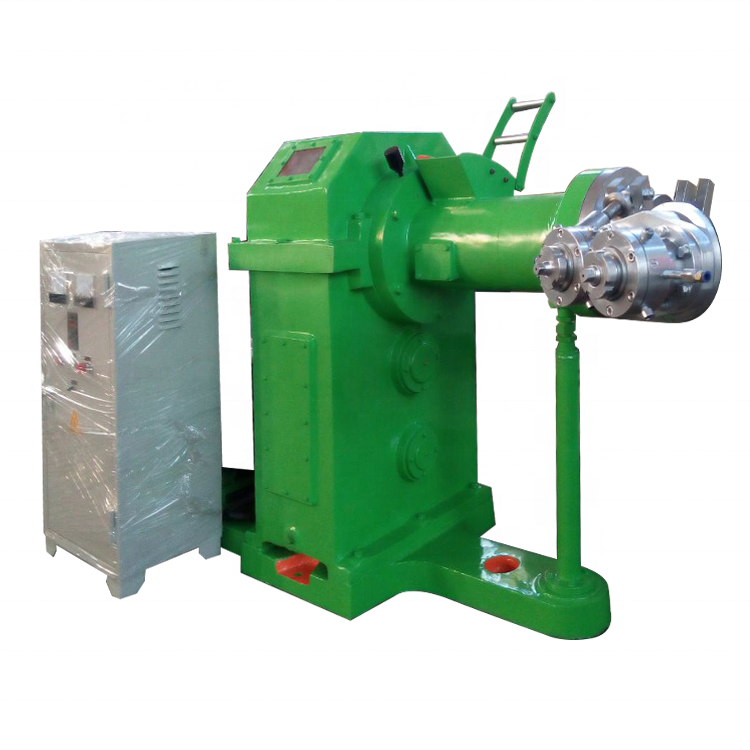

♦Machine Pictures:

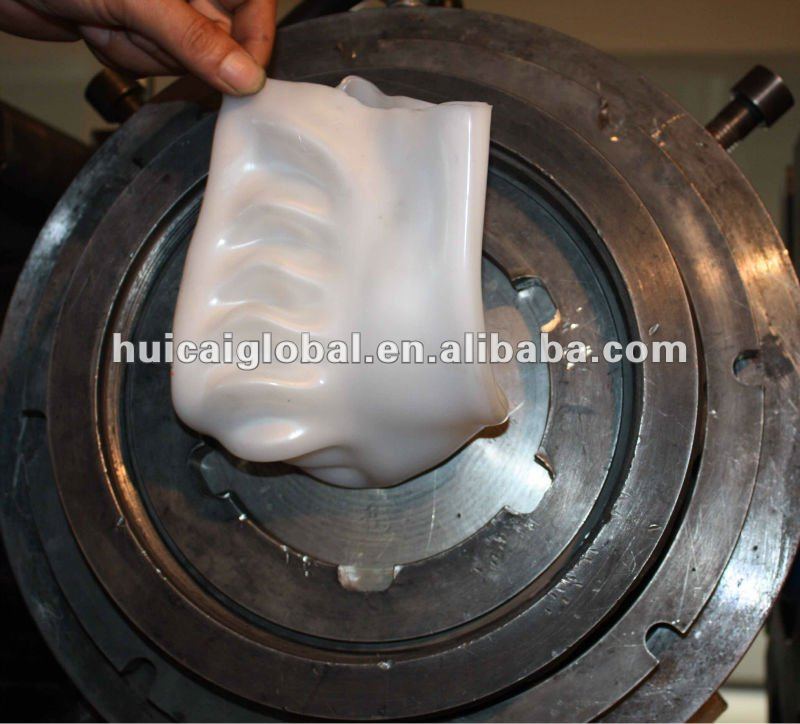

♦Product Pictures:

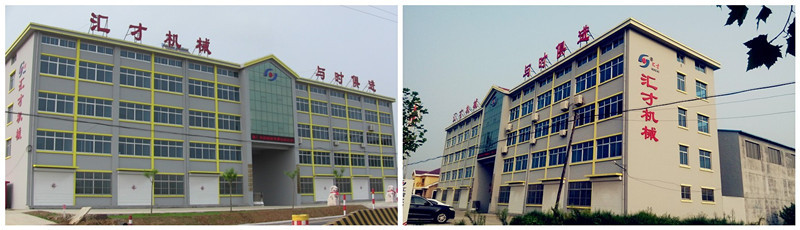

♦ Company Information :

(1) Qingdao HUICAI Machinery Manufacturing Co., Ltd. was founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) a one-year warranty and long-term technical support;
(5) supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, broken plastic machine, rubber refiner, rubber kneading machine, rubber injection molding machines, vacuum hot press molding machine, hydraulic machine, rubber tableting machine, jaw vulcanizing machine malfunction, pre-curing equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line, sidewall belt production line, molding line conveyor; batch closed cooler (cold); cut plastic machine;
(6) The company has import and export rights, the products are exported to countries and regions in the United States, South Korea, Japan, Thailand, Germany;
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.

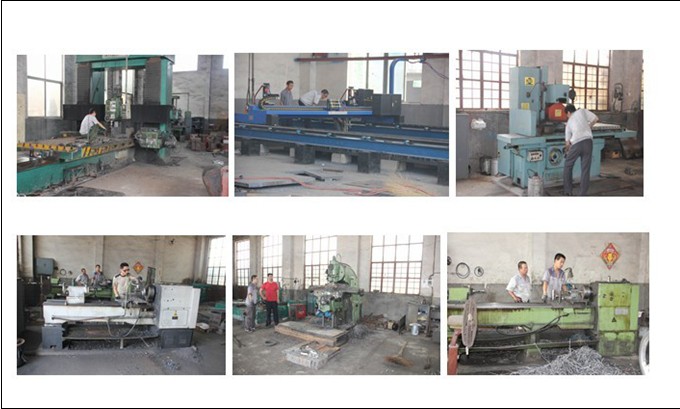

♦Workshop Pictures:

Foreigners Visit:

♦ Contact us ! ♦

♥ We can according to all your requirements, design your machine you require!

♥ If you are interested in our products, please contact me !
