| Categories | Sticker Label Die Cutting Machine |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | XPX |
| Certification: | CE Certificate |
| Supply Ability: | 50 Piece/Pieces per Month |
| Price: | $20,000.00 - $40,000.00/pieces |
| Model Number: | MDC-360 |
| Dimension(L*W*H): | 5200x1500mmx2000mm |
| Weight: | 5500 kg |
| Warranty: | one Year |
| Production Capacity: | 100 m/min |
| Machinery Test Report: | Provided |
| Warranty of core components: | 1 Year |
| Function: | hot stamping |
| Application: | Label Printing |
| Color: | Black |
| Power supplier: | 3phases 380V 32A |
| Company Info. |
| Shenzhen XPX Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

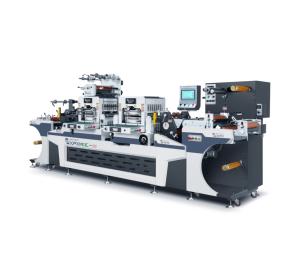

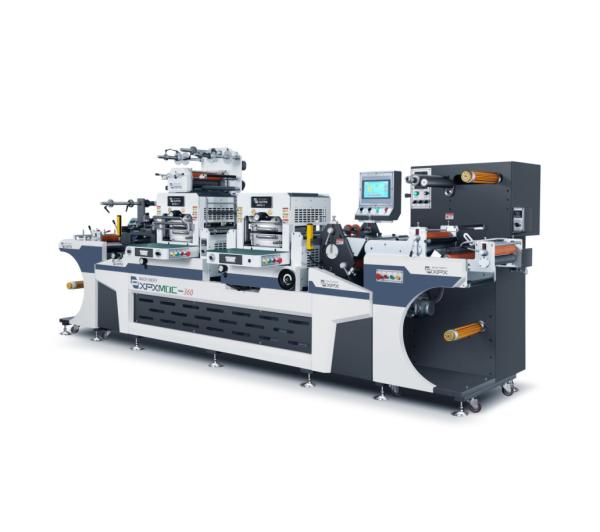

MDC-330 Automatic Flatbed Label Die Cutting Machine
MDC-330 high speed die cutting machine is suitable for die cutting and cutting kinds of labels .
It is widely applied to the label printing industry and electron indursty, such as adhesive label, nylon membrane trademark and the radium anti-fake trademark. etc
1). Using CNC drive system and accurate electric eye sensor tracking, simple operation, high efficiency, energy saving, low noise
2). Easy to operate and fast. A process to complete the winding, hot stamping, coating, die cutting, waste volume, rewinding and so on.
3) Easy maintenance, automatic supply lubrication system to prevent high-speed machine wear.
4). The use of advanced automatic control system, the paper is used up automatically stop, the paper is used up automatically stop
Pre-design count. Speed and length can be freely adjusted.
5). Japanese servo motor, CNC drive.
MDC-330 Automatic Flatbed Label Die Cutting Machine
MDC-330 High speed die cutting machine is suitable for die cutting and cutting a kind of labels .
It is widely used to the label printing industry and electron indursty, such as The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark. etc
| SPECIFICATIONS FOR SH-330 DIE CUTTING MACHINE | |||
| Model | SH-330 | Height of die | 7mm-23mm |
| Max feeding width | 330mm | Subplate thickness | 0.5-3mm |
| Max paper length | 260mm( left station) 330mm( right station) | Precision | ±0.1mm |
| Speed | 400times/min | Voltage/current | 3 phase 380V/32A |
| Reverse hot stamping speed | 38m/min | Main motor power | 7.5KW*2 |
| Max unwinding diameter/meter | 600mm/2000M | Total power | 20KW |
| Max rewinding diameter/meter | 600mm/2000M | Machine size | 4000*1200*1800mm |
Standard accessories
| NO. | NAME | QTY | UNIT | NO. | NAME | QTY | UNIT |
| 1 | Unwinder | 1 | Set | 6 | Main-machine interface | 1 | Set |
| 2 | Rewinder | 1 | Set | 7 | secondary die cutting device | 1 | Set |
| 3 | Die cutting upper and lower plate | 1 | Set | 8 | corundum paper roller | 1 | Set |
| 4 | Horizontal unwinding induction box | 1 | piece | 9 | Reverse hot stamping device | 1 | Set |
| 5 | Horizontal rewinding induction box | 1 | piece | 10 | Hot stamping heating plate | 1 | Set |
Q1: How do you control the items quality?
A1: Each machine strictly tested one by one before shipping.
Q2: What is the delivery time?
A2: as normal 25days after confirm the payment
Q3: when we receive the box, find any items missing or defective,
how should we do?
A3: please contact us ASAP, we will check and give you best
solution soon.
Q4: what is your main product?
A4: We are a professional manufactuer for the hot stamping and die
cutting machine
Q5: What is the payment method?
A5: T/T, Western Union, Money Gram, PayPal and so on.
Q6: What is the shipping method?
A6: FOB, CFR, CIF, DHL, TNT and so on, also according to your
requirements.
Q7: What is quality guarantee policy?
A7: 12 months guarantee for all goods from our company, but we do
not accept any broken by man.
Q8:How can visit our company ?
A8: we are located in Shenzhen ,it is very closed to HK and Guangzhou ,If you want to visit my company ,
just call me Rita chen:+86-13823651762,we can pick you up to my company.
|
