| Categories | Cargo Truck |
|---|---|
| Brand Name: | FOTON |
| Model Number: | BJ1030V6JB5-DA |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 Piece |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs/year |
| Delivery Time: | Full Payment 15-30 Work Days |
| Packaging Details: | by Sea/by Bulk/by Frame/Container |
| Engine: | 4A2-88C53 |
| Drive Type: | 4X2 |
| Tank volume: | 60L |
| Transmission: | 5T20 |
| Tire: | 185R15 8PR |
| Horsepower: | 120hp |
| Wheel base: | 2850mm |
| Color: | customers customize |
| Service: | In addition to wearing parts, free maintenance for one year |

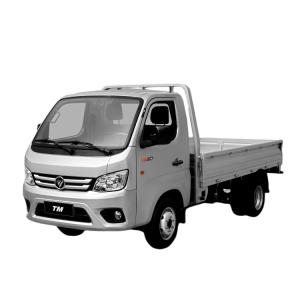

FOTON Lorry Truck 4×2 150hp Diesel Euro II Single Cab Flatbed Mini Truck
Product Advantages
The quality of the Foton micro-truck is good, because the body materials of this car are more solid, the safety factor is higher, the engine power is stronger, the operation is more stable, and the fuel consumption is lower, and the overall cost performance of the car is higher.
Product Parameters
| Vehicle model | BJ1030V6JB5-DA | |
| Cabin | Left hand-single row-1620 | |
Whole vehicle main dimensions | Overall dimensions (L×W×H)mm | Chassis: 5005×1725×1945 Tablet: 5146×1830×1992 Van: 5220×1850×2625 |
| Driving type | 4×2 | |
| Wheel base(mm) | 2850 | |
| Wheel track (front/rear)mm | 1410/1320 | |
| Weight data | Chassis weight (kg) | 1460 |
| Persons in cab | 2 | |
| Gross vehicle weight(kg) | 3495 | |
| Whole vehicle main performance | Max. speed(km/h) | 100 |
| Engine | Model | 4A2-88C53 |
| Fuel form | Diesel | |
| Emission Standard | Euro II | |
| Displacement(L) | 2.2 | |
| Rated Powe[kw/HP] | 65 | |
| Max torque [N•m(r/min)] | 240 | |
| Gearbox | Model | 5T20 |
| Clutch | Type | φ255×φ160,Single piece dry diaphragm spring |
| Front axle | Type | 1.5T |
| Rear axle | Type/Main reducetion ratio | 2.5T/4.33 |
| Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring / 3 |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring +Cartridge shock absorbers/ 5+2 | |
| Steering gear | Recirculating ball type | |
| Braking system | Service brake | Front disc and rear drum hydraulic brake |
| Parking brake | Central drum brake | |
| Auxiliary brake | Vacuum assisted | |
| Wheels and tyre size | 185R14 | |
| Fuel tank (L) | 60L | |
| Basic equipment | Manual doors and windows and rearview mirror/retractable machine/ABS+EBD/power steering | |
| Optional configuration | Manual air conditioner, shroud | |
| cargo box | Tablet :3300×1710×360 Van :3300×1710×1700 | |

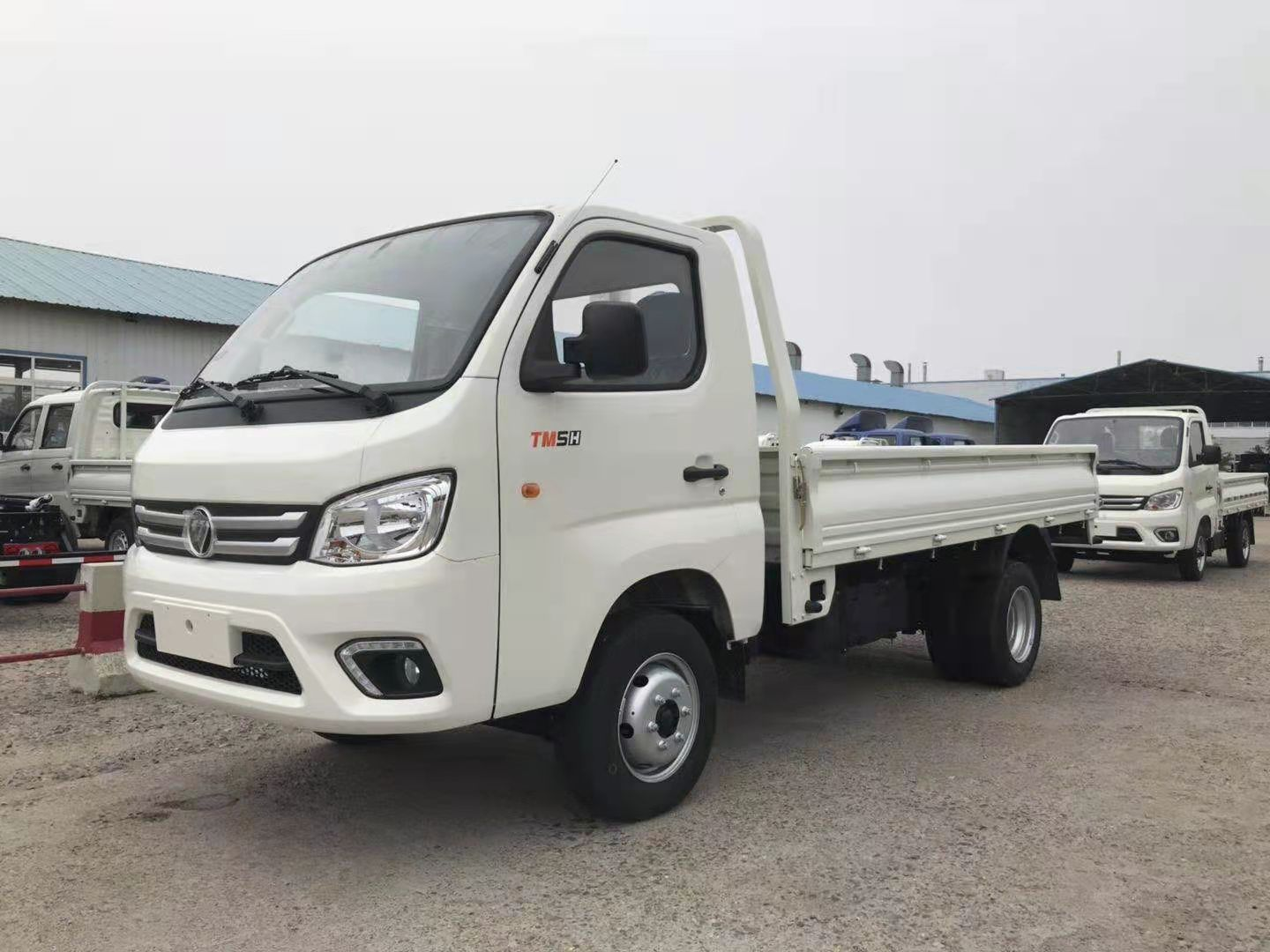

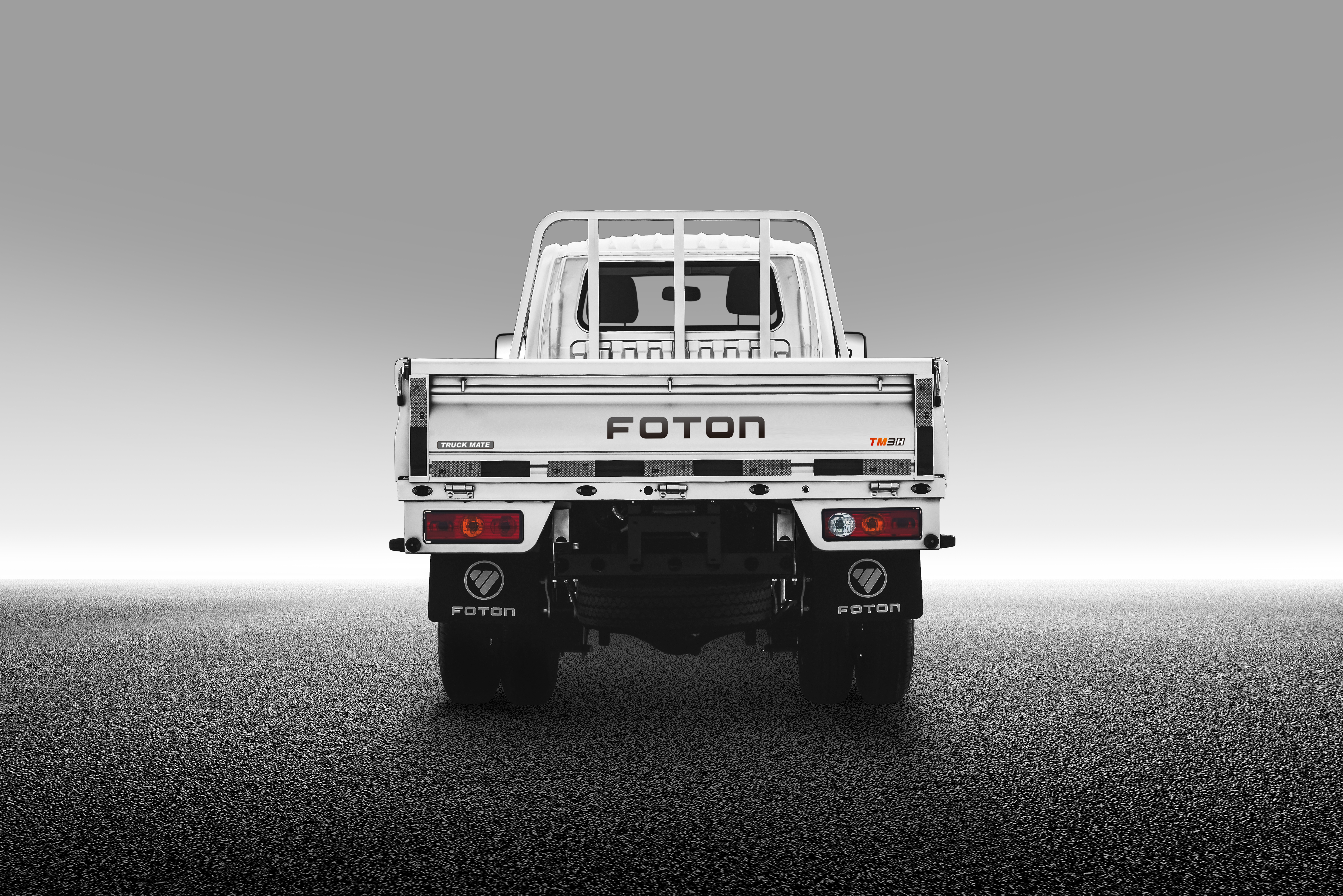

Photo Shows
|
