| Categories | Polymer Lithium Ion Batteries |
|---|---|
| Brand Name: | Sunland |
| Model Number: | LP086090 2S1P |
| Certification: | ROHS,REACH,UL,UN38.3 |
| Place of Origin: | GUANGZHOU |
| MOQ: | 1000PCS |
| Price: | USD6 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000PCS/week |
| Delivery Time: | 35 days |
| Packaging Details: | 50pcs/carton |
| Type: | Lithium ion polymer batttery |
| Pack: | 2S1P with BMS |
| Voltage: | 7.4V |
| Capacity: | 5AH |
| Power: | 37Wh |
| Dimension: | 16mm*60mm*93mm |
| Weight: | 160g |
| Communication: | I2C |
| Charging: | 5V |
| Company Info. |
| Guang Zhou Sunland New Energy Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

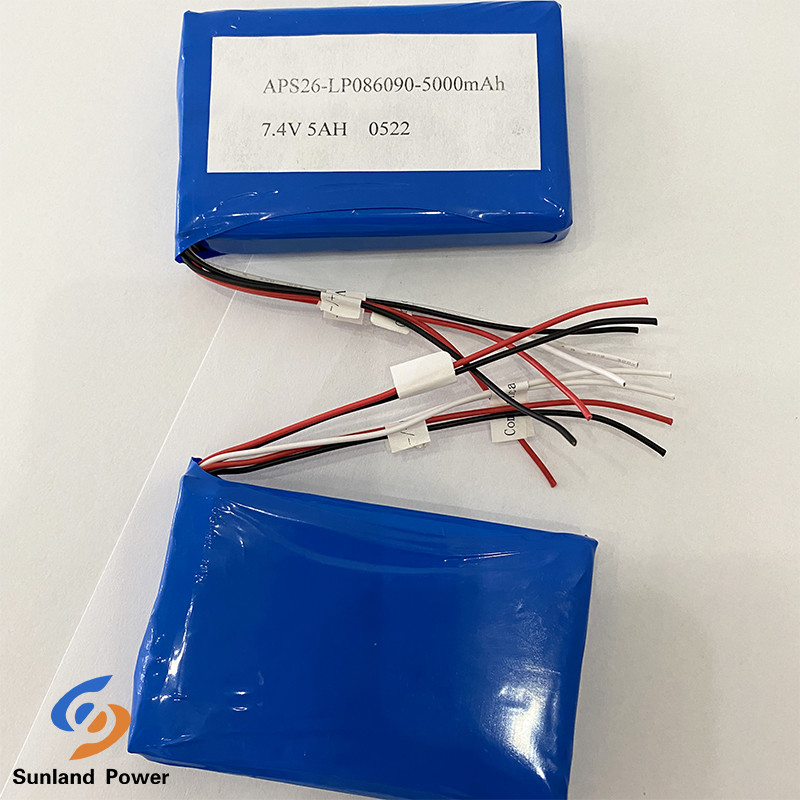

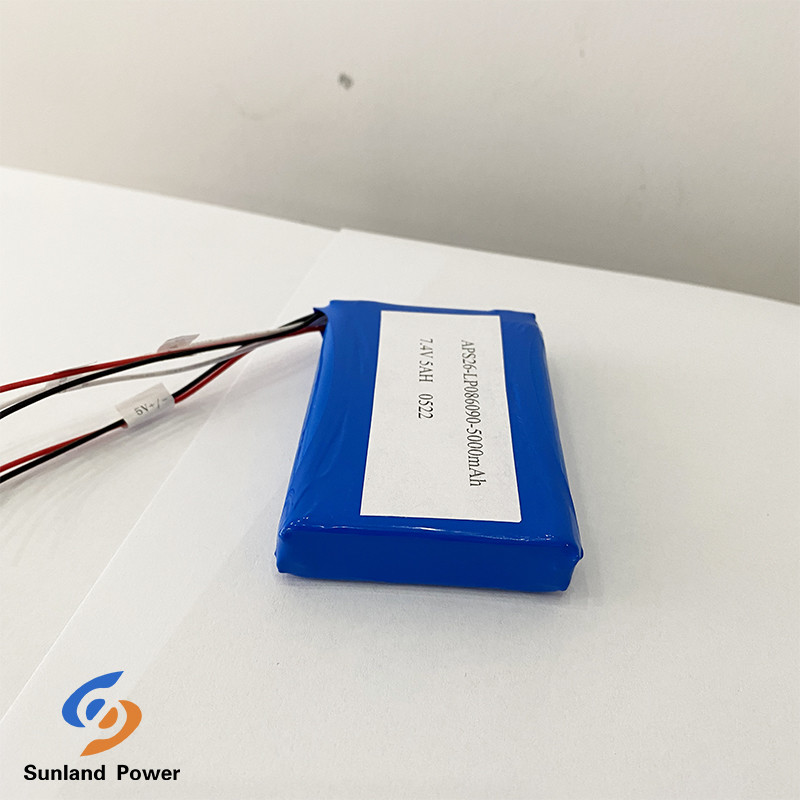

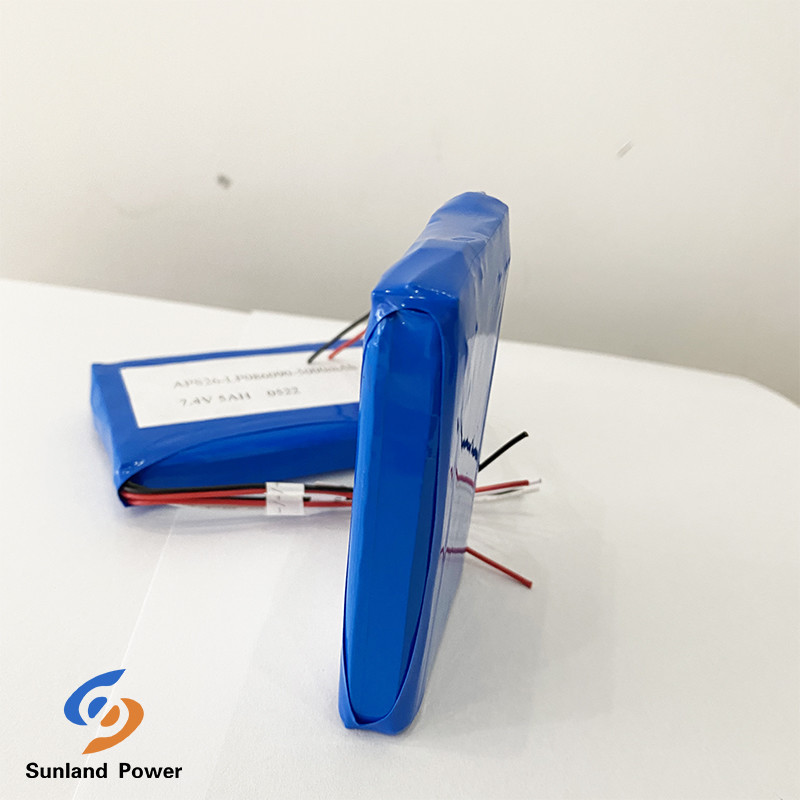

7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge
Feature:
1. Input:5V,with charging control
2. Output:7.4V
3. BMS:I2C function(Fuel Gauge)
4. Application for sensor
Parameter:
| No. | Items | Specifications | Remark |
| 6.1 | Combination Method | 1parallels 2series | |
| 6.2 | Rating Capacity | 5Ah | 0.2C constant current(CC) discharge to 6V |
| 6.3 | Nominal voltage | 7.4V | |
| 6.4 | Max. charge voltage | 8.4V | 0.2C constant current(CC) charge to 8.4V,then constant voltage (CC)8.4V charge till charge current decline to ≤0.02C |
| 6.5 | Discharge cut-off voltage | 6V | |
| 6.6 | Charge current | 2A | |
| 6.7 | Continuous Output Discharging current | 2A | |
| 6.8 | Dimension | 100L*60W*17Tmm | |
| 6.9 | Operating Temperature | 0~45℃ | Charging |
| -10~55℃ | Discharging |

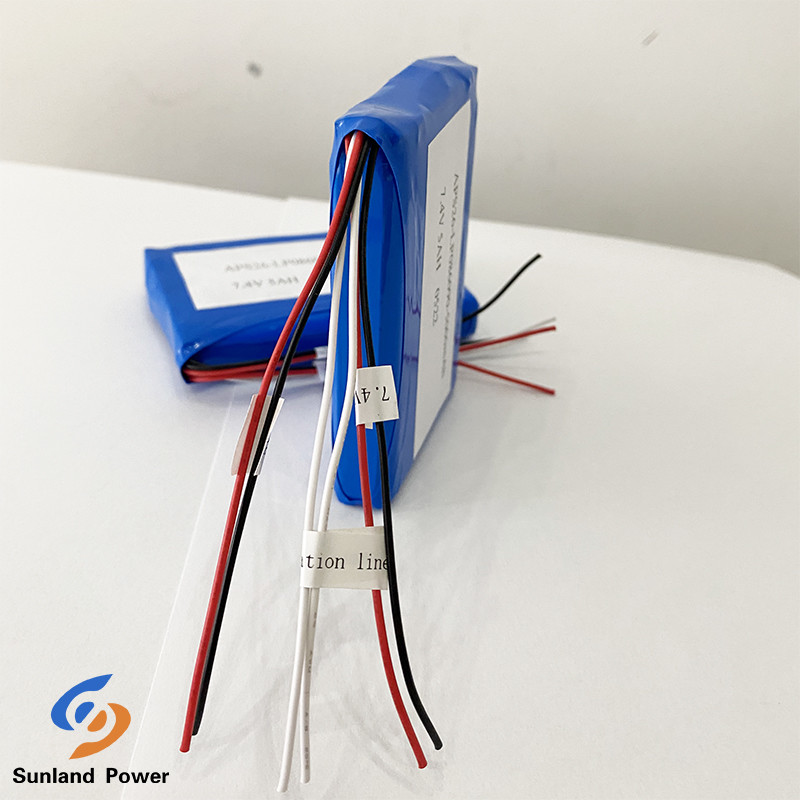

7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge
| NO | Items | Units: mm | Remark | |
| 1 | Thickness | T | 18 | Max |
| 3 | Width | W | 60 | Max |
| 4 | Height | H | 93 | Max |
| 5 | Cable Length/ | L | 100±3 | |
| NO | Part name | Quantity | Unit | Remark |
| 1 | Cell | 2 | ea | Great Power |
| 2 | Solder | 0.04 | g | Lead Free |
| 3 | PCM | 1 | Ea | SH366003+ +PE616BA*2+ETA2893 |
| 4 | Cable | 6 | Ea | Charge,discharge,data |
| 5 | PVC | 1 | Blue PVC |
The battery to be charge in accordance with standard charge condition at 20~25℃,then storage the battery at an ambient temperature 20~25℃ for 28 days.
Measure the capacity after 30 days with 0.2C at 20~25℃ as retention capacity more than 85%
|
