| Categories | PTFE Lined Pump |
|---|---|
| Brand Name: | DELOX & OEM |
| Model Number: | PLP-01 |
| Place of Origin: | CHINA |
| MOQ: | 1PCS |
| Price: | Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 50 Pcs per month |
| Delivery Time: | 15-30 working days |
| Packaging Details: | Packed as request. |
| Color: | Any |
| Material: | PTFE |
| Pressure: | High Pressure |
| Outlet Size: | 20-150 mm |
| Power Source: | Electric |
| Customized support: | OEM, ODM |
| Company Info. |
| Delox Industry Wuxi Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

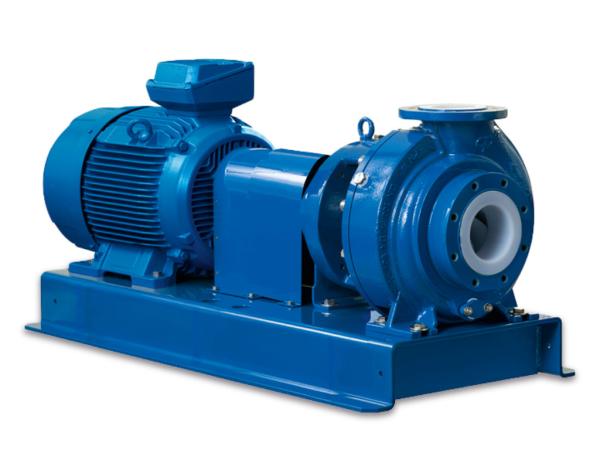

Our Fluoroplastic Plastic lining pump is designed according to international standards. The pumping housing is made of metal outing lined with fluoroplastics/PTFE/PFA/F46/PVDF//FEP, and the impeller and pump cover are pressed into form with metal inserts wrapped by fluroplastic/PTFE/PFA/F46, and the shaft seal is realized by mechanically sealing the advanced outer-carrying corrugated pipe. The stationary seal ring is made of 99.9% alumina ceramics, while the rotating seal ring is made of PTFE filling materials ( or other materials in light of customer's special working condition).
| Working Principle: | Centrifugal |
| Main applications: | Chemical Industry, Pharmacy, Acid Cleaning, Farm Chemicals,waste water treatment,etc. |
| Driver: | Electric |
| Max.permissible fluid temperature | 100°C(PVDF, FEP), 120°C(PFA) |
| Type of connection: | Flange, Thread, Quick coupled |
| Installation position: | Horizontal. |
| Casing parts material: | PTFE linning |
| Shaft seal type: | Mechanical seal |
| Maximum drive rating: | 90KW(120HP) |
| Maximum caliber: | 125/100mm (5"/4") |
| Maximum flow: | 2.5-400m3/h(11-1760US.GPM) |
| Maximum discharge-side pressure | 125m(410ft) |
|
