2.8A PT5126A 1CH 8pins SOP8 PTC DC Motor Driver

Categories	Integrated Circuit Chip
Brand Name:	PTC
Model Number:	PT5126A-HS
Certification:	CE/ RoHS
Place of Origin:	CN
MOQ:	10pcs
Price:	To be negotiated
Payment Terms:	T/T, Western Union ,paypal
Supply Ability:	10,000PCS
Delivery Time:	in stock 2-3days
Packaging Details:	2500PCS/Reel
PN:	PT5126A-HS
Brands:	PTC
Operating temperature ::	-40 ~ +85°C
output current:	MaX 2.8A
Motor operating:	2V to 24V
Control (VCC)::	2.7V ~ 5.5V

Contact Now

Add to Cart

Company Info.

DELI ELECTRONICS TECHNOLOGY CO.,LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

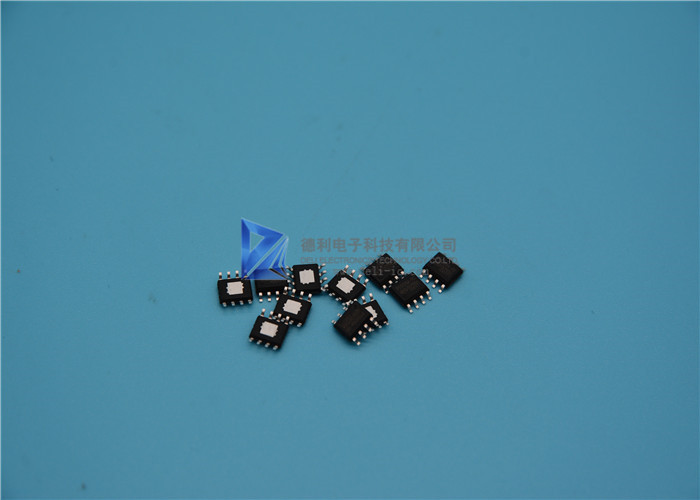

2.8A PT5126A 1CH 8pins SOP8 PTC DC Motor Driver

PT5126A# DC Motor Driver 1CH 8 Pins HSOP8 Brand PTC High Performance Low Power Consumption

H bridge Control Motor Forward and Reverse Motor Drive

DESCRIPTION

The PT5126A is 1 Full-On Drive H-Bridge channel with two different packages.

The driver features wide range operating from 2V to 24V

and low power consumption by fast switching speed.

APPLICATIONS

 Toys

 Lens for DSLR

 Auto icemaker or dumper drive for refrigerator

 HV bi-direction DC Motor

 Intelligent electronic lock

FEATURES

 It is low consumption by BCD process adoption

 Two different small packages: HSOP8, SOP8

 Wide power-supply voltage range:

- Control (VCC): 2.7V ~ 5.5V

- Motor (VM): 2.0V ~ 24V

 High DC output current: Max.=2.8A

 Ultra low RDSON(TOP+BOT):

0.51ΩTYP@25°C, 1A for HSOP8;

0.64ΩTYP@25°C, 1A for SOP8

 Low current consumption when power-down: <0.05μA @25°C

 PWM control, Max. input frequency: 200KHz.

 Operating temperature range: -40 ~ +85°C

 Charge-pump less

 Shoot-through current protection

 Built-in protection circuits

- Under voltage lock out

- Thermal shut down
