3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve

Categories Brass Valves And Fittings
Brand Name: YORO
Model Number: 3603 3609
Certification: ISO9001, ISO14001, ISO45001Etc.
Place of Origin: Zhejiang, China
MOQ: 1000PCS per order
Price: Variable according to quantity, price terms, brass rod cost, and other key factors. Pls inquire with detailed requests.
Payment Terms: T/T, and payment terms are negotiable
Supply Ability: 100000 pcs per month
Delivery Time: 7 working days from inventory if available. New production may take another 2-3 weeks
Packaging Details: Poly bag for each product, then several pieces in neutral brown box
Product Name: Straight Type Nickel Plated Brass Ball Valve with Meter Outlet & Built-in Strainer & Optional Brass Drain Valve
Nominal Pressure: 1.0 MPa Maximum
Product Sizes: DN20 DN25
Threaded Pipe Connections: Flexible Male Nipple G1"
Plastic Pipe Connections: PP-R 25 / 32, AL-PL 16x20 / 20x25
Materials: Copper Zinc Alloy 57-3 Body/stem/nipples, PTFE Ball Seats, NBR O-rings
Meter Outlet: M10 X 1 Female Threaded
Strainer: 10 Mesh stainless steel
Optional Drain Valve: Ball Type With O.D. 15mm Pipe Fitting
Appearance: Sand shot with nickel plating
Working Temp.: 5℃ To 70℃ (Instant 90℃) for PP-R pipe, or 0℃ To 95℃ for AL-PL pipe
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3603 3609 Straight Type Nickel Plated Brass Ball Valve w/ Meter Outlet & Built-in Strainer & Optional Brass Drain Valve

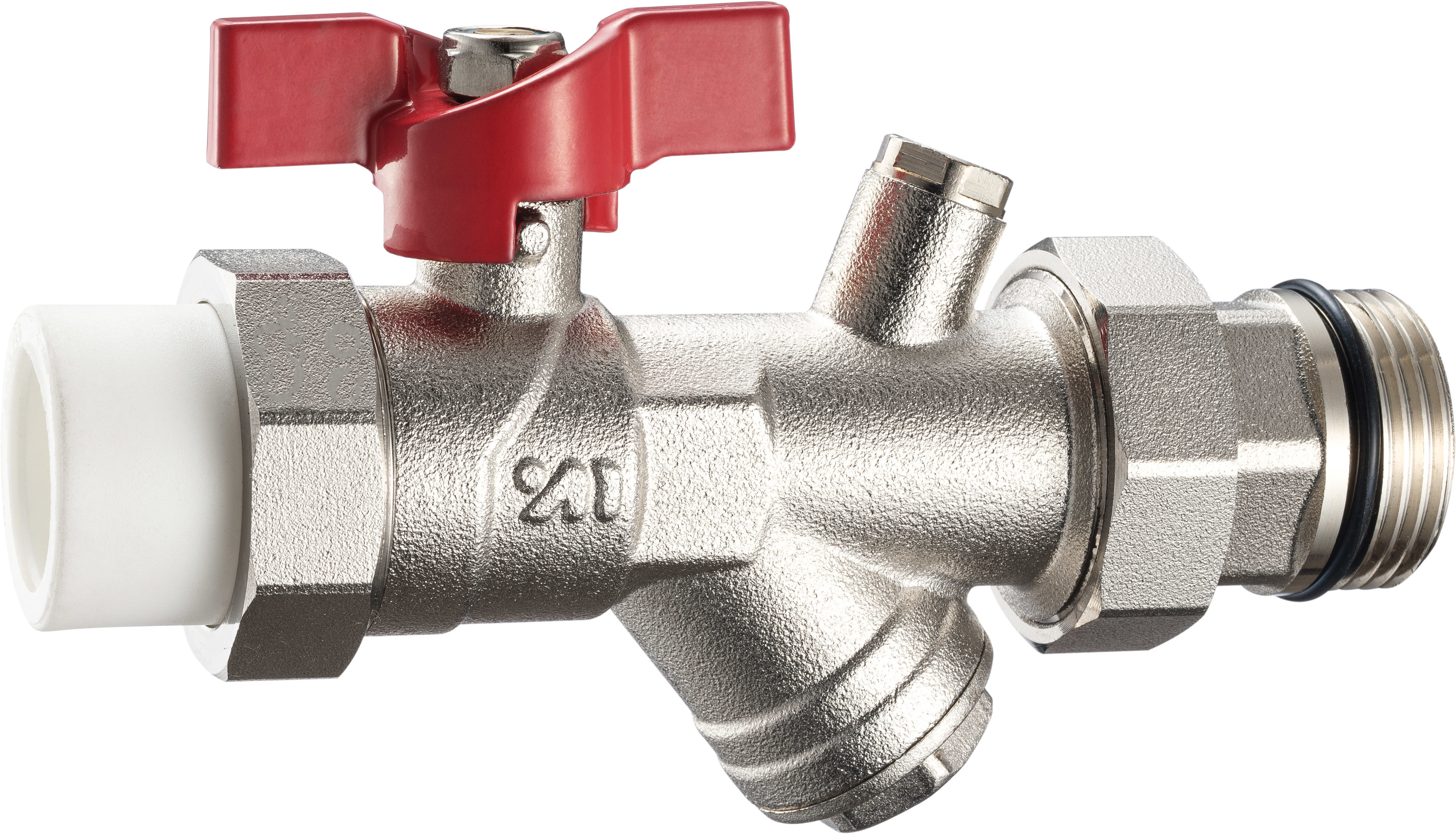

3603 Straight Type Nickel Plated Brass Ball Valve with Meter Outlet & Built-in Strainer



Sizes



DN20


DN25


PP-R Pipe Connection



Φ25


Φ32


Flexible Male Nipple



G1"


G1"

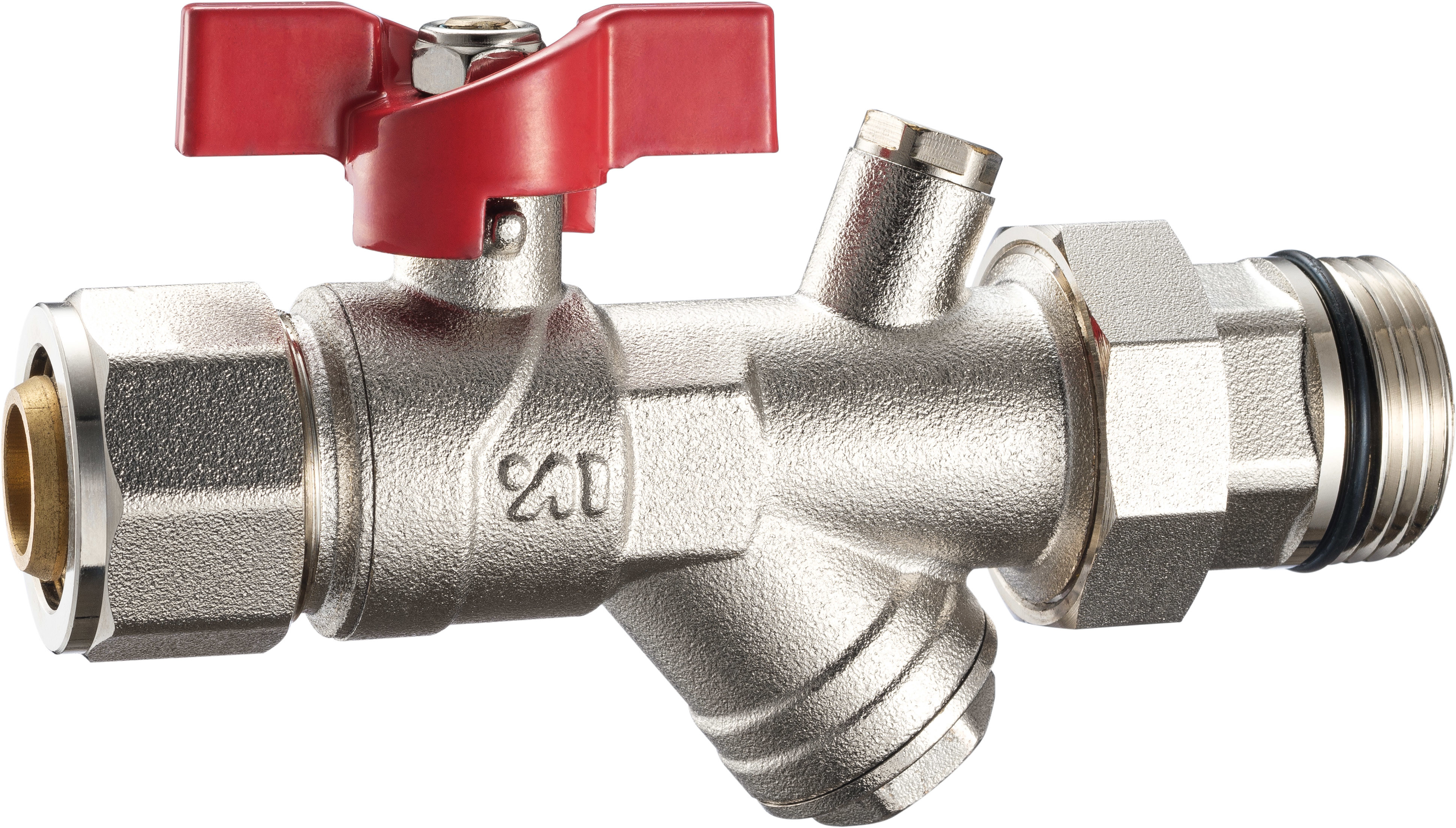

3609 Straight Type Nickel Plated Brass Ball Valve with Meter Outlet & Built-in Strainer



Sizes



DN20


AL-PL Pipe Connection



16 x 20


20 x 25


Flexible Male Nipple



G1"


G1"

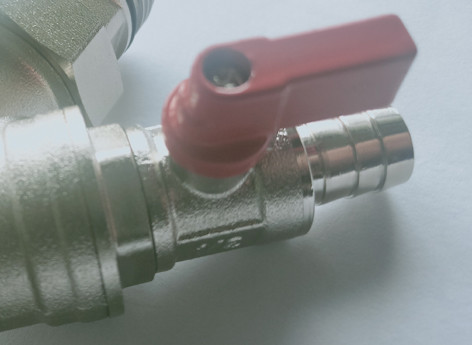

36-F Optional Brass Drain Valve for Built-in Strainer
