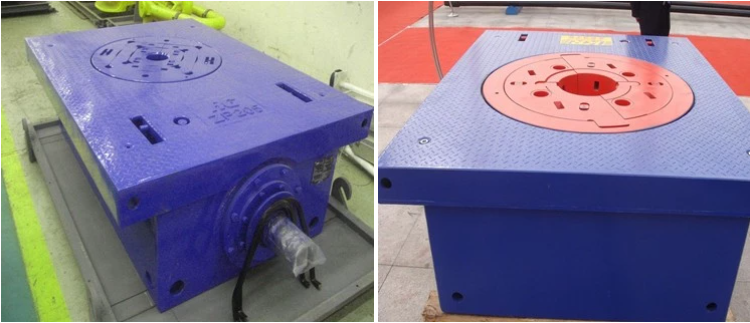

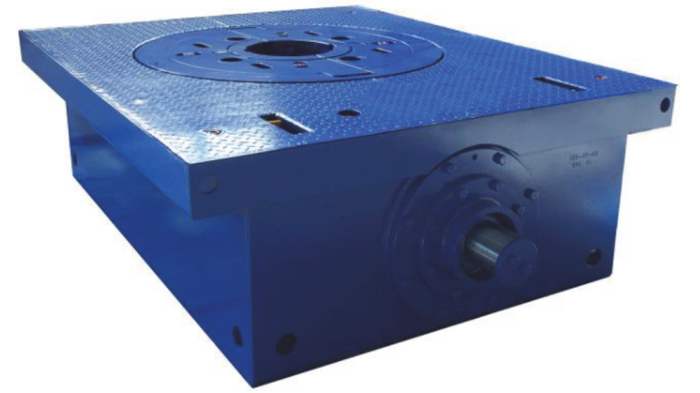

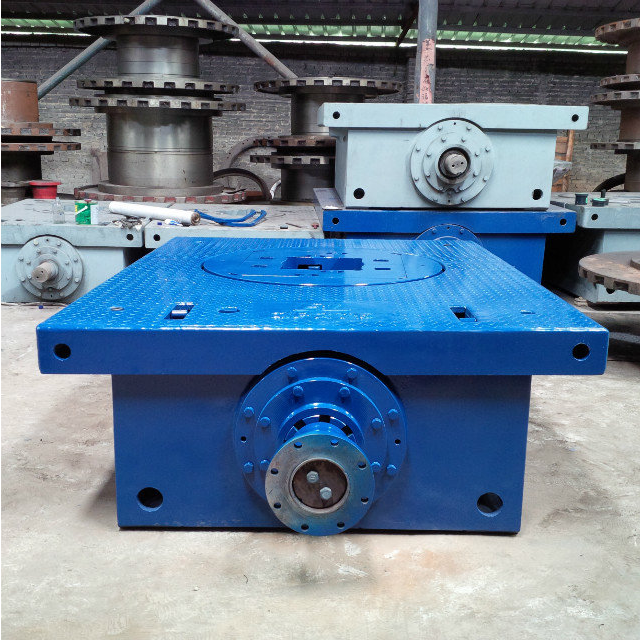

API 7K ZP175 ZP275 ZP375 Oil Drilling Rigs Spare Parts Rotary Table
API 7K ZP175 ZP275 ZP375 Oil Drilling Rigs Spare Parts Rotary Table
Product Introduction:
Rotary table is effective device used in drilling rig. It is mainly
used for: 1. Rotating the drill rod in the process of the rotary
table drilling or salvage. 2. Bearing the torque reaction of the
drill spindle during the drilling. 3. Suspending the pipe column
while unloading the drill rod or well tube. 4.Loosen the thread
join while raising the drill rod.
The product is designed, manufactured and examined in accordance
with the standards of API Spec 7K.
Features:
• The pinion and gear are made of alloy steel.
• The master bushing for rotary table is made from a steel casting.
• Pin transmission type is suitable for API standard square or
hexagonal Kelly roller bushing.
• Effective lubrication and reliable seals are provided by design.
Main Technical Parameters of Rotary Table:
| Model | ZP175 | ZP205 | ZP275 | ZP375 | ZP375Z | ZP495 | |
| Table opening | mm | 444.5 | 520.7 | 698.5 | 952.5 | 952.5 | 1, 257.3 |
| (in) | 17.5 | 20.5 | 27.5 | 37.5 | 37.5 | 49.5 | |
| Distance from table axis to center inner row of sprocket teeth | mm | 1,118 | 1, 353 | 1, 353 | 1, 353 | 1, 353 | 1, 651 |
| (in) | 44 | 53.25 | 53.25 | 53.25 | 53.25 | 65 | |
| Static load rating | kN | 1,350 | 3, 150 | 4, 500 | 5, 850 | 7, 250 | 9, 000 |
| lbs | 300, 000 | 700, 000 | 1, 000, 000 | 1, 300, 000 | 1, 600, 000 | 2, 000, 000 | |
| Max working torque | Nm | 13, 729 | 22, 555 | 27, 459 | 32, 362 | 45, 000 | 64, 400 |
| Max speed | r/min | 300 | 300 | 300 | 300 | 300 | 300 |
| Gear ratio | 3.75 | 3.22 | 3.67 | 3.58 | 3.62 | 4.0883 | |
| Overall dimensions | mm | 1, 972× | 2, 266× | 2, 380× | 2, 468× | 2, 468× | 3, 015× |
| (L×W×H) | 1, 372×566 | 1, 475×704 | 1, 475×690 | 1, 920×718 | 1, 810×718 | 2, 254×819 | |
| Weight | kg | 4, 172 | 5, 662 | 6,122 | 7, 970 | 9,540 | 11, 260 |
If any needs, pls contact us freely:
|
