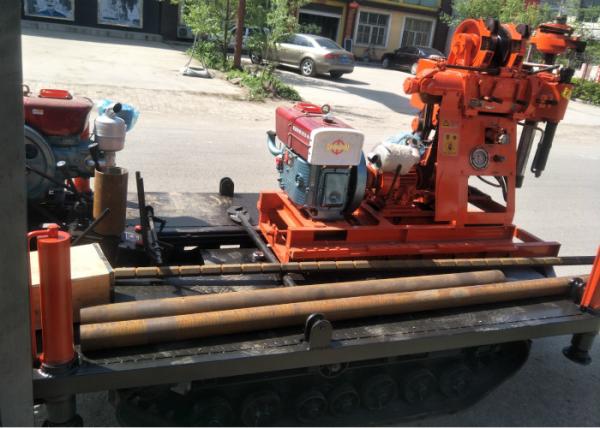

Railways Crawler ST-3 Geological Drilling Rig

Crawler Type ST-3 Geological Drilling Rig Machine For Railways / Core Drilling

For Railways / Core Drilling Crawler Type ST-3 Geological Drilling Rig Machine

Specifications:

1. hydraulic control
2. Engineering geological survey, hydrology, water wells,sky buildings,dams,harbors

bridge,oil exploration,etc

3. oil motor, oil pump, quick joint so on are imported from US
4. power ,flexible and easy manitenance.

5. big pull force
6. large torque, wide range of speed

Description

1, the clutch is in the state, the belt does not rotate in front
Rigs 2 and 200 have no reversal or reversal
3, drilling rig can be decided angle straight and inclined type tower played the best selection of high speed soil 75~90.
4, the earth under the active drill pipe with variable diameter plus three wing bit
A rock drill rod diameter variable connecting head connected with the active hole pipe is connected with the drill rod, to a certain depth in the head, above 2m depth hole pipe into the core tube, 60 meters deep need for powder tube.

5, the diameter becomes bit.
6, to speed up, need to speed reducer belt rotation, drilling speed faster, but the endurance of drilling rig is low.
7, work efficiency: complete soil layer, hit 60 meters a day. General strata 16, 7 meters.
8, hydraulic oil with 32 oil, cold place with No. 42
9. Connection of wire rope and lifting device.
10, the coal mine roadway drilling rigs are available, without.

XY-3 Crawler Water well drilling machine Parameter

Jinzhou City Shitan Machinery Equipment CO. LTD. is a professional production and

processing company for core drilling rigs, crawler drilling rigs, various track chassis, various

types of mud pumps, various track transport vehicles, etc. It is one of the outstanding

manufacturers of similar products in North China. Strong technical force. The modern production

equipment and complete testing means are specialized in the development, manufacture and

marketing of drilling rigs.

To ensure the quality and stability of the machine, we use the most advanced production and testing

equipment, Made from high quality materials, with fashion and compact design, that keeps our drilling

rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive

cost performance. Our water drilling rigs have received the real market validation as the majority of our

customer’s positive feedback.

The company's main products are rigs: XY-1, XY-1A, XY-1B, GK-180, GK-200, DPP-100 and other series

of drilling rigs: gearbox assemblies and gyro assemblies for various rigs, Winch assembly, reducer assembly,

pump assembly. Drilling tools: sedimentary pipe joints, casing joints, casing couplings, drill pipe joints, casing

core pipes, lifters, automatic drop hammers, earth borrowers, standard penetrations, forks, lock joints, alloy drill

bits Hundreds of drilling tools, such as steel sand drill bits, core pipe joints, drill pipe pliers, and casing pliers.

Jinzhou City Shitan Machinery Equipment CO. LTD. has a complete and scientific quality management

system. The integrity, strength and product quality of Jinzhou Stone Exploration Machinery Co., Ltd. have been

recognized by the industry. Welcome friends from all walks of life come to visit, guide and negotiate business!
