| Categories | Fiber Optic Junction Box |
|---|---|
| Brand Name: | YT |
| Model Number: | 144F-GB |
| Certification: | ISO, SGS, ROHS |
| Place of Origin: | china shenzhen |
| MOQ: | 10 pcs |
| Price: | Negotiation |
| Payment Terms: | XTransfer T/T, Western Union, PayPal |
| Supply Ability: | 5000 pcs/Month |
| Delivery Time: | 3-7days |
| Entry Ports: | 2 |
| Outprots: | 12 |
| Splice Capacity: | 144Fibers |
| Splice Tray: | 12/24FO |
| Mounting Type: | Wall-mounting Or Pole |

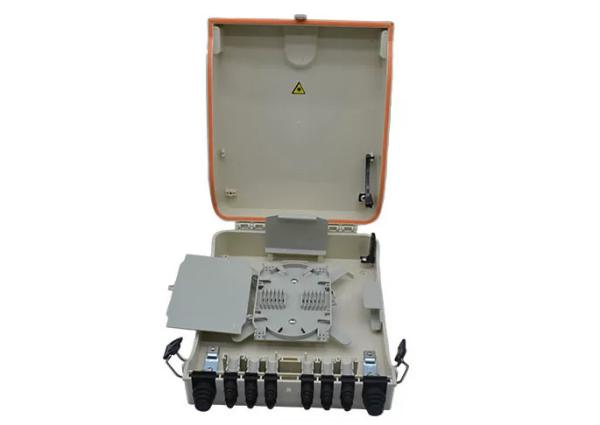

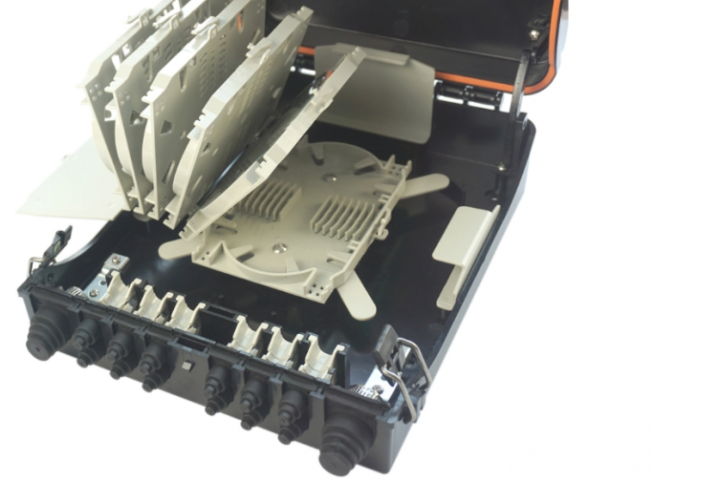

Ftth terminal box 144FO optical distribution box for indoor outdoor enclosure
This type fiber access termination box(FDB) is able to hold up to subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, and cable connection in one solid protection box.
Specification:
| Part No. | Spec. |
| Dimension | 296x245x97 mm |
| Entry ports and cable dia. (max.) | 2xØ22mm |
| Output ports and cable dia, (max.) | 4xØ11mm |
| Output ports and cable dia. (max.) | 8xØ10mm |
| Splice capacity | 144FO |
| Max. number of splice tray | 6 |
| Splice capacity of each tray | 12/24FO |
| Mounting type | Wall-mounting or pole-mounting |
| Lock type | 2 Side locks (Hasp lock) 1 Standard key lock (Optional) |
Features:
1. It suitable for outdoor and made of high-quality plastic.
2. ApplkaNe for the FTTx project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.
3. Rated to IP55, suitable for Indoor or outdoor application.
4. Wall mounting and pole mounting application.
5. 2pcs cable entry ports; cable can be entry without cutting.
6. 6pcs exit ports for FTTH drop cable.
|
