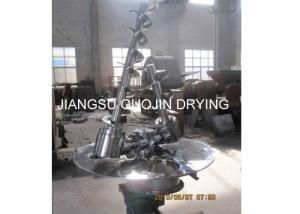

SS Twin Screw Vertical Ribbon Mixer For Chemical Compost Products

Chemical Compost Product Machine Vertical Twin Screw Ribbon Mixer

A double-layer spiral blade is arranged on the main shaft of the mixer. The internal screw conveys the material to the outside, and the external screw gathers the material to the inside. Under the convective motion of the material in the double helix belt, a low dynamic and efficient mixing environment is formed. The inner and outer diameter screw installed on the mixing shaft drives the materials in the barrel, so that the agitator can turn the materials in the barrel at the maximum range. When the mixing device works, the inner screw drives the materials close to the shaft center to rotate, the axial direction is pushed from the inside to both sides, and the outer screw drives the materials close to the barrel wall to rotate axially, and the axial direction is pushed from both sides to the inside. The mixed materials can be evenly mixed in a short time.

Working Principle

Double Screws Cone Mixer is short for the cantilever Double Screws Cone Mixer.It is suitable for the solid – liquid,solid-solid materials mixing.
The material barrel of the machine is an inverted cone,in which there are two non-symmetrical upgrading screw equipped.
When the screw rotates,it will produce a lfting force to make the material to the upper of the barrel, and aggregates in the depression then falls down to fill up the vacancy.

Product Application

It is suitable for raw materials having large difference in specific gravity and large ratio of formulation. It is applied to chemical industry, medicine, pharmaceutical industry, foodstuff, biotechnology, healthy products, fertilizer, dyestuff, pigment, metallurgy, mine, building materials, plastic, and and other powder and powder (solid-solid), powder and liquid (the solid-liquid), liquid and the liquid (liquid-liquid) mixed.

Product Features

It can be equipped with flying-entter aditionally, so as to meet the requirements for special technology.

The discharge valve adopts two ways , one is manual or the other is pneumatical.

The power of motor can be enlarged for special material(strengthening type).

Technical Parameters

Type	CVRM-0.3	CVRM-0.5	CVRM-1	CVRM-2	CVRM-4	CVRM-5	CVRM-6	CVRM-10
Total volume(M3)	0.3	0.5	1	2	4	5	6	10
Feeding Ratio	0.4-0.6
Mixing Material(um)	40-3000
Working condition	Normal temperature, pressure and dust seal
Power(kw)	2.2	3	4	5.5	11	15	18.5	22
Mixing time(min)	6-10(depend on different material)

Product show
