| Categories | Building Materials Packing Machine |
|---|---|
| Place of Origin: | Jiangxi, China |
| Brand Name: | BlueRay |
| Model Number: | DCS-50D |
| Certification: | CE ISO |
| Supply Ability: | 100 Set/Sets per Month packing machine |
| Packaging Details: | Wooden Box |
| MOQ: | 1 Set/Sets |
| Price: | $5,000.00 - $10,000.00 / Set |
| Type: | Packaging Line |
| Application: | Chemical, Food, Textiles, powder |
| Packaging Type: | Bags, open mouth bags |
| Packaging Material: | Wood, packing machine in wooden case |
| Automatic Grade: | Semi-automatic |
| Driven Type: | Pneumatic |
| Voltage: | 220V /380V/50HZ |
| Power: | 3KW |
| Dimension(L*W*H): | 3000*1500*3500mm |
| Weight: | 1500KG |
| Product name: | DCS-50D packing machine |
| Three load cell: | high weighing accuracy |
| Three travelling cylinder: | feeding speed with fast-midium-slow |
| Control box: | full touch screen panel |
| Automatic bag clamp: | sensor control |
| Packing material: | powder |
| Sewing machine: | full automatic |
| OEM service: | 15 years R&D experience |
| After-sales Service Provided: | Engineers available to service machinery overseas |

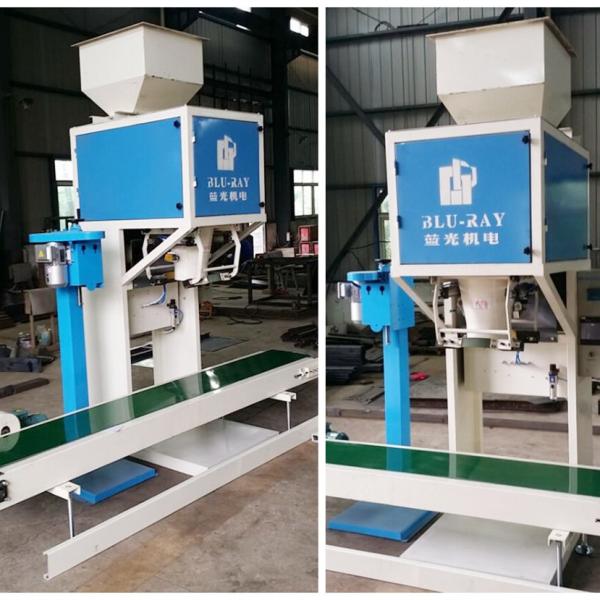

1, Product Name: 50kg wet river sand packing machine
2, Item: DCS-50D
Application materials | flake,lump,block,aggregation,mixture products of any industry | ||
Display Resolution | 5g, 10g | ||
Weighing Range | 5-50kg/bag or customized needs | ||
Precisions | +/-(0.1-0.2)% FS | ||
Packing Capacity | 300-420 bags/hour | ||
Dimention(L*W*Hmm) | 3000*1500*3500mm, the size can be customized according to your site | ||
Power Supply | AC220V/380V, 50HZ, 1P/3P, customized available | ||
Air Source | 0.5-0.7 Mpa | ||
Power | 3KW | ||
Working Temperature | -10~40 ℃ | ||
Relative Humidity | ≤90% RH(Non-condesing) | ||
Belt feeding type packing machine suit for pack flake,lump,block,aggregation,mixture products, such as gravel,pebble,stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/mixture),coal briquette, aluminum sulfate etc
This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
 | Control Box+Full touch screen panel |
 | Three pieces of Load Cell(weighing sensor)+Famous brand load cell, more stable |

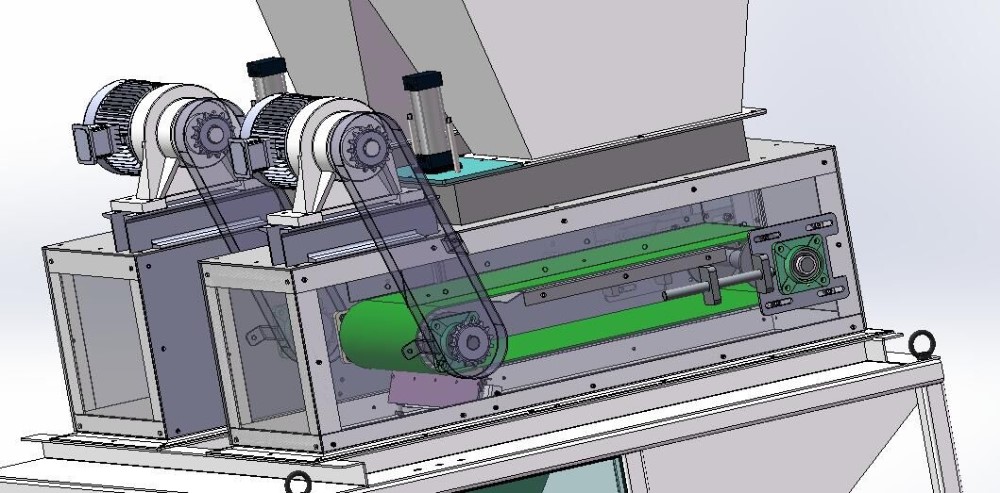

 | Belt Feeding Mechanism+Control by the PLC system and motor +Three-travelling cylinder control the materials through for feeding |
 | Automtic Bag Clamp/Loose Mechanism+Photoelectric sensor switch |
 | Dust Air Outlet+All of our packing machine will install air outlet |
 | Automatic Sewing Machine+Automatic bag top folding device(opitional) |
All equipments will package in the
wooden case and fixed by the steel
then in the cantainer
We will transport the machine to
Shanghai port(or any port of China you need)by the truck
All machines will in container then
ship to the sea port of your country by the boat
Item | DCS-50WD | DCS-50D | DCS-50SD |
Application materials | flake,lump,block,aggregation,mixture products of any industry | ||
Display Resolution | 5g, 10g | ||
Weighing Range | 5-50kg/bag or customized | ||
Precisions | +/-(0.1-0.2)% FS | ||
Packing Capacity | 180-240 bags/hour | 300-420 bags/hour | 500-600 bags/hour |
Dimention(L*W*Hmm) | 3000*1500*2800 | 3000*1500*3500 | 4000*1500*3900 |
Power Supply | AC220V/380V, 50HZ, 1P/3P, customized available | ||
Air Source | 0.5-0.7 Mpa | ||
Power | 3KW | 3KW | 6KW |
Working Temperature | -10~40 ℃ | ||
Relative Humidity | ≤90% RH(Non-condesing) | ||
Non weighing hopper belt feeding type packaging machine
packing speed 180-240 bags/hour
Single weighing hopper belt feeding type packaging machine
packing speed 300-420 bags/hour
Dual weighing hopper belt feeding type packaging machine
packing speed 500-600 bags/hour
-15 years professional manufacturer of packing machines,sewing/heat
sealing machine,automatic palletizer
machine,elevator/conveyor etc
-More than 10 person engineers team,OEM service and customized
design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
 |  |  |  |
 |  |  |  |
|
