European Type Prefabricated Electrical Substation Box YB Series 11/0.4 KV 1250 KVA

Categories Electrical Substation Box
Brand Name: HENGFENGYOU
Model Number: YB
Certification: ISO IEC CB COC KEMA SNI SABS CCC
Place of Origin: China
MOQ: 1
Price: 2000-200000/piece
Payment Terms: LC T/T
Supply Ability: 5000 pieces/year
Delivery Time: 30 days
Packaging Details: wooden case
Rated capacity: KVA
Low voltage: KV
High Voltage: KV
Structure type: P and M
Prefabricated substation: YB
installation location: Outdoor
Attitude: 2000m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

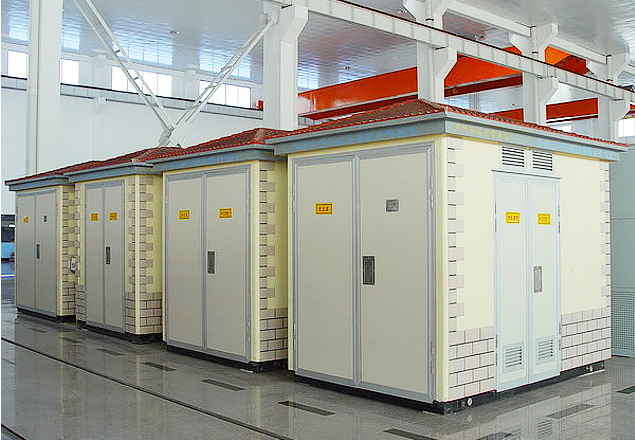

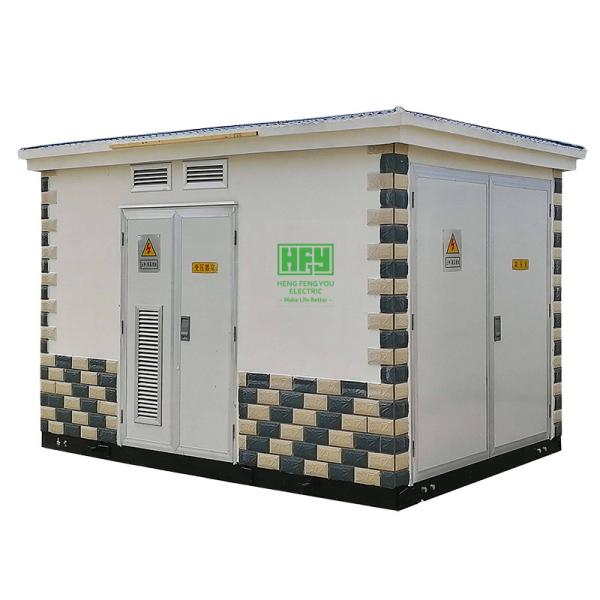

European Type Prefabricated Electrical Substation Box YB Series 11/0.4 KV 1250 KVA

YB Series 11/0.4KV 1250KVA European Type Prefabricated Electrical Substation

Product overview

Combined substation: complete equipment assembly and passed type-tested. Main components: transformers
, high-voltage switchgear and control equipment,low-voltage switchgearand control equipment, the corresponding
internal wiring (cables, bus bars and other), andauxiliary equipment. Combined substation can be operated inside
or outside through the cable. It can be (in part or in whole) mounted on the ground or under the ground.
Service Conditions
1. Installation location: Outdoor;
2. Altitude: <1000m;
3. Maximum ambient temperature: +40℃;
4. Maximum monthly average temperature: +35℃;
5. Maximum annual average temperature: +20℃;
6. Minimum ambient temperature: -25℃(outdoor);
7. Maximum daily temperature difference: 25℃;
8. Sunshine intensity:0.1w/cm2(wind speed 0.5m/s);
9. Contamination level: Level III;
10. Anti-rain level: Level 3;
11. Relative humidity: maximum monthly average:
90% (20℃); Maximum daily average: 95% (20
℃);
12. Earthquake-resistant capability: ground hori
zontal acceleration 0.2g; Ground vertical accel
eration 0.1g;
13. Inclination of the installation site: less than 3 degress
