Industrial Type Bench Manual Drilling Machine ZQ4116 For metal

Categories Drilling milling machine
Model Number: ZQ4116
Certification: CE,ISO
Place of Origin: china
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Name: Manual Drilling Machine ZQ4116
Condition: New
Drilling Speed: 450-2650rpm
Voltage: 380v
Power(W): 3.7
Warranty: 1 Year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

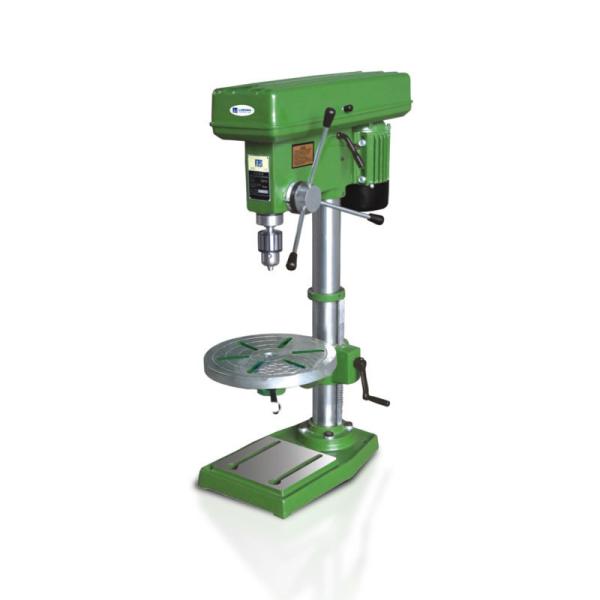

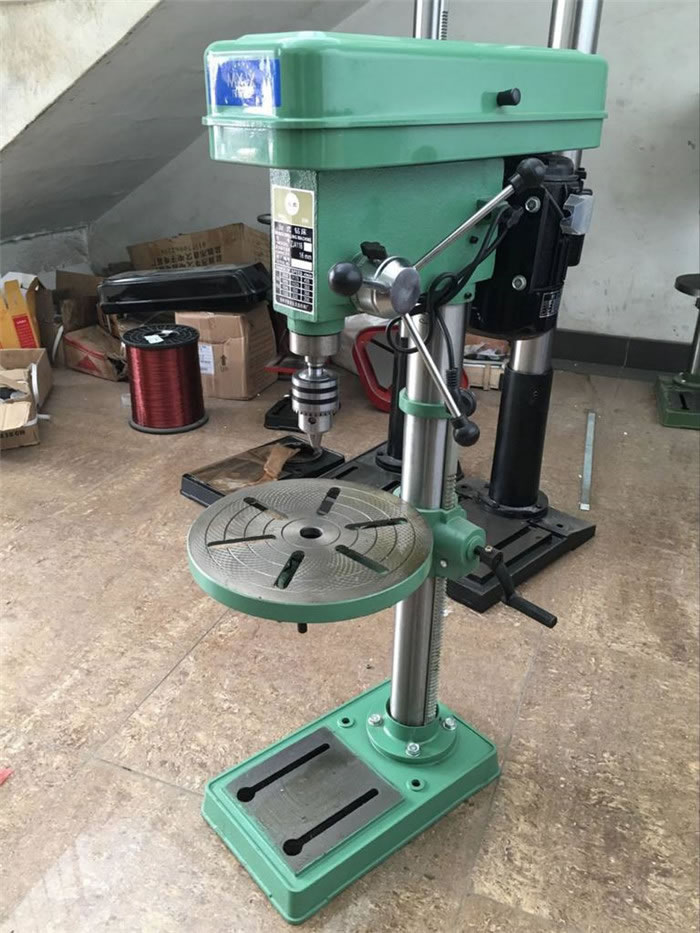

Industrial Type Bench Manual Drilling Machine ZQ4116 For metal

Industrial Type Bench Manual Drilling Machine ZQ4116 For metal


ZQ4116 bench drilling machine has greater flexibility, high production efficiency and easy to use. It is one of the equipment commonly used in part processing, assembly and repair work.


ModelZQ4113ZQ4116/ZQ4119ZQ4125/ZQ4132ZQD4125/ZQD4132
Max. Drilling capacity(mm)1316/1925/31.525/31.5
Diameter of column(mm)70708585
Spindle travel(mm)8585110110
Distance spindle axis to generating line (mm)180180200200
Max distance spindle nose to worktable(mm)390410480390
Max. Distance spindle nose to base(mm)5705906701140
Spindle taper(mm)B16MT2Mt3Mt3
Spindle speeds range(r/min)450-2650200-2780200-2280/150-2270200-2280/150-2270
Spindle speeds series(r/min)4129/129/12
Dimension of worktable surface(mm)240X240 or Φ300240×240 or Φ300280×280 or Φ360280×280 or Φ360
Dimension of base(mm)445x270445×270566x356566x356
Overall height(mm)96096011101680
Motor(W)370370/550750750
G.W/N.W(kg)68/6568/65105/98115/108
Packing size(cm)91x51.5x2791×51.5×27108x77x34108x77x34
