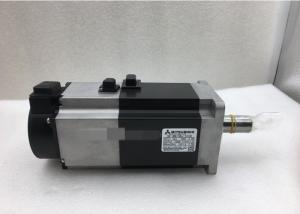

CE 0.75kw 14A 3000r/ Min MITSUBISHI Servo Motor HF-KN73J-S100

MITSUBISHI 0.75kw servo motor HF-KN73J-S100 Industrial electric motors New original


Models of HF-KN73 Series Servo motors

Mitsubishi HF-KN73
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg

Mitsubishi HF-KN73K
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg

Mitsubishi HF-KN73J
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg

Mitsubishi HF-KN73B
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg

Mitsubishi HF-KN73BK
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A

Mitsubishi HF-KN73BJ
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg

Mitsubishi HF-KN73BJK
Output :0.75 KW
Maximum torque :7.2 Nm
Rated Speed :3000 1/min
Max speed :4500 1/min
Rotor inertia Standard:0.000143-0.000163 kg.m²
Rated Current :4.8 A
Max. Current :14 A
Weight Standard:3.1-4.1 Kg

Specifications

Output	0.75 KW
Maximum torque	7.2 Nm
Rated Speed	3000 1/min
Max speed	4500 1/min
Rotor inertia	0.000143-0.000163 kg.m²
Rated Current	4.8 A
Max. Current	14 A
Weight	3.1-4.1 Kg
Rated Torque	2.4 Nm

Models of HF-KN Series I ndustrial Servo Motors

0.1KW	HF-KN13J-S100	0.5KW	HF-SN52J-S100
	MR-JE-10A		MR-JE-70A
	MR-ECN1		MR-ECN1
	MR-J3ENCBL5M-A1-L		MR-J3ENSCBL5M-L
	MR-PWS1CBL5M-A1-L		MR-PWCNS4
	MR-ECNP1-B		MR-ECNP1-B
	MR-ECNP2-B		MR-ECNP2-B
0.2KW	HF-KN23J-S100	1KW	HF-SN102J-S100
	MR-JE-20A		MR-JE-100A
	MR-ECN1		MR-ECN1
	MR-J3ENCBL5M-A1-L		MR-J3ENSCBL5M-L
	MR-PWS1CBL5M-A1-L		MR-PWCNS4
	MR-ECNP1-B		MR-ECNP1-B
	MR-ECNP2-B		MR-ECNP2-B
0.4KW	HF-KN43J-S100	1.5KW	HF-SN152J-S100
	MR-JE-40A		MR-JE-200A
	MR-ECN1		MR-ECN1
	MR-J3ENCBL5M-A1-L		MR-J3ENSCBL5M-L
	MR-PWS1CBL5M-A1-L		MR-PWCNS4
	MR-ECNP1-B		MR-ECNP1-B1
	MR-ECNP2-B		MR-ECNP2-B1
0.75KW	HF-KN73J-S100	2KW	HF-SN202J-S100
	MR-JE-70A		MR-JE-200A
	MR-ECN1		MR-ECN1
	MR-J3ENCBL5M-A1-L		MR-J3ENSCBL5M-L
	MR-PWS1CBL5M-A1-L		MR-PWCNS5
	MR-ECNP1-B		MR-ECNP1-B1
	MR-ECNP2-B		MR-ECNP2-B1

Models of HF-KN Series Servo motors

HF-KN13
HF-KN13B
HF-KN13J
HF-KN13J-S100
HF-KN13BJ-S100
HF-KN23
HF-KN23B
HF-KN23J
HF-KN23J-S100
HF-KN23BJ-S100
HF-KN43
HF-KN43B
HF-KN43J
HF-KN43J-S100
HF-KN43BJ-S100
HF-KN73
HF-KN73B
HF-KN73J
HF-KN73J-S100
HF-KN73BJ-S100

Model designation

Rating Plate

Parts identification
