Categories | Plasma Cutting Power Source |
---|---|
Place of Origin: | Jiangsu, China |
Brand Name: | YH-100A |
Certification: | CE |
MOQ: | 1-4 Sets |
Price: | $1,100.00 |
Warranty: | 1 year |
After-sales Service Provided: | Free spare parts, Online support, Video technical support, Engineers available to service machinery overseas |
Condition: | New |
Rated Power: | 16kva |
Voltage: | 380V |
Multi-function: | cutting |
Name: | plasma cutting machine |
Cutting thickness: | 15mm |
Material: | metal |
Cutting mode: | plasma |
Plasma cutting thickness: | 15mm |
Color: | Blue |
Cutting Gas: | gas |
Package: | plywood case |
Type: | CNC Plasma Cutters |
Weight: | 90kg |
Selling Units: | Single item |
Single package size : | 65X36X66 cm |
Single gross weight: | 60.0 kg |
Package Type: | plywood case |

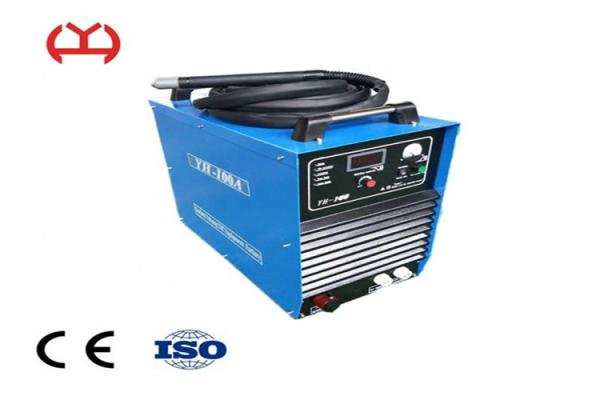

Plasma Power Supply For CNC Cutter
1.Main Technical Performance Indexes of products
Input voltage | 3*380(50Hz)±10% |
Input power | 45KVA |
Cutting power current | 30-200A |
Temporary load rate | 200A/100% |
Cutting thickness | according to the material u cut |
Perforation thickness | 25mm |
Quality cutting thickness | 45mm |
Max cutting thickness | 55mm |
Cutting gas | air |
Gas flow | 150L/min |
Gas pressure | 0.5MPa |
Cooling method | Water cooling |
Power source weight | 90Kg |
Outline dimension | L69*W37*H81cm |
2.Unique cutting functions:
1.Adopt international advanced full bridge soft switching technology
2.Plasma power supply current is 30A - 200A stepless adjustable
3.Good cut surface vertical degree, carbon steel cutting can be
within 3 degree
4.Independent research and development of the cutting torch, strong
ability to penetrate, with good vertical degree
5.Built-in overcurrent, overvoltage, air pressure and hydraulic pressure multiple protection
6.Suitable for CNC cutting machine and robot supporting use
7.100% temporary load rate, can work long hours
![]() |
