| Categories | Industrial Laser Marking Machine |
|---|---|
| Brand Name: | Domainlaser |
| Model Number: | CY-M20F/CY-M30F/CY-M50F |
| Certification: | CE&FDA |
| Place of Origin: | China |
| MOQ: | 1 Unit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200units/per month |
| Delivery Time: | 3-5 working days |
| Packaging Details: | Wodden packages |
| Control software: | JCZ Software |
| Application: | Laser Marking |
| Cooling mode: | Air Cooling |
| Graphic format supported: | BMP,AI,PLT |
| Warranty: | 2 Years |
| Cnc or not: | Yes |
| Condition: | New |
| Marking depth: | ≤0.5mm(Determined by material) |
| Laser power: | 20W 30W 50W |
| Product name: | Fiber laser marking machine |
| After-sales service provided: | Engineers available to service machinery overseas |
| Applicable material: | Metal Plastic,steel,copper,aluminum etc,iron |
| Power supply: | AC220V/50Hz(Customized) |
| Laser source: | Raycus Laser Source |
| Marking area: | 70mm*70mm 110mm*110mm 160mm*160mm 300mm*300mm |

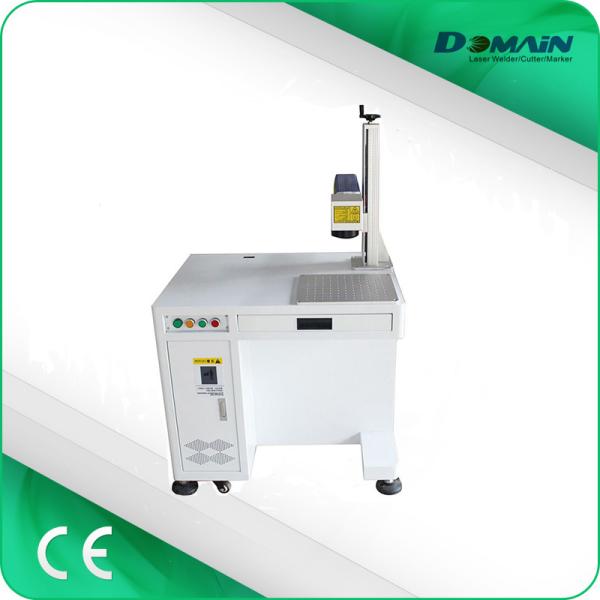

Stainless steel aluminum copper fiber laser marker with 20w 30w 50w laser marking machine
Stainless steel aluminum copper fiber laser marker with 20w 30w 50w laser marking machine
Fiber laser marking machine can mark metal and most of the nonmetal materials. It widely used in auto parts, tools, accessories, computer accessories, hardware products, integrated circuits, product nameplate, precision instruments, electrical appliances, sanitary ware, watches, jewelry,electronic components, all kind of pipes, mobile phone, aerospace devices, etc.
Software function
1.Can make identification to various BMP.JPG,DXF,PLT,AI etc format
documents;
2.Automatic generate various serial numbers,production date, bar
codes, two-dimensional codes, etc.;
3.Flexibility variable quantity document processing, change word in
actual time during the processing procedure, can direct dynamic
reading;
4.Reading text files and marking documents in actual time;Direct
reading text data through serial port and network interface;
5.Opening multiple languages support function, easily support
various world languages;
6.Automatic counting function;
7.Support pipeline marking;
8.Support multiple working positions marking;
9.Support multiple rotary marking;
10.Support large area automatic segmentation marking;
Application
1.Aeropasce and Defence
2.Electronics and Electricals
3.Engineering
4.Jewellery
5.Medical / Surgical
6.Hardware and Tools
7.Bathfittings
8.Kitchenware
9.Automobiles
10.Giftware
Machine parts
Digital Galvanometer Scanner Sysyem1.Digital Galvanometer Scanning head with fast marking speed,fast response ablility ≤0.7mm/s 2.With inside double red light,easy to find focus point Warranty 1 year,within 1 year,free to do maintenance service 3.S/N Anti-counterfeiting code, official website can be checked | |
F-theta Scan lensSingapore imported F-theta lens Focusing spot very fine Abnormal pot < 1% | |
2D/3D moving tableThe table can move from the left to right,from front to behind,from up to down. Total 6 direction moving. Customer can choose the different direction per details request. | |
Marking SoftwareFamous brand Authentic JCZ original EZCAD control system with high stability and easy operation. Every pic with anti-fake code, ensure only genuine in official website. Support software customize with lock and company logo and advertisements. | |
Protective len Wavelength=1064nm | |
Food Switch Press by foot,when do the same repeated processing,run the machine by foot,easy and convenient to operate. | |
Red light PointAdopt red light pointer to show the laser path since laser beam is invisible | |
Industry Computer4G ram and memory, 19.5 inches screen,120G SSD ,win7software. | |
Lifting Handle to remove wheel to get the strong focus point. Laser focus distance can be adjusted easily,support auto focus | |
Parameters
| Type | CY-M20F |
| Power | 20W |
| Laser Brand | Maxphotonics (Raycus/IPG Optional) |
| Marking Area | 110mm*110mm/150mm*150mm |
| Optional Marking Area | 110mm*110mm/150mm*150mm |
| Marking Depth | ≤0.5mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Precision | ±0.003mm |
| Life-span of Fiber Laser Module | 100 000hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
| Output Power of Laser | 10%~100% continuously to be adjusted |
| System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling Mode | Air cooling--Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power Input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
| Package Dimension | 720mm x 460mm x 660mm |
| Gross weight | 50KG |
| Optional (Not free of charge) | Rotary Device, Moving Table, other customized Automation |
|
