| Categories | PVB Laminating Film |
|---|---|
| Brand Name: | ZHECHUN |
| Model Number: | CZ01 |
| Place of Origin: | China |
| MOQ: | 1 Roll |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15,000,000 square meter per year |
| Delivery Time: | 10 days after deposit |

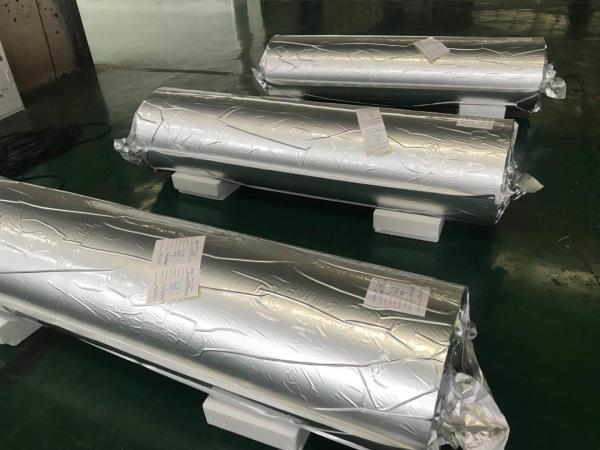

| Packaging Details: | aluminum foil and wooden box |
| Material: | Polyvinyl Butyral |
| Haze: | 0.6% |
| Light transmittance: | 87% |
| Shringking: | 8% |
| Roughness: | 28-50 um |
| Elongation at peak: | 200% |
| Tensile strength: | 20MPa |
| Use for: | building and automobile glass |
| available time: | 15-20 year |

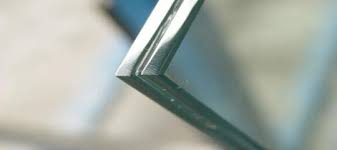

PVB laminating film is mainly used in making laminated safety glass. Laminated glass is a special glass which is inserted with PVB film between two layers of common glass, which under high heating temperature and pressure, binds to create a single construction. Because of PVB laminated glass with the function of safety, heat preservation, noise proof, and ultraviolet resistance, etc, it is widely used in areas such as high-rise building and auto. PVB film with special formula is also used in aeroplane, space flight ware, military instrument, solar battery, solar energy acceptor and so on.
Specifications
| surface roughness | RZ35±10 |
| color | clear or depends on customer request |
| Appearance | level off, no crease, no nick |
Thickness | 0.38mm± 0.019mm 0.76mm± 0.03mm |
| Degree of moisture | 0.4-0.6% |
Tensile strength | more than or equal to 20.0mpa |
Elongation At Breakage | more than or equal to 200% |
| Shrinkage | less than or equal to 8% |
Transmittancy | more than or equal to 90% |
Haze | less than or equal to 0.3% |
| Others | none |
Advantage for PVB laminated glass:
Safety
Energy saving
Sound proof
Laoding:about 20,000 square meter/20 feet container
|
