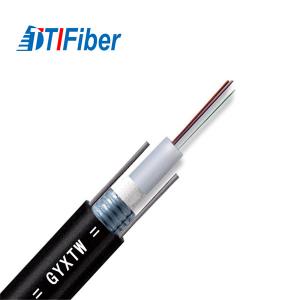

Armoured Duct / Aerial Fibre Optic Patch Leads Single Mode 4 6 12 Core G652D GYXTW

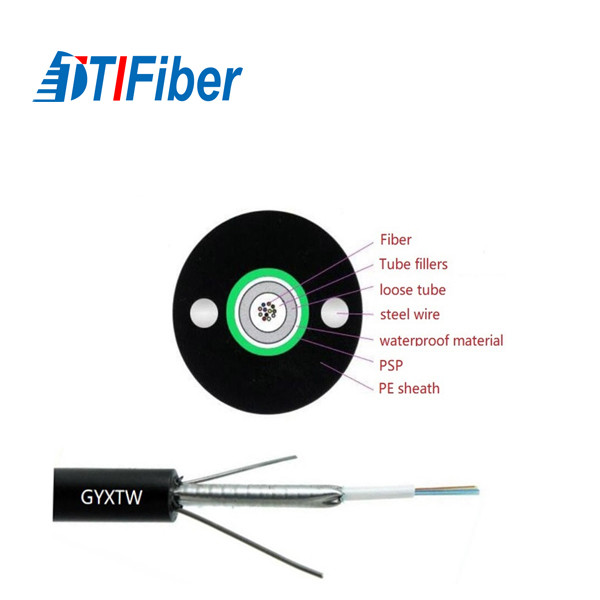

250μm's fibers are positioned in the central of a loose tube which is made of high modulus plastics and filled with water-resistant filling compound. The tube is wrapped with a layer of the plastic coated steel strip(PSP). Except the tube filling compound, PSP, water-blocking material and the PE sheath, it also has two steel wires in two sides to enhance the crush resistance and flexibility.
| OPTICAL CHARACTERISTICS | ||||
| G652 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850 nm | <=3.0dB/km | <=3.3dB/km | |
| @1300 nm | <=1.0dB/km | <=1.0dB/km | ||
| @1310 nm | <=0.36dB/km | |||
| @1550 nm | <=0.22dB/km | |||
Bandwidth (Class A) | @850 nm | >=500 MHz*km | >=200 MHz*km | |
| @1300 nm | >=1000 MHz*km | >=600 MHz*km | ||
| Numerical Aperture | 0.200+-0.015NA | 0.275+-0.015NA | ||
| Cable cut-off wavelength | <=1260 nm | |||
1.Uni-tube gel-filled construction for superior fiber protection.
2.Metallic armor to protect cable from rodent attack and mechanical
damage.
3.Embedded steel wire provide desirable tensile strength and crush
resistance.
4.Compact, easy to install.
5.UV and waterproof design.
| Fiber count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance(N/100mm) | ||
| short term | long term | short term | long term | |||
| 2~12 | 8.0 | 90 | 1500 | 600 | 1000 | 300 |
| 14~48 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
|
