Stable Performance Ultraviolet Laser Marking Machine Low Power Consumption

Categories UV Laser Marking Machine
Brand Name: Huahai Laser
Model Number: HM03P/HM05P/HM07P
Certification: CE,FDA
Place of Origin: Wuhan,China
MOQ: 1set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200sets/month
Delivery Time: 5-7days
Packaging Details: Export wooden box packaging
CNC or Not: YES
Keywords: UV laser marking machine
Cooling Mode: Water Cooling
Laser Wavelength: 355nm
Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Stone etc.
Warranty: 24 months
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

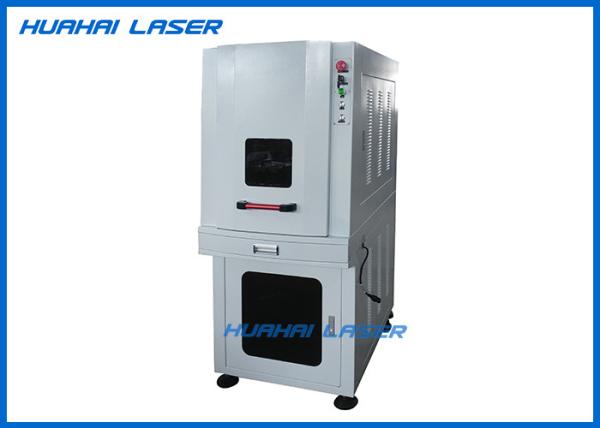

Stable Performance Ultraviolet Laser Marking Machine Low Power Consumption

5 Watts Water Cooling UV Laser Marking Machine For Metal And Non-metal Engraving


Product Introduction:


UV Laser Marker is cold light source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industries; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.


Applied Industries:


Eletronic componentsresistance, capacitance, chips, printed circuit boards, computer keyboard etc.
Apparatus and meterpanel board, nameplates, panel signs, precision equipment etc.
Hardware toolsknives, tools, measuring tools, cutting tools etc.
Mechanical partspistons, bearings, gears, shafts, clutch, standard parts, motors, etc.
Daily necessitiescosmetics, labels, handicrafts, zipper, key holder, sanitary ware, eyewear, LED light etc.
Digital electroniccomputer, laptop, digital camera, mobile phone and accessories etc.
Jewelryrings, necklace, earrings, gold, silver etc.
Medicalmedical device, surgical instruments, medical packaging etc.
Packingdishware ,food, beverages, smoking and alcohol, plastic packing bag etc.

Marking Materials:


Metalsgold, silver, brass, sluminium, steel, stainless steel, iron, Iitanium, carbon steel, mild steel, spring steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc.
Nonmetalsrubber, resin, nylon, plastics(PET,HDPE,PP, ABS,PC,PPS,PVC) makrolon etc.

Marking Contents:


Graphicspicture, logo, design, bar code, two-dimension code etc.
Textcharacter, number, time, serial number, production date, expiry date etc.

Features:


• Small beam diameter and fine marking line
• Good quality and high laser beam stability
• Complete machine stability, simple and easy operation
• Narrow pulse width, small heat affected zone, workpiece without damage
• Suitable for sensitive material as cold light source
• Laser directly acting on molecular chain with maximum extend to avoid thermal effect


Specifications:


ModelHM03P/HM05P/HM07P
Wavelength355nm
Laser power3W/5W/7W
Pulse width≤18ns
frequency of laser0-100kHz
Standard engraving range110mm×110mm
Repeating precision±0.005mm
Minimal linear Width≤0.01mm
Marking speed7000mm/s
Electrical Power220V/110V
Cooling systemAir cooling/Water cooling
UV Laser source

China RFH laser or

USA imported advanced OptoWave

GalvoTop brand made in China
Control card and softwareEZCAD laser mark
LensImported one
Applied materialRubber, plastic, glass, leather, crystal, metal etc.

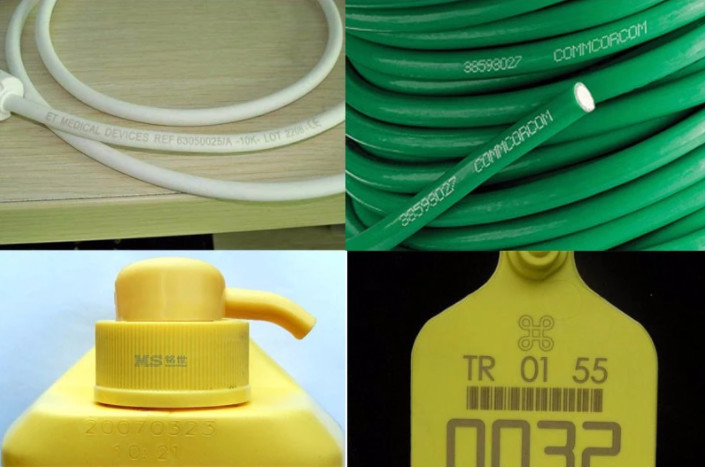

Samples:
