| Categories | LED Parking Lot Lights |
|---|---|
| Brand Name: | E-lite |
| Model Number: | LitePro™ Shoebox Light |
| Certification: | UL ETL DLC CB CE RoHS SAA |
| Place of Origin: | China |
| MOQ: | 5 |
| Price: | Please contact us to obtain a quote |
| Payment Terms: | L/C, D/A, D/P, T/T, PAYPAL |
| Supply Ability: | 100,000PCS PER MONTH |
| Delivery Time: | 2-4 WEEKS |
| Packaging Details: | CARTON BOX |
| LED Chip: | CREE / 3030 |
| Efficacy(IES): | 125~130 lm/W |
| Lumen Maintenance: | L70>100,000 Hours(Calculated Using Tm-21 Calculator) |
| Input Voltage: | 100-277 VAC (347/480 VAC Optional)Dimming Optional |
| Surge Protection: | 10~12KV |
| IP Rating: | IP66 |
| Company Info. |
| E-Lite Semiconductor Inc. |
| View Contact Details |
| Product List |

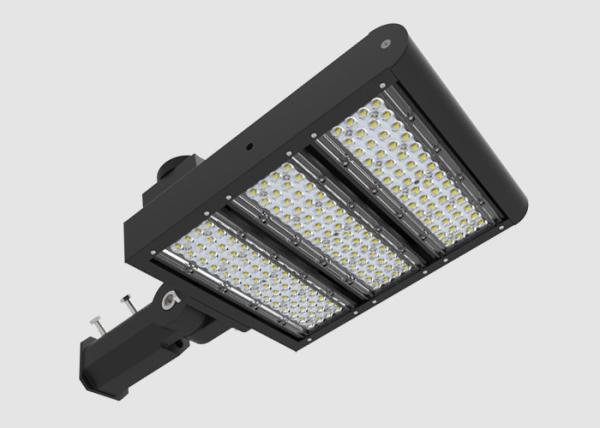

ETL DLC LED Parking Lot Lights / 150W Modular Pole fixture For outdoor Garden Lamp
FEATURES
TYPICAL APPLICATIONS
Parameter:
| Part# | Input Power | Lumen Output(IES) | Input Voltage | LED Chip | Color Temp | CRI | Operating Temp |
|---|---|---|---|---|---|---|---|
| EL-ARGP-100 | 100W | 13000lm | 100-277 VAC (Optional) | CREE / | 4500~5500K (Optional) | >70 | -30 to 45°C (-22 to 113°F) |
| EL-ARGP-150 | 150 W | 19500lm | |||||
| EL-ARGP-200 | 200W | 26000lm | |||||
| EL-ARGP-250 | 250W | 35,000lm | |||||
| EL-ARGP-300 | 300W | 37500lm | |||||
| EL-ARGP-400 | 400W | 50000lm |
Product Details

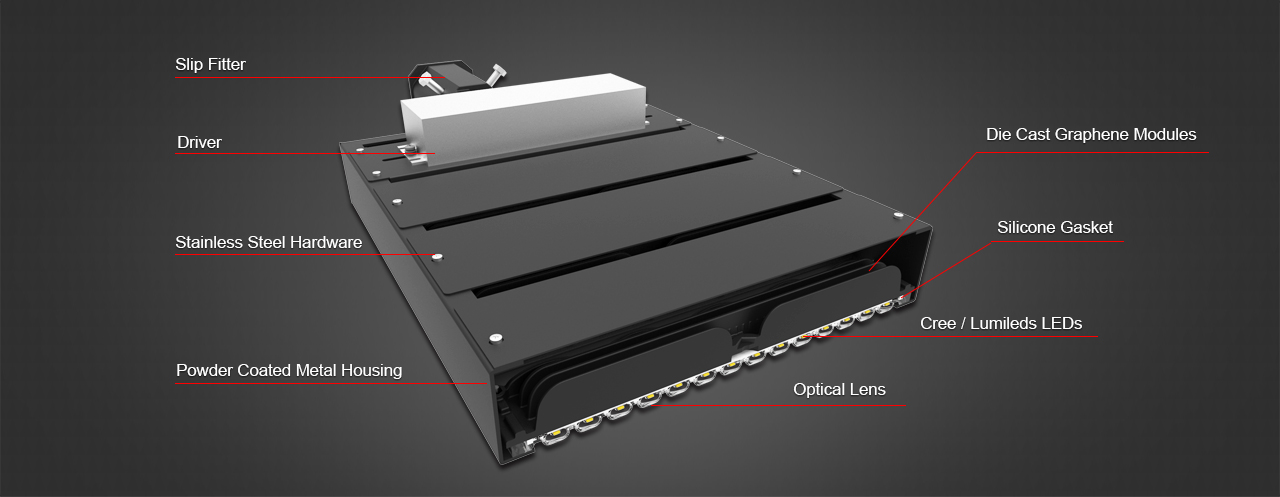

The radiator adopts Graphene composite module layout. Natural air cooling and heat dissipation, the heat between each module does not affect each other, the driving power is placed in the internal bracket, the heat dissipation effect is good, the lighting protection is as high as 12KV, IP66 waterproof rating.
Adopt high-brightness SMD3030 as the light source, choose imported high-brightness chip.The light source is in close contact with the housing.
The housing adopts Graphene composite heat dissipation technology, surface anodize oxidation treatment, the whole luminaire conforms to the IP66 standard.The lamp can be used in high humidity environment
LitePro Series Shoebox Lighting Fixture ——Catalog.pdf
|
