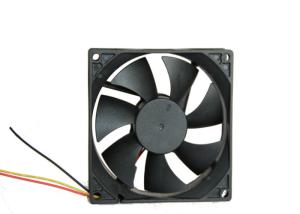

Auto Cooling 12V DC Axial Fans , Computer Box Brushless Cooling Fan Sleeve Bearing

Categories	DC Axial Fans
Brand Name:	MX / OEM / ODM
Model Number:	MX9225AB(S/Y)U1
Certification:	CE / ROHS
Place of Origin:	China
MOQ:	500pcs
Price:	USD 3.5 - USD 5 or Negotiable
Payment Terms:	T/T / PAYPAL
Supply Ability:	40,000pcs per month
Delivery Time:	14 working days after received payment
Packaging Details:	Carton
Product Name:	MX9225AB(S/Y)U1
Voltage:	12V - 48V ( Customizable )
Bearing Type:	Ball Bearing / Hydraulic Bearing / Sleeve Bearing
Color:	Black
Speed:	2000 - 4000RPM ( Customizable )
Air Flow:	30.96 - 63.73 CFM ( Customizable )

Contact Now

Add to Cart

Company Info.

Shenzhen Topfan Technology Development Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Auto Cooling 12V DC Axial Fans , Computer Box Brushless Cooling Fan Sleeve Bearing

12V Auto Cooling DC Axial Fans , Computer Box brushless cooling fan Sleeve Bearing

1 . Description :

92mm x 92mm x 25mm DC Axial Fan , DC Burshless Fan , Computer Fan , DC Cooling Fan

2 . Material :

Frame : Plastic ( UL94V-0 )
Impeller : Plastic ( UL94V-0 )
Leadwire : UL1007 AWG#26 or Equivalent ( + ) : Red ( - ) : Black

3 . Protection :

Motor : Impedance Protected and Reverse Polarity Protected

4 . Expected Life :

Ball bearing : 50 , 000 hours ( 40℃ )
Hydraulic Bearing : 40 , 000 hours ( 40℃ )
Sleeve Bearing : 30 , 000 hours ( 40℃ )

5 . Allowable Ambient Temperature Range :

Operating Temperature : -10℃~+70℃
Storage Temperature : -40℃~+70℃
Non Condensing Environment

6 . Insulation Resistance :

Not less than 10M ohm between housing and positive end of lead wire ( red ) at 500V DC .

7 . Dielectric Strength :

No damage should at 500 VAC for 60 second , measured with 5mA trip current between
housing and positive end of lead wire .

8 . Locked Rotor Protection :

No damage shall be found after 72 hours continuously at condition of rotation locked ,
Restarting is automatic as soon as constraint to running has been released

9 . Polarity Protection :

No damage shall be found with reverse connection 5 minute at rated voltage . After returning
to normal polarity , all function shall be normal

10 . Specification :

Model	Rated voltage	Operating Voltage Range	Current Amp	Rated Input Power	Speed	Max Air Flow	Max Static Pressure	Noise Level	Weight
Model	( v )	( v )	( Amp )	(Watt)	(rpm)	(CFM)	(Inch-H2O)	(dB-A)	(g)
MX9225AB(S/Y)U1	12	7.0 to 13.8	0.60	7.20	4000	63.73	0.22	47	78
MX9225AB(S/Y)H1	12	7.0 to 13.8	0.50	6.00	3500	54.98	0.18	41	78
MX9225AB(S/Y)M1	12	7.0 to 13.8	0.40	4.80	3000	46.23	0.13	37	78
MX9225AB(S/Y)L1	12	7.0 to 13.8	0.30	3.60	2500	37.93	0.09	31	78
MX9225AB(S/Y)D1	12	7.0 to 13.8	0.20	2.40	2000	30.96	0.06	25	78
MX9225AB(S/Y)U2	24	14.0 to 27.6	0.50	12.00	4000	63.73	0.22	47	78
MX9225AB(S/Y)H2	24	14.0 to 27.6	0.40	9.60	3500	54.98	0.18	41	78
MX9225AB(S/Y)M2	24	14.0 to 27.6	0.30	7.20	3000	46.23	0.13	37	78
MX9225AB(S/Y)L2	24	14.0 to 27.6	0.20	4.80	2500	37.93	0.09	31	78
MX9225AB(S/Y)D2	24	14.0 to 27.6	0.15	3.60	2000	30.96	0.06	25	78
MX9225AB(S/Y)U4	48	28.0 to 56.0	0.40	19.20	4000	63.73	0.22	47	78
MX9225AB(S/Y)H4	48	28.0 to 56.0	0.25	12.00	3500	54.98	0.18	41	78
MX9225AB(S/Y)M4	48	28.0 to 56.0	0.20	9.60	3000	46.23	0.13	37	78
MX9225AB(S/Y)L4	48	28.0 to 56.0	0.15	7.20	2500	37.93	0.09	31	78

11.Dimensions:

92*92*25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan

12.Curve Performance:

92*92*25mm 12V DC Axial Fan / DC Auto Cooling Fan / DC Brushless Cooling Fan
