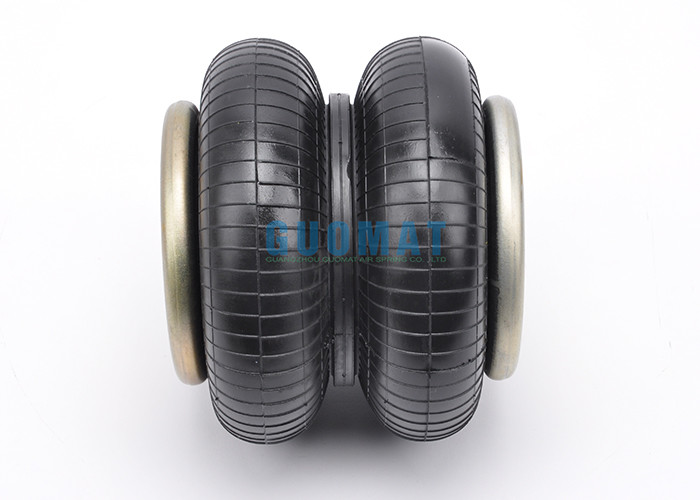

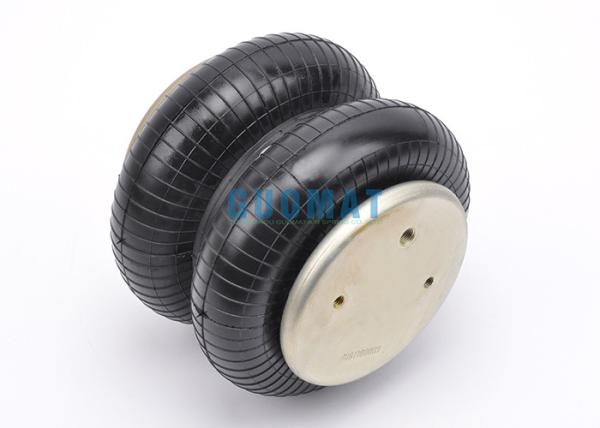

Universal Double Convoluted Air Spring W01-358-6910 Firestone Pickup Truck Air Bags

Universal Double Convoluted Air Spring W01-358-6910 Firestone Pickup Truck Air Bags

Product Description

2B6910 Air Rubber Spring Technical Data

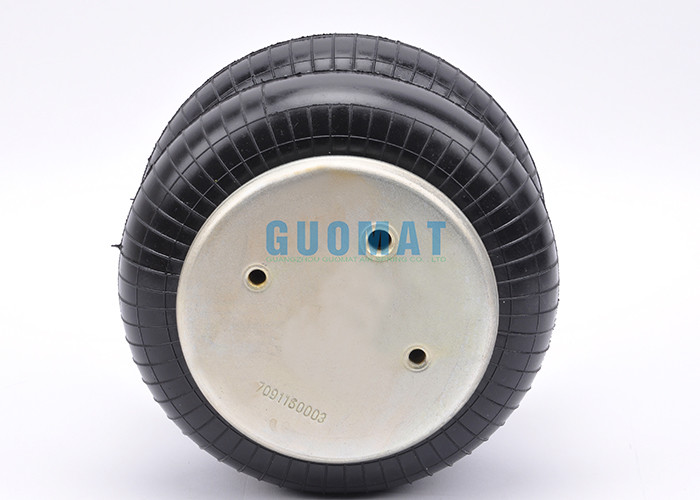

Cover Plate

Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm

Air Inlet / Gas Hole/Air Hole
Air Inlet: 1/4 NPTF

Blind Nut

Screw Center Distance of Top Cover Plate:89mm
Screw Center Distance of Bottom Cover Plate:189mm
Screw and Gas Hole Distance Of Top Cover Plate:44.5mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC

Rubber Bellow
Rubber Bellow Diameter:224mm(max 251mm)
The Working Stroke:MAX 260mm to MIN 75mm
Maximum Height:260mm
Minimum Height:75mm
Compression Height:185mm

About Us

The production process of our company's products is completed under the control of ISO/TS16949:2002 quality system. Through advanced production equipment and testing equipment for production and testing control, professional technical personnel and management, our company's product life has reached more than 4 million times, in comparison with other product experiments, the appearance and performance of our products have been meet customer requirements.

♦Bus with air spring(Airbag)

♦Truck air spring(Airbag)

♦Cab air spring(Airbag)

♦Passenger car air spring(Airbag)

♦Industrial equipment for air spring(Airbag)

Features of industrial air springs

♦The products features low cost, wide use and easy operation.

♦ It achieves long service life, and requires no maintenance and lubrication.

♦This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.

♦ It comes with no friction and soft medium.
