| Categories | Silicon Carbide Wafer |
|---|---|
| Brand Name: | ZMKJ |
| Model Number: | 2inch*0.43mmt |
| Place of Origin: | CHINA |
| MOQ: | 3pcs |
| Price: | by case |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/month |
| Delivery Time: | 2weeks |

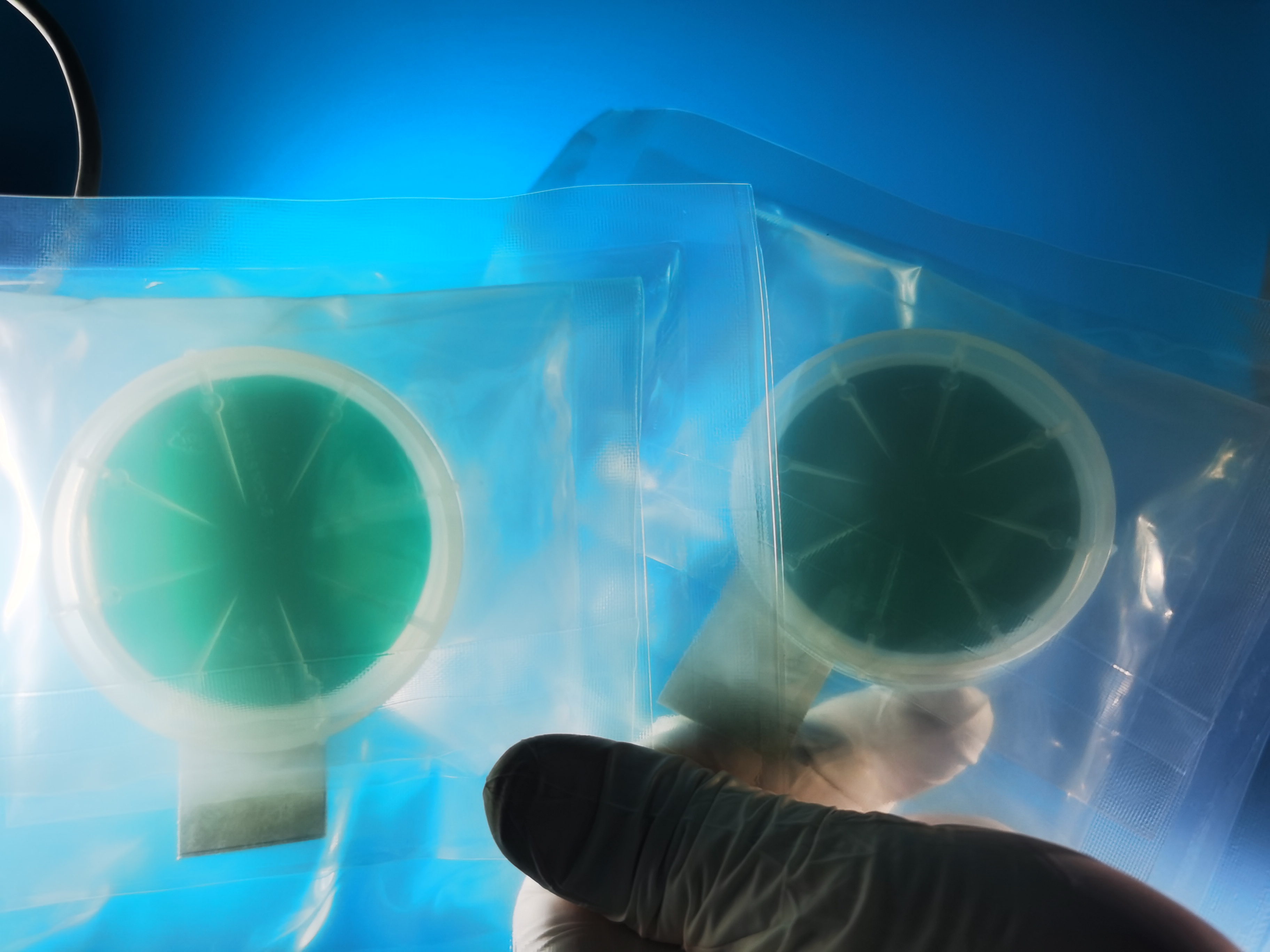

| Packaging Details: | single wafer package in 100-grade cleaning room |
| Material: | SiC single crystal 4H-N type |
| Grade: | Dummy /Production grade/Prime |
| Thicnkss: | 0.43MM |
| Suraface: | polished |
| Application: | bearing test |
| Diameter: | 2inch*0.43mmt |
| color: | Green tea |
| Company Info. |
| SHANGHAI FAMOUS TRADE CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Customized size 2inch/3inch/4inch/6inch 6H-N/4H-SEMI/ 4H-N SIC ingots/High purity 4H-N 4inch 6inch dia 150mm silicon carbide single crystal (sic) substrates wafers/4 inch 4h-N type SIC Substrates 0.35 mm DSP Prime Zero Grade Silicon Carbide Wafer
Silicon carbide (SiC), also known as carborundum, is a semiconductor containing silicon and carbon with chemical formula SiC. SiC is used in semiconductor electronics devices that operate at high temperatures or high voltages, or both.SiC is also one of the important LED components, it is a popular substrate for growing GaN devices, and it also serves as a heat spreader in high-power LEDs.
| Property | 4H-SiC, Single Crystal | 6H-SiC, Single Crystal |
| Lattice Parameters | a=3.076 Å c=10.053 Å | a=3.073 Å c=15.117 Å |
| Stacking Sequence | ABCB | ABCACB |
| Mohs Hardness | ≈9.2 | ≈9.2 |
| Density | 3.21 g/cm3 | 3.21 g/cm3 |
| Therm. Expansion Coefficient | 4-5×10-6/K | 4-5×10-6/K |
| Refraction Index @750nm | no = 2.61 | no = 2.60 |
| Dielectric Constant | c~9.66 | c~9.66 |
| Thermal Conductivity (N-type, 0.02 ohm.cm) | a~4.2 W/cm·K@298K | |
| Thermal Conductivity (Semi-insulating) | a~4.9 W/cm·K@298K | a~4.6 W/cm·K@298K |
| Band-gap | 3.23 eV | 3.02 eV |
| Break-Down Electrical Field | 3-5×106V/cm | 3-5×106V/cm |
| Saturation Drift Velocity | 2.0×105m/s | 2.0×105m/s |
High purity 4inch diameter Silicon Carbide (SiC) Substrate
Specification
4H-N Type / High Purity SiC wafer/ingots 2 inch 4H N-Type SiC wafer/ingots 3 inch 4H N-Type SiC wafer 4 inch 4H N-Type SiC wafer/ingots 6 inch 4H N-Type SiC wafer/ingots |
2 inch 4H Semi-insulating SiC wafer 3 inch 4H Semi-insulating SiC wafer 4 inch 4H Semi-insulating SiC wafer 6 inch 4H Semi-insulating SiC wafer |
6H N-Type SiC wafer 2 inch 6H N-Type SiC wafer/ingot | Customzied size for 2-6inch |
About ZMKJ Company
ZMKJ can provides high quality single crystal SiC wafer ( Silicon
Carbide ) to electronic and optoelectronic industry . SiC wafer is
a next generation semiconductor material , with unique electrical
properties and excellent thermal properties , compared to silicon
wafer and GaAs wafer , SiC wafer is more suitable for high
temperature and high power device application . SiC wafer can be
supplied in diameter 2-6 inch , both 4H and 6H SiC , N-type ,
Nitrogen doped , and semi-insulating type available . Please
contact us for more product information .
Our Relation Products
Sapphire wafer＆ lens/ LiTaO3 Crystal/ SiC wafers/ LaAlO3 /
SrTiO3/wafers/ Ruby Ball
FAQ
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc.
(2) it is fine If you have your own express account ,If not,we could help you ship them and
Freight is in accordance with the actual settlement.
Q: How to pay?
A: T/T 100% deposit before delivery.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 1pcs. if 2-5pcs it's better.
(2) For customized commen products, the MOQ is 10pcs up.
Q: What's the delivery time?
A: (1) For the standard products
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.
Q: Do you have standard products?
A: Our standard products in stock. as like substrates 4inch 0.35mm.
|
