| Categories | High Power Solar Street Light |
|---|---|
| Brand Name: | KCD |
| Model Number: | TR-RL100W |
| Certification: | CE/ROHS/EMC/ISO |
| Place of Origin: | CHINA |
| MOQ: | 500 pieces |
| Price: | US $9.67 - 14.17/ Piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Delivery Time: | 45 work days |
| Packaging Details: | White box/Color box/Neutral packing |
| Product name: | waterproof smd 20w 40w 60w solar led street light |
| Solar panel: | Sun power Mono crystalline solar panel |
| LED Quantity: | 30pcs 5050 |
| Rate Power: | 100W |
| operating time: | 4-6 hours of light charging Smart mode rainy days 5-7 days |
| Luminary EER: | 170lm/w |
| Battery capacity: | 15AH/3.2V |
| Installation Height: | 3-5m |
| Working Temparature: | -20℃~+50℃ |
| Protestion Grade: | IP65 |
| Company Info. |
| Foshan Kaicheng Lighting Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
100w 150w 300w 500w 1000w Modern Housing Smart Outdoor System All In Two LED Solar Power Street Lights With Battery

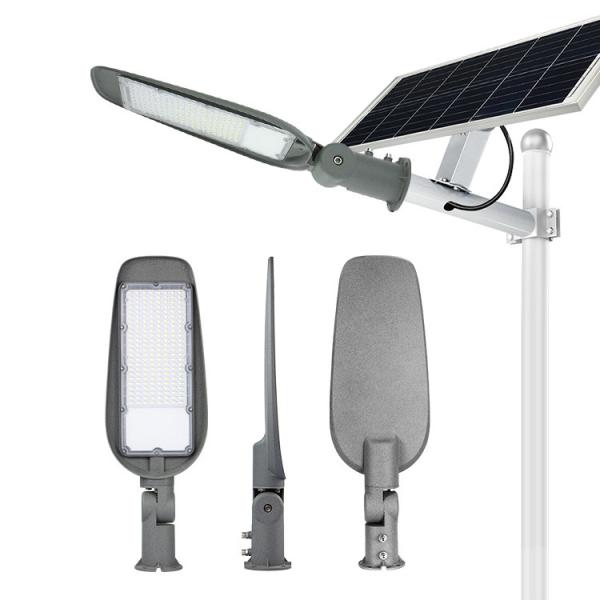

High Power Solar Street Light Description
All in two solar street light has divided the solar lighting system
into two parts.
One is the solar panel, the other one is the complex of the LED,
controller and battery.
It's wireless, so customers just need to connect the solar panel
and the complex, then the solar system will work automatically.
High Power Solar Street Light Description
| Product Name | High Power Solar Street Light | ||
| Model No. | TR-RL 100W | TR-RL 200W | TR-RL 300W |
| Watts | 100W | 200W | 300W |
| Led Chips | 30PCS SMD5050 | 50PCS SMD5050 | 60PCS SMD5050 |
| Lamp Size | 451.5*174.5*70mm | 435.1*163.5*70mm | 504.5*211.5*70mm |
| Solar panel | 22W monocrystalline | 30W monocrystalline | 36W monocrystalline |
| Battery type | LiFeO4 18AH | LiFeO4 30AH | LiFeO4 36AH |
| Suggestion Install height | 3-4m | 4-5m | 5-6m |
| CCT(Color Temperature) | 2700K-6500K | ||
| Material of housing | Die-casting aluminum+Momo solar panel | ||
| Charging time | 5-6h | ||
| Discharging time | 10-12h per day | ||
| Working mode | Light control+remote control | ||
| Applications | street, highway,garden,square,countryside or any other outdoor plac | ||
High Power Solar Street Light Features
1. Integrates LED, controller and lithium battery in the led house;
2. High lumen Bridgelux LED, up to 170lm/w;
3. Long lifespan LiFePo4 lithium battery, recycle time up to 2200s;
4. 3 years free maintenance;
5. MPPT solar charger, tracking efficiency up to 99.5%;
6. Intelligent dimming control and wireless control system, remote
control distance up to 15-20m.
| Model NO. | Size | Power | Luminous Flux |
| KCD TR-RL 100W | 451.5*174.5*70mm | 100W | 170lm/w |
| KCD TR-RL 200W | 435.1*163.5*70mm | 200W | 170lm/w |
| KCD TR-RL 300W | 504.5*211.5*70mm | 100W | 170lm/w |
| For more free sample, please click | CONTACT US > |
High Power Solar Street Light Application
Widely used in branch road, street, and factory roads, parks, road,
mountains, farms and remote, area lighting project, courtyards,
schools, square and other places that need outdoor lighting.
|
