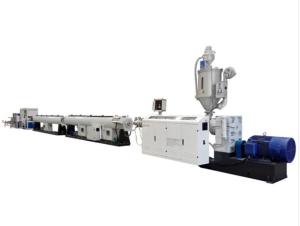

Automatic Twin Screw Pvc Pipe Machine , Pvc Hose Production Line

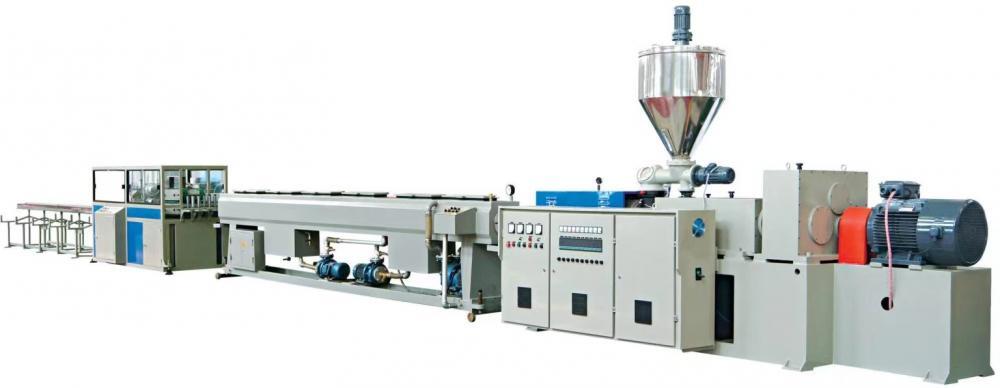

Automatic PVC Pipe Extrusion Machine

PRODUCTION FLOW:

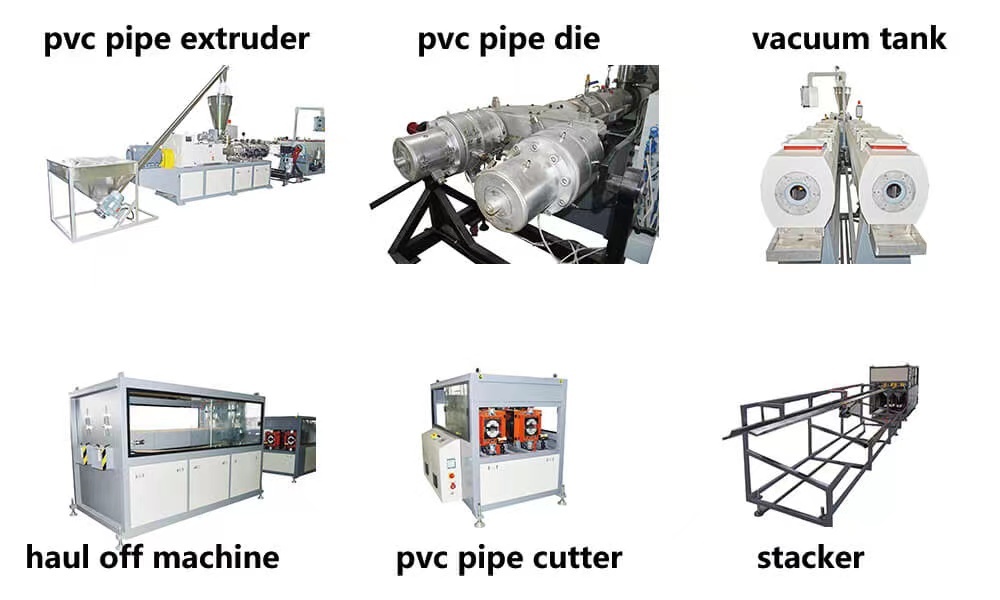

Raw material + additive → Mixing → material conveying → Forced feeding → Conical twin screw extruder → extruding mould → Diameter control unit → Spraying vacuum shaping box → spraying/immersion type cooling water tank → marking machine → caterpillar tractor → cutter → pipe expanding machine → Pipe stacker → pipe inspection & packing

THE FEATURE OF PVC PIPE EXTRUSION MACHINE:

Conical twin-screw extruder: It equipped with forced fixed-quantity material feeding system, automatic temperature control system, vacuum exhaust system and automatic speed control system.

This structure assures accurate controlling for the material temperature, plasticization stability and greatly improving production speed. The main motor is direct convertor or frequency convertor.

PVC extruding molds: Material is high quality 40Cr. Molds surface is dealt with polishing and chrome plating. it adopts the structure of multiple head spiral. The melt has low pressure. Extruding at high quantity, the die head still maintain low temperature.

Vacuum calibrating water tank: The material of body is high hardness and good quality stainless steel board. It is high-pressure resistance, corrosion-resistance and two-stage for large diameter pipe.

Electricity controls water temperature.

The nozzle material is ABS engineering plastic. The frame of the machine can be adjusted three dimensions. The moving from front to back adopt cycloid reducer drive and up & down and left & right adopt screw adjustment.

Water spray cooling tank: The body is made of stainless steel and the shade is transparent soft PVC curtain. Stainless steel float adjusts water level and electricity controls water temperature. The nozzle material is ABS engineering plastic.

Haul-off machine: It adopts frequency conversion approach. Every traction frame transfers with chain which ensures every track moving simultaneously. It is pneumatic flexibility clamping.

Cutting machine: It is planetary cutting for large diameter. The blade takes rotation and cutting part and inserting blade part take revolution. It has angle cutting structure, pneumatic aluminum half clamping and cleaning device.

Control system: We can offer Siemens PLC controlling system which is intelligent controlling system. Also we can offer ordinary controlling system which use Siemens electrical parts, Omron temperature controller. Operation is simple.

TECHNICAL PARAMETER:

COMPANY OVERVIEW

ZHANGJIAGANG LANGBO MACHINERY CO., LTD. is leading company offering quality machinery for a wide range of plastic extrusion and recycling processes from China.

Due to our constant commitment to plastic extrusion and recycling technology, we have emerged as a leading manufacturer of machinery for PVC/PE/PP-R pipe, PE/PP-R composite multi-layer pipe, PVC profile, PVC/PP/PE composite profile, PVC compounding and recycling for PET/PP/PE and other wasted plastics.

Made of quality raw material and using world class technology, our machines are widely appreciated for their salient attributes like efficient and consistent performance, lower power consumption, durability and corrosion resistance. With decades of valuable industry experience, we can deliver quality machinery in both standard and customized specifications.

In the fast-growing competitive market of plastic machinery, we stand out as a growth oriented company that recognizes the needs of the plastic manufacturing industry and provides comprehensive services including machinery operation and maintenance instructions because of we continuously keep an eye on innovation.
We have clientele in both domestic and international markets, and we serve them with unconditional support. Our active research and development enables us to deliver solutions for specific extrusion and recycling needs of clients and scaling newer heights in the plastic industry.
