Programmable Copper Reactor Foil Coil Winder Automatic

Programmable Reactor Foil Coil Winder Automatic Copper Foil Winding Machine


Description of copper foil winding machine BRJ300-2-2


Automatic copper foil winding machine BRJ300-2-2 is a professional winding equipment for winding conductor foil coils. This kind of coils can be served as reactor coils and other similar products. The copper foil winding machine is provided with servo motors, PLC, cold welding unit and so on. With cold welding unit, the copper foil winding machine can weld different material together, for example, welding aluminium foil with copper bus bar together. The copper foil winding machine features slow staring, smooth running, high automation, full function and easy operation etc.


Quick detail of copper foil winding machine BRJ300-2-2

  • Winding copper or aluminium foil
  • Foil material ID 500mm
  • Foil material OD 1000mm, maximum
  • Winding speed 35rpm
  • Winding power 5.5kw
  • Automatic cold welding
  • Servo motor driven
  • One year warranty

Main components of copper foil winding machine BRJ300-2-2

  • Main frame
  • Foil decoiler
  • Winding unit
  • Insulation decoiler
  • Edge alignment system
  • Automatic cold welding unit
  • Pneumatic unit
  • Electrical control system

Technical parameters of copper foil winding machine BRJ300-2-2


Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however the foil winding machine can also be manufactured as requested.


Max. Foil Width:300mm
Finished Coil OD. ( excl. Bus bar ):500mm
Finished Coil OD. ( incl. Bus bar ):600mm
Conductor Foil Material:Copper or aluminum
Cu Foil Material Thickness:0.2 ~ 2.0mm
Al Foil Material Thickness:0.3 ~ 3.0mm
Foil Material ID.:Ø 500mm
Foil Material OD.:Ø 1000mm, maximum
Conductor Decoiler Number:2 pcs
Conductor Decoiler Length:350mm
Conductor Decoiler Shaft:Dia. adjustable range: Ø 420 ~ 520mm
Max Coil Weight:700kg
Rectifying Mode:Photoelectric sensing
Cleaning Unit Control Modepneumatic
Insulation Paper Decoiler Number:2 sets
Insulation Paper Coil OD.:Ø 400mm, maximum
Insulation Paper Coil ID.:Ø 76mm
Insulation Decoiler Width350mm
Insulation Paper Decoiler Shaft:Expandable (pneumatic open/close action)
Winding Speed:0 ~ 35 RPM
Winding Power of Servo Motor:5.5kw
Cold Welding Device:1 set
Counting Range:0 ~ 9999.9

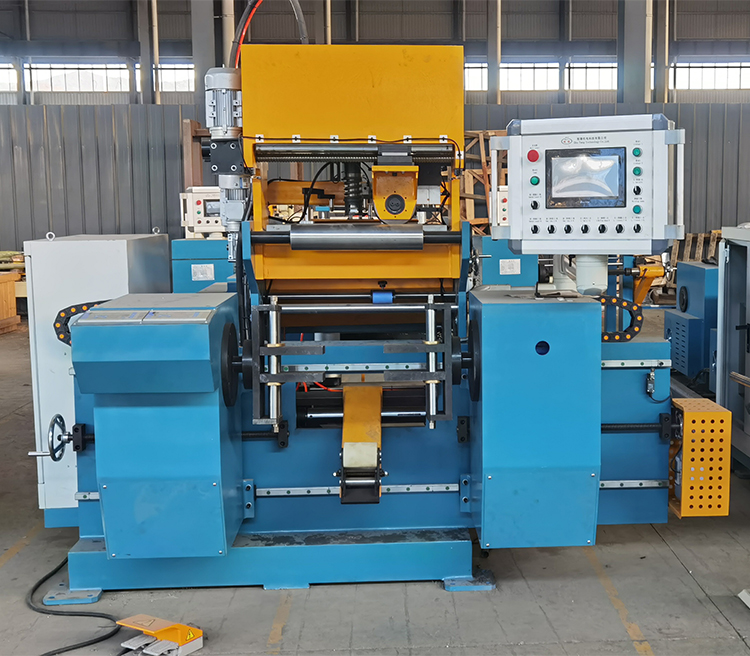

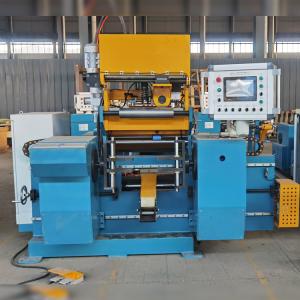

Fig 1: Copper foil winding machine BRJ300-2-2's front view

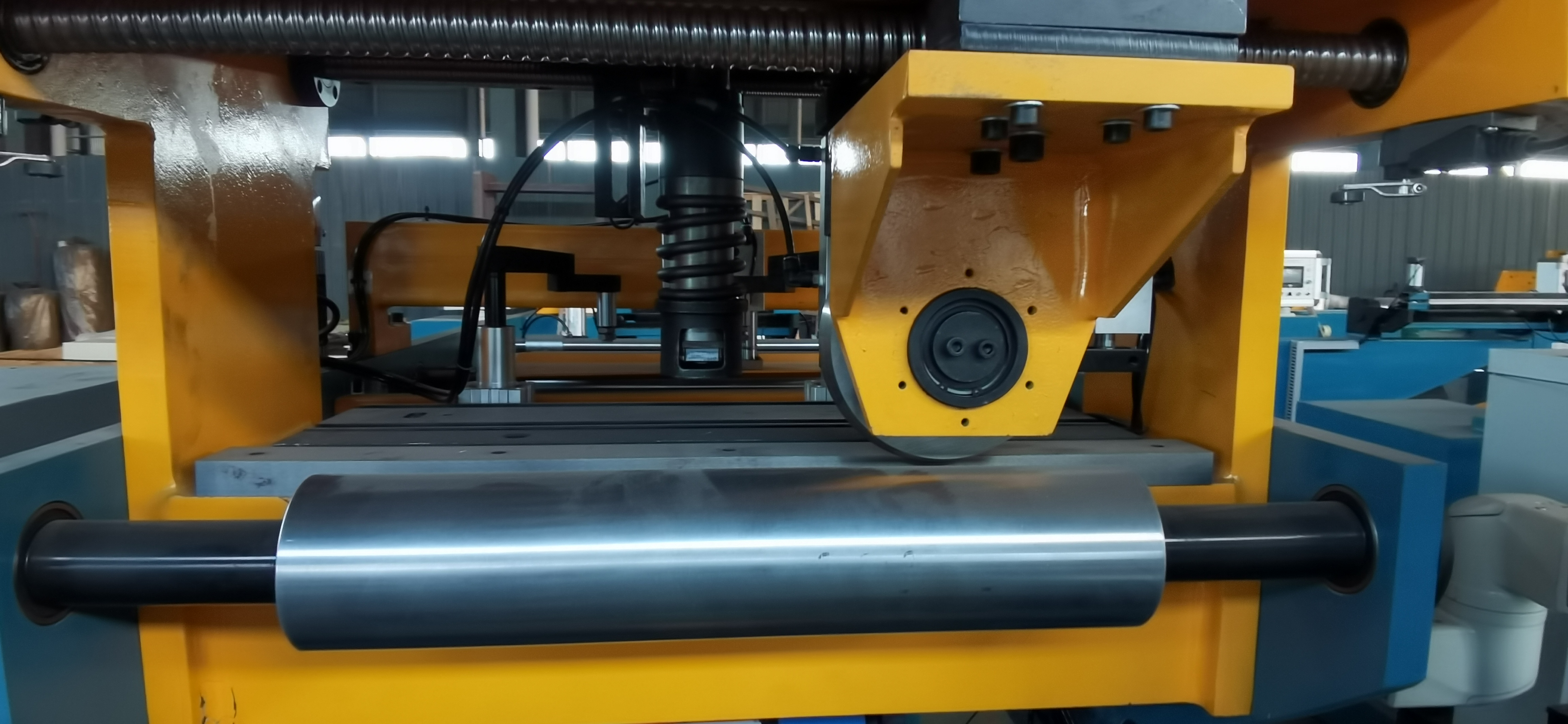

Fig 2: Copper foil winding machine BRJ300-2-2's cutter
